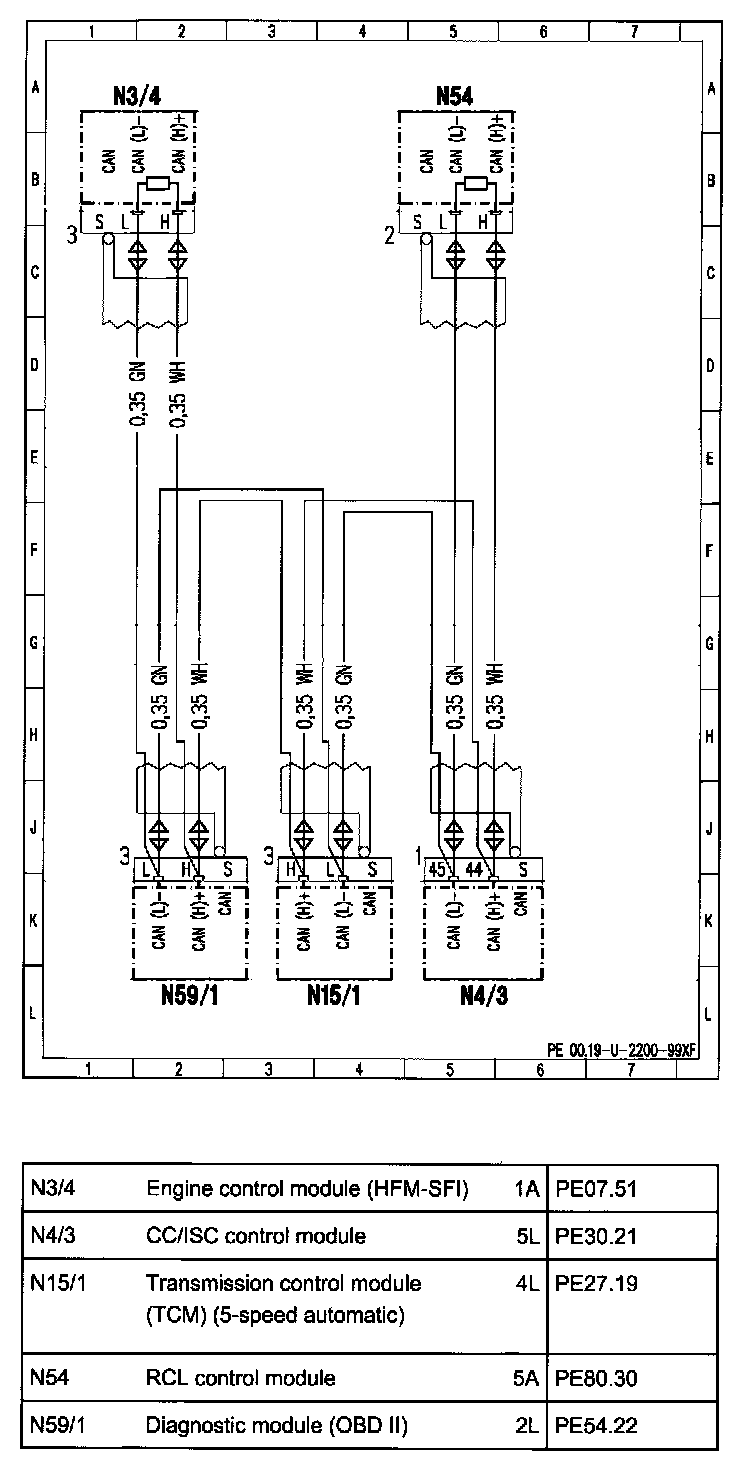

CAN Bus - Engine Compartment PE00.19-U-2200XF
CAN Bus - Engine Compartment PE00.19-U-2200XF
PE00.19-U-2200XF - Engine 104 HFM With AT 5:
