Component Locations

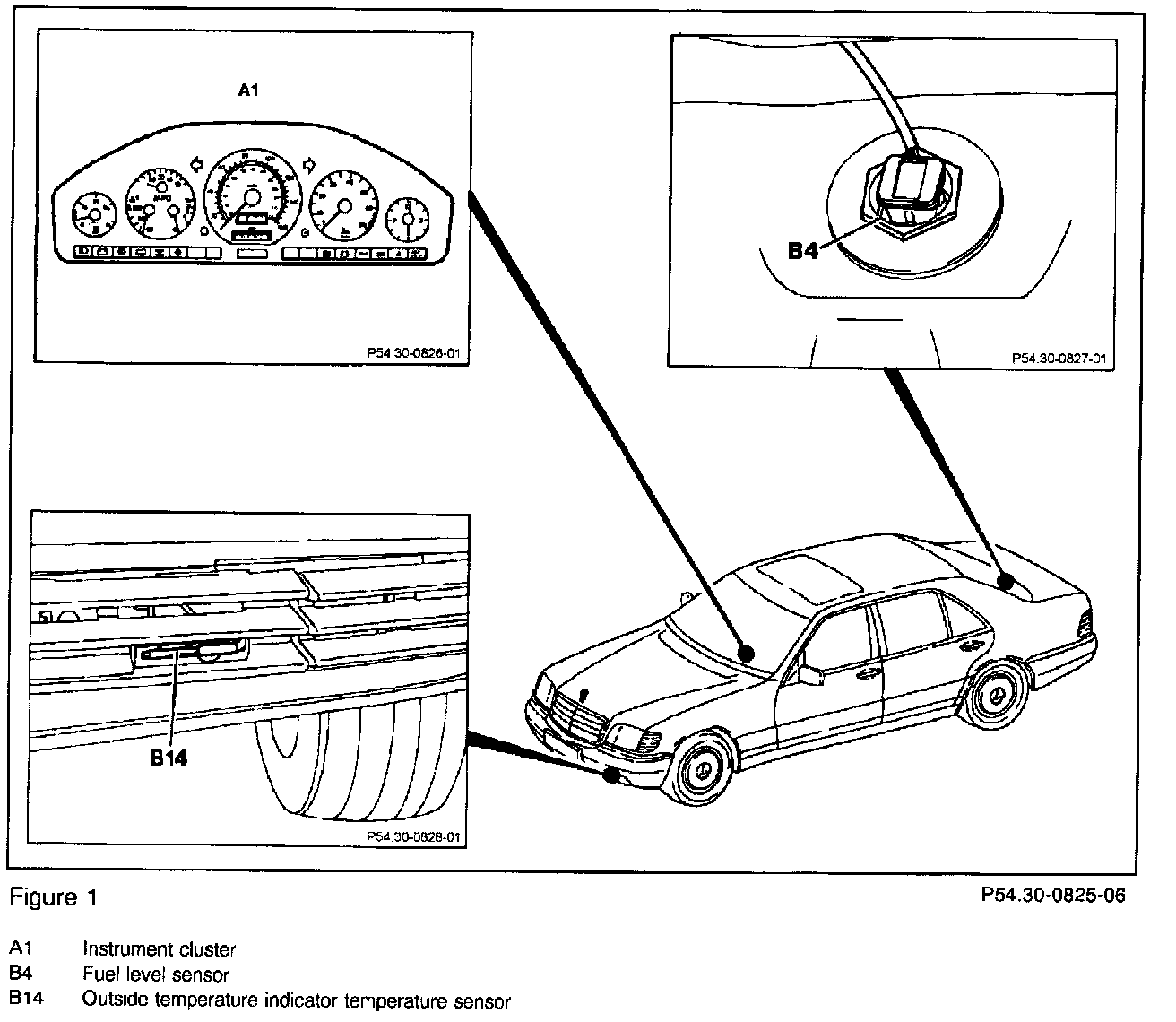

Figure 1:

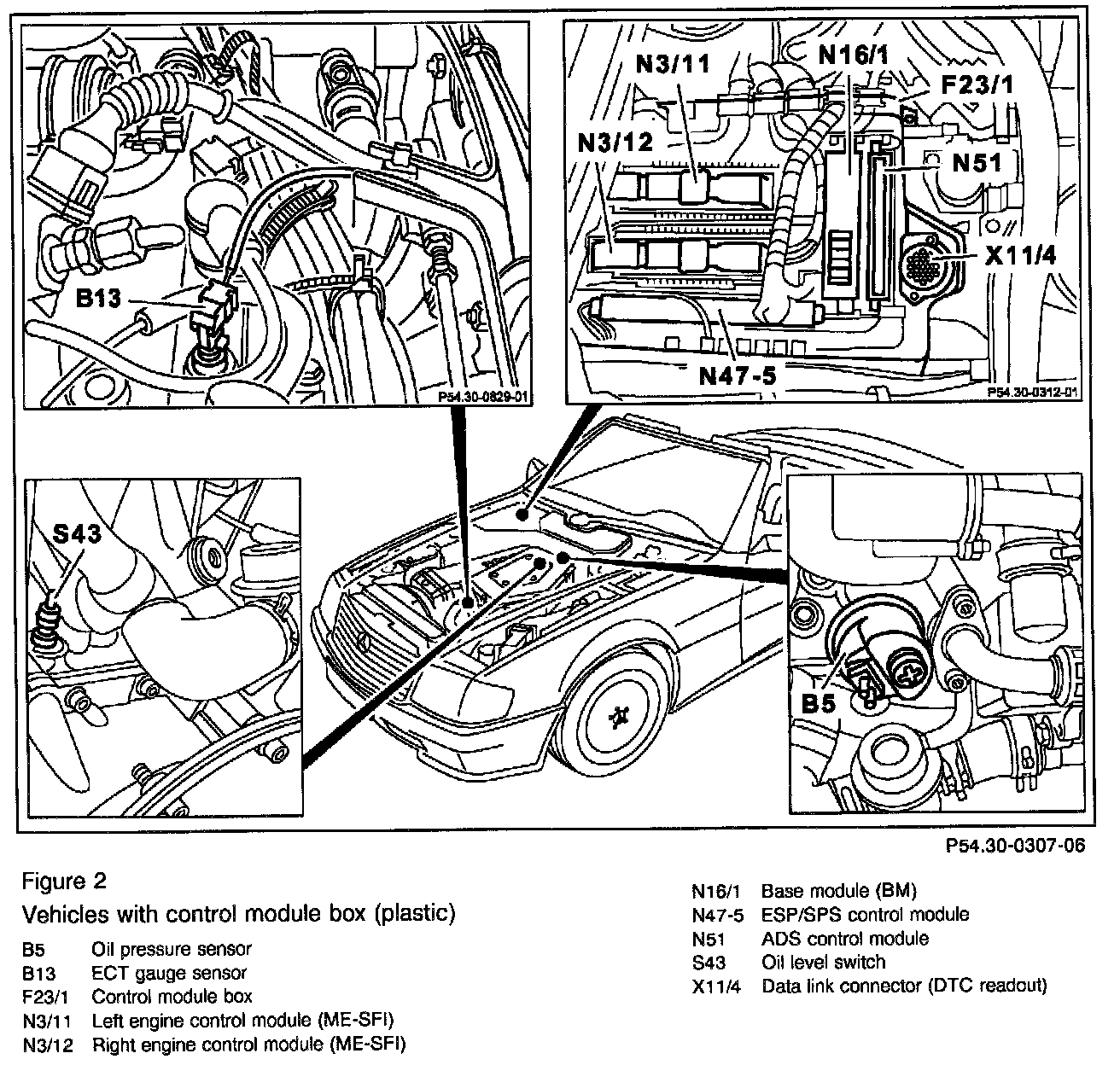

Figure 2 (Vehicles With Control Module Box - Plastic):

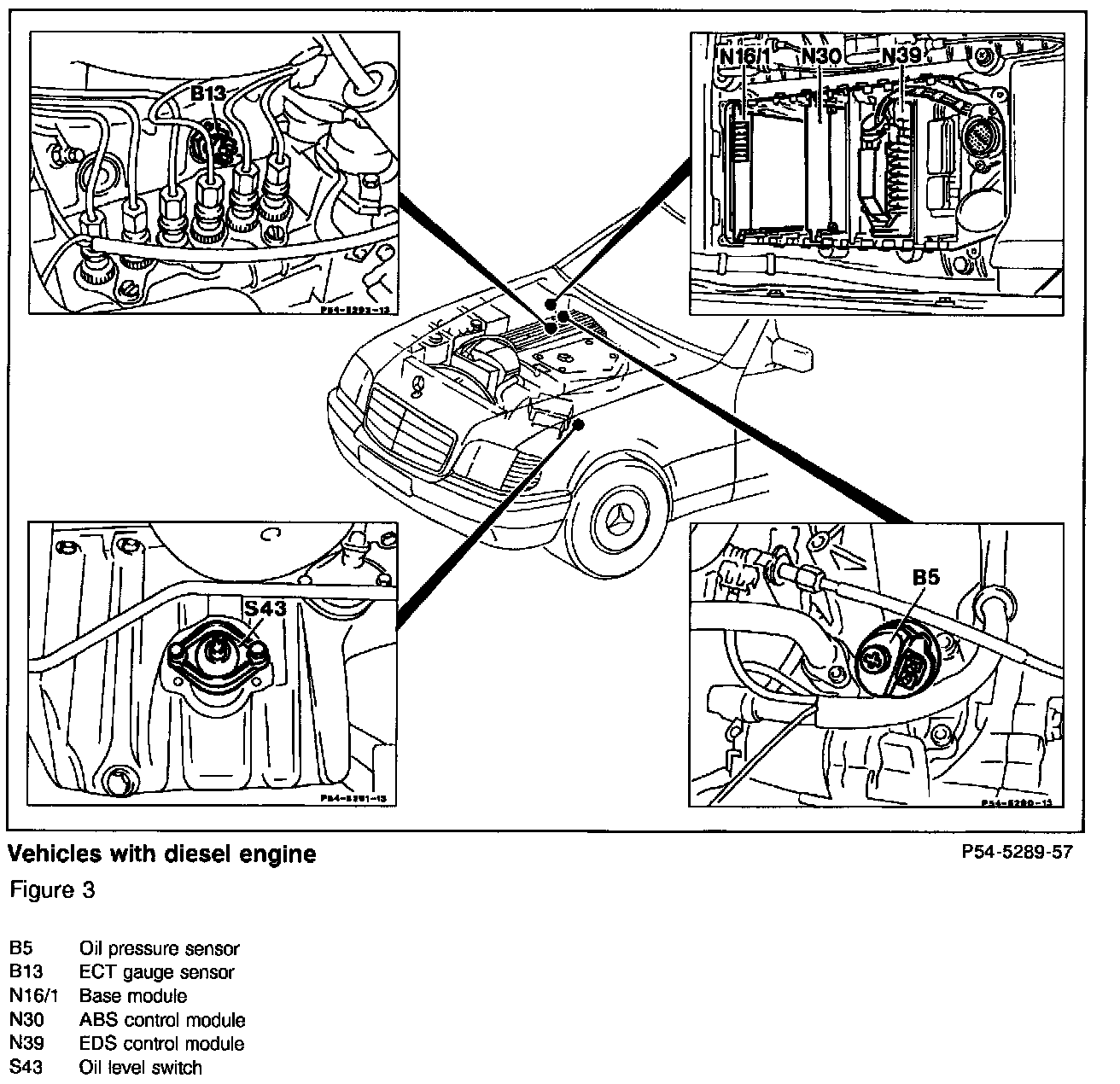

Figure 3 (Vehicles With Diesel Engine):
