Remove/Install Side Air Nozzle

Preliminary work:
Cover for loudspeaker removed.

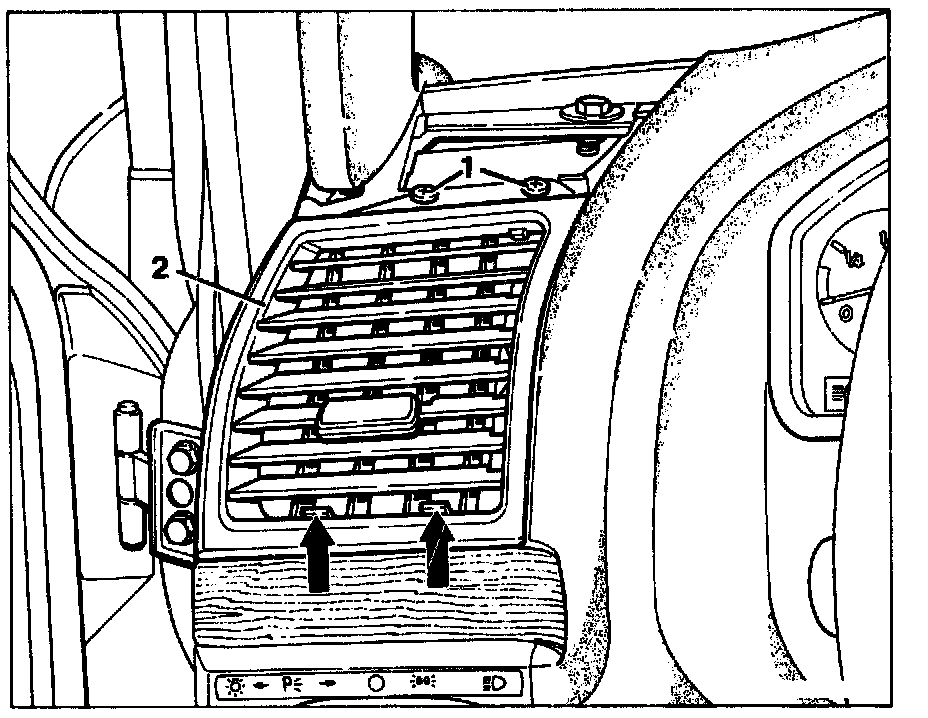

Screw (1)
screw out (2 each).

Catches (arrows)
push up.

Air nozzle (2)
pull out.

Air nozzle (2)
insert into air duct and push in until catches (arrows) snap in audibly.

Screw (1)
screw in.

Cover for loudspeaker
install.
