Remove/Install Center Air Nozzle

Preliminary work:
Spectacles compartment removed. Service and Repair

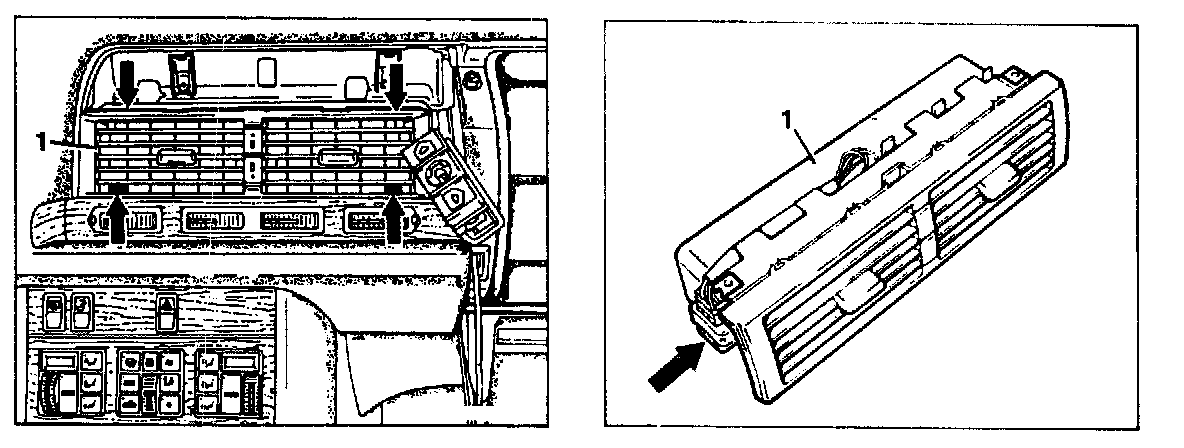

Screw (arrows, top)
screw out.

Catches (arrows)
push up.

Center nozzle (1)
pull out.

Plug connection (arrow)
disconnect.

Center nozzle (1)
store at side.

Plug
plug onto center nozzle.

Center nozzle (1)
install in air duct and push in until catches snap in audibly.

Screws (arrows, top)
screw in.

Continue to reinstall in opposite order.
