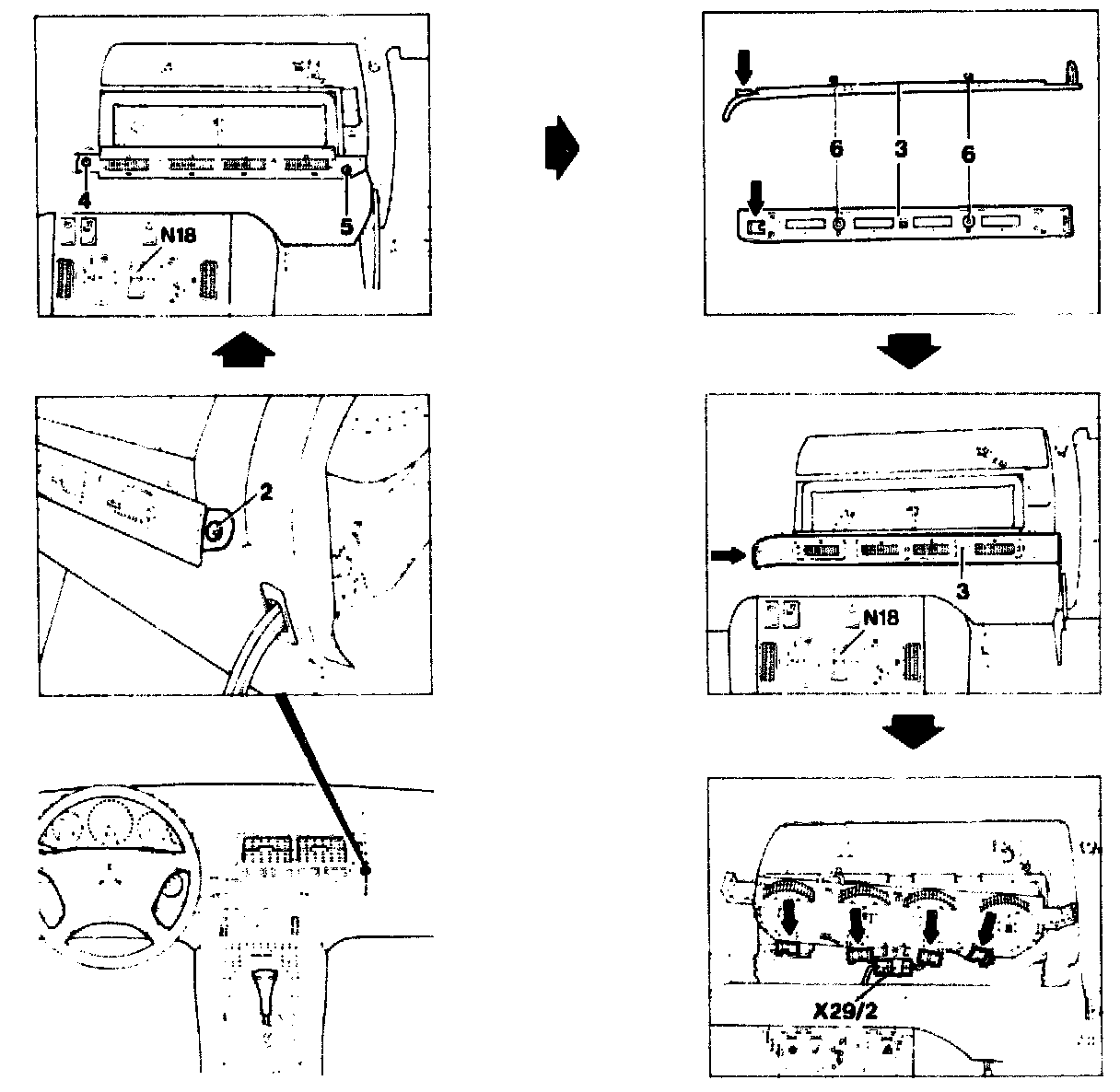

Remove/Install Knurled Wheel Strip

Center air outlet
Remove.

Cap on screw (2)
Unclip.

Screw (2)
Unscrew.

Wood trim strip (3)
Remove by detaching locating pin (6) and disengaging hook (arrow).

Screws (4 and 5)
Unscrew.

Knurled wheel strip
Pull out until the 4 lips (arrows) can be unclipped.

Plug connection (X29/2)
Disconnect and pull out knurled wheel strip.

Bulb sockets
Unclip.

Bulbs
Replace.

Install
In the reverse sequence.
