Radio, Stereo, and Compact Disc
>>
System Diagram
>>
Radio With Sound System
Radio With Sound System

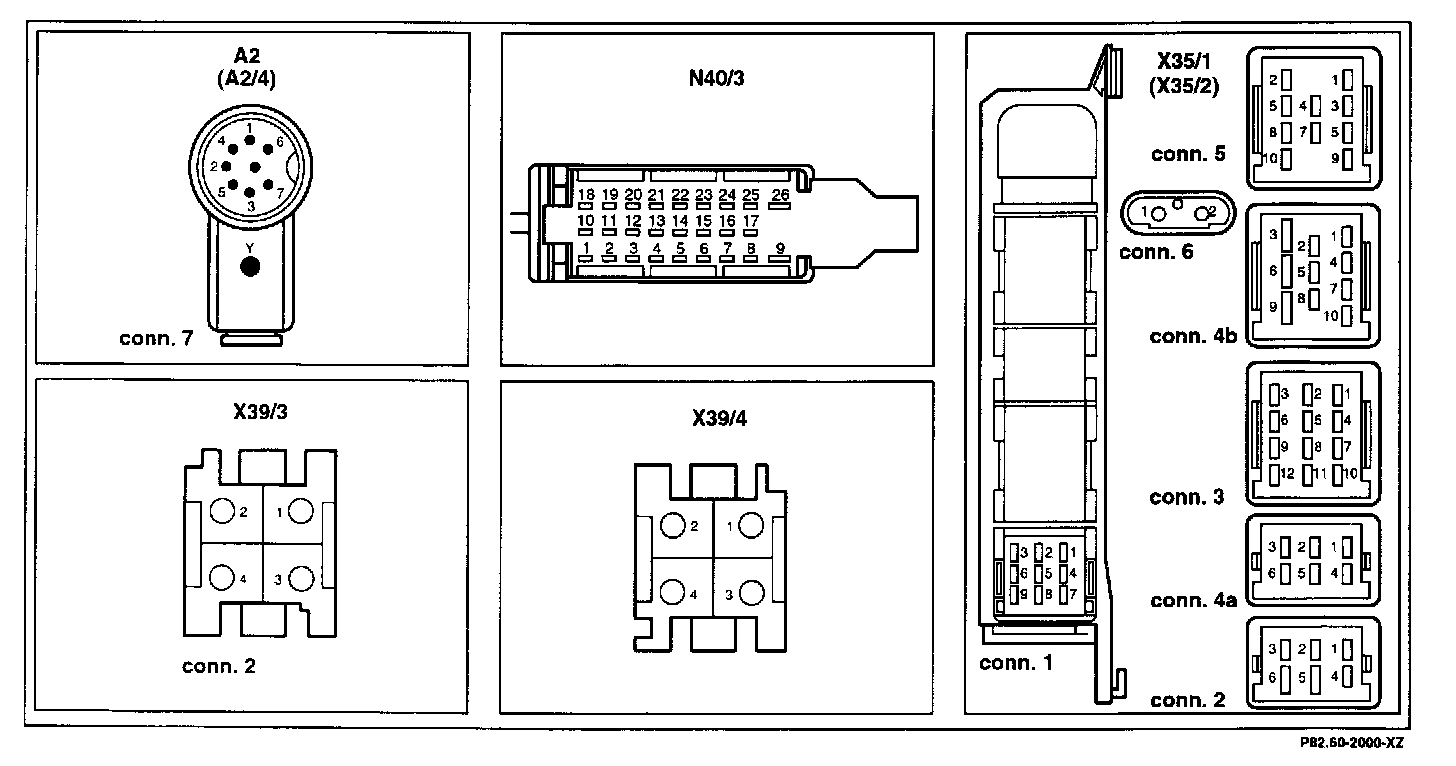

Connector Assignment:

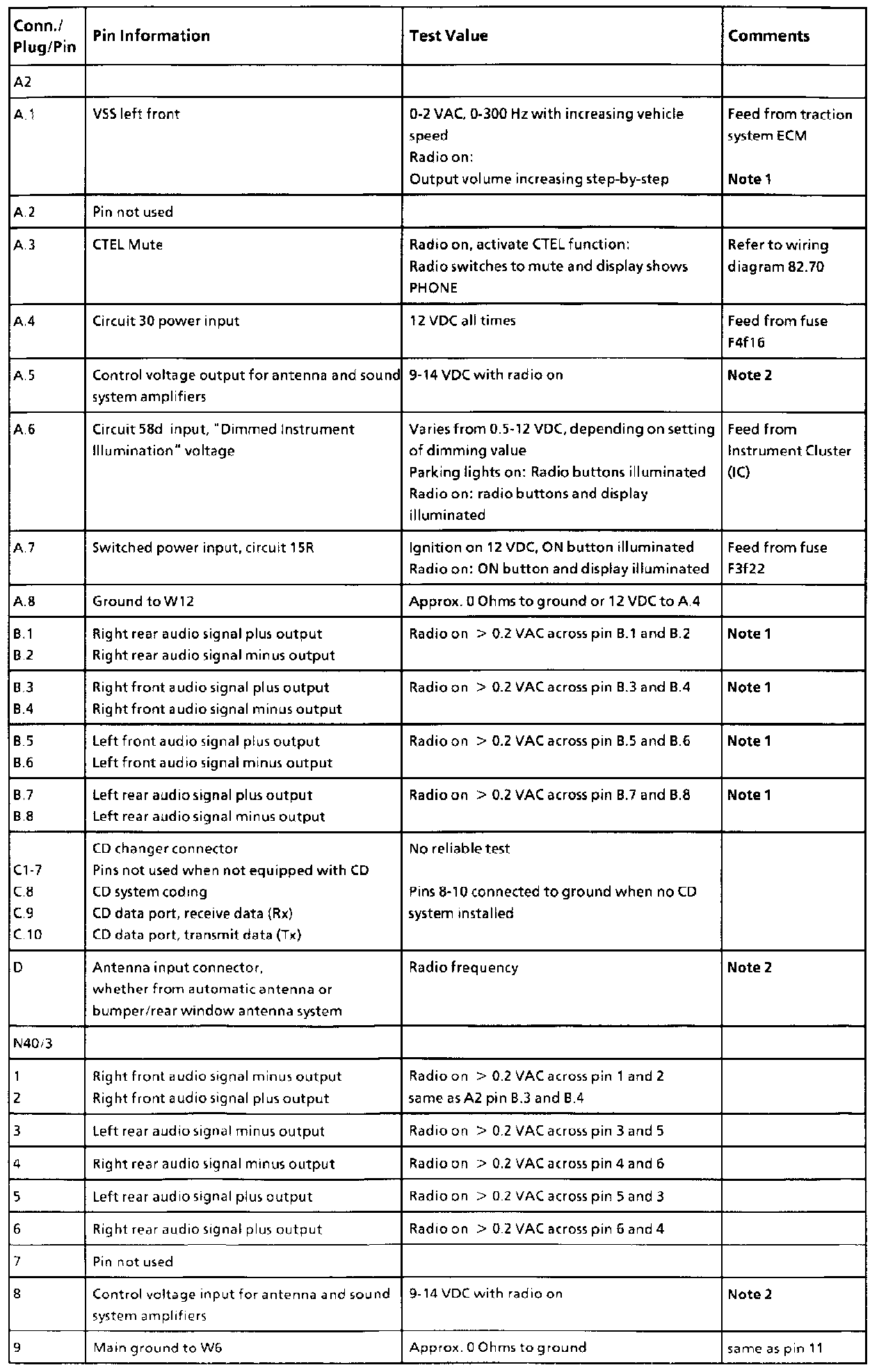

Pin Information, Part 1:

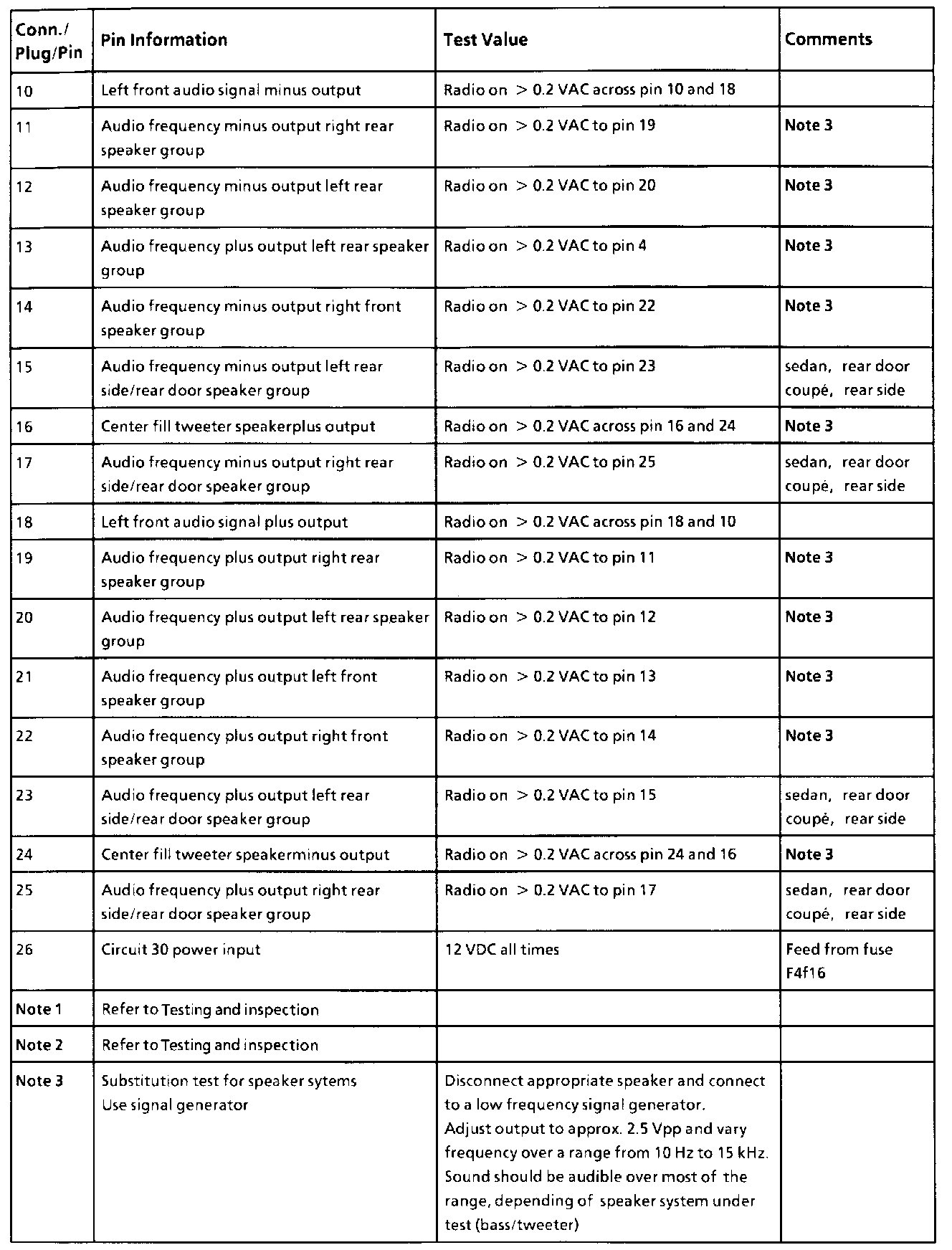

Pin Information, Part 2:
All values measured to ground unless otherwise noted
