Engine 104 HFM With AT 5, ASR

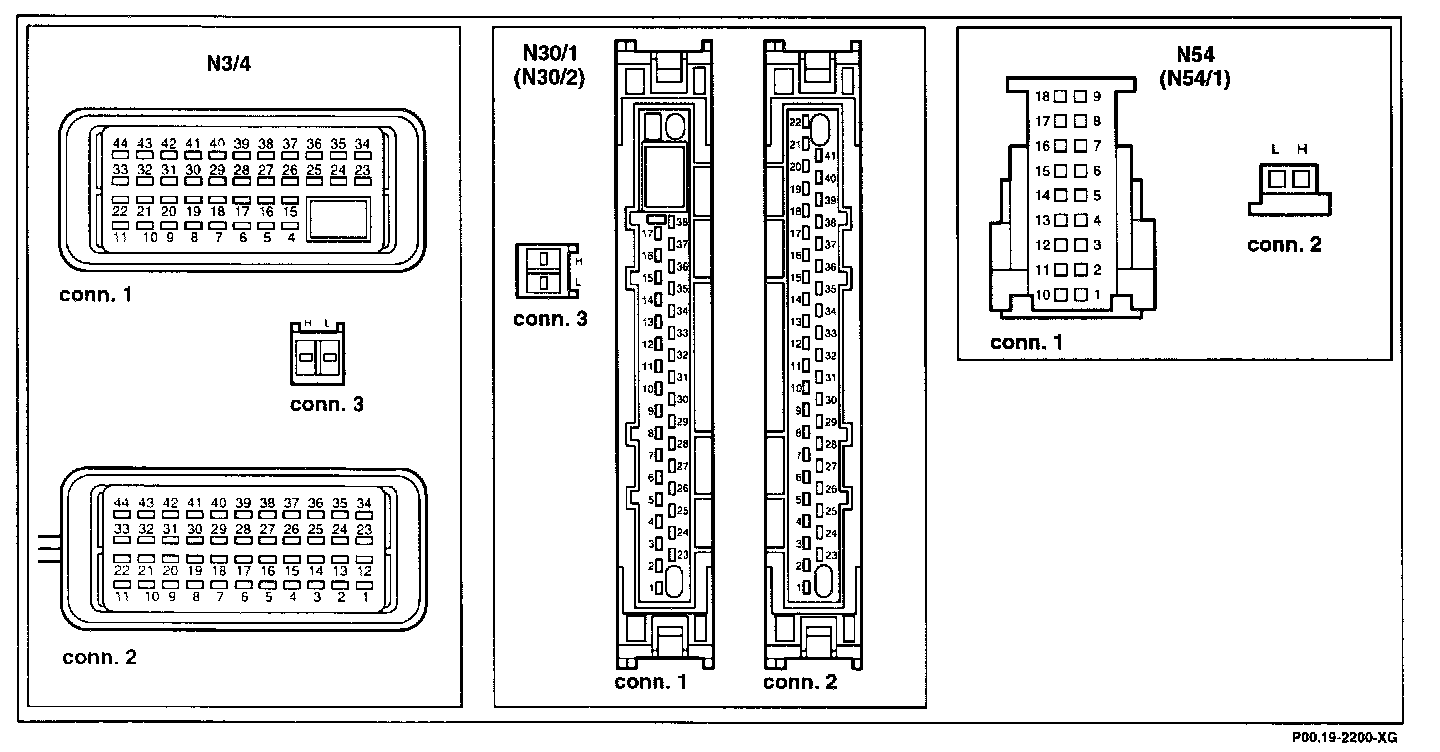

Connector Assignment:

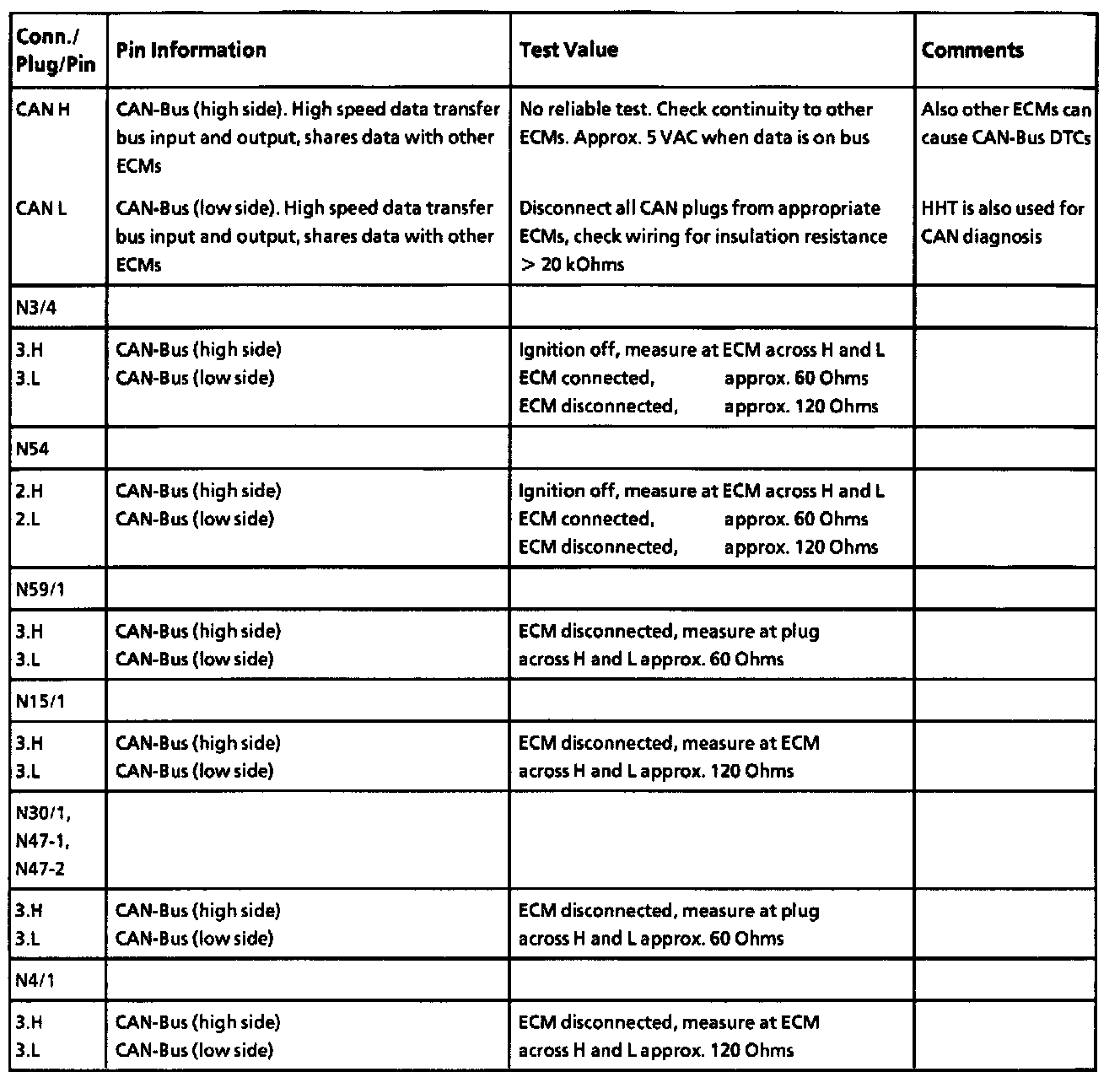

Pin Information:
All values measured to ground unless otherwise noted
