Vehicles With Electronic Traction Support (ETS)

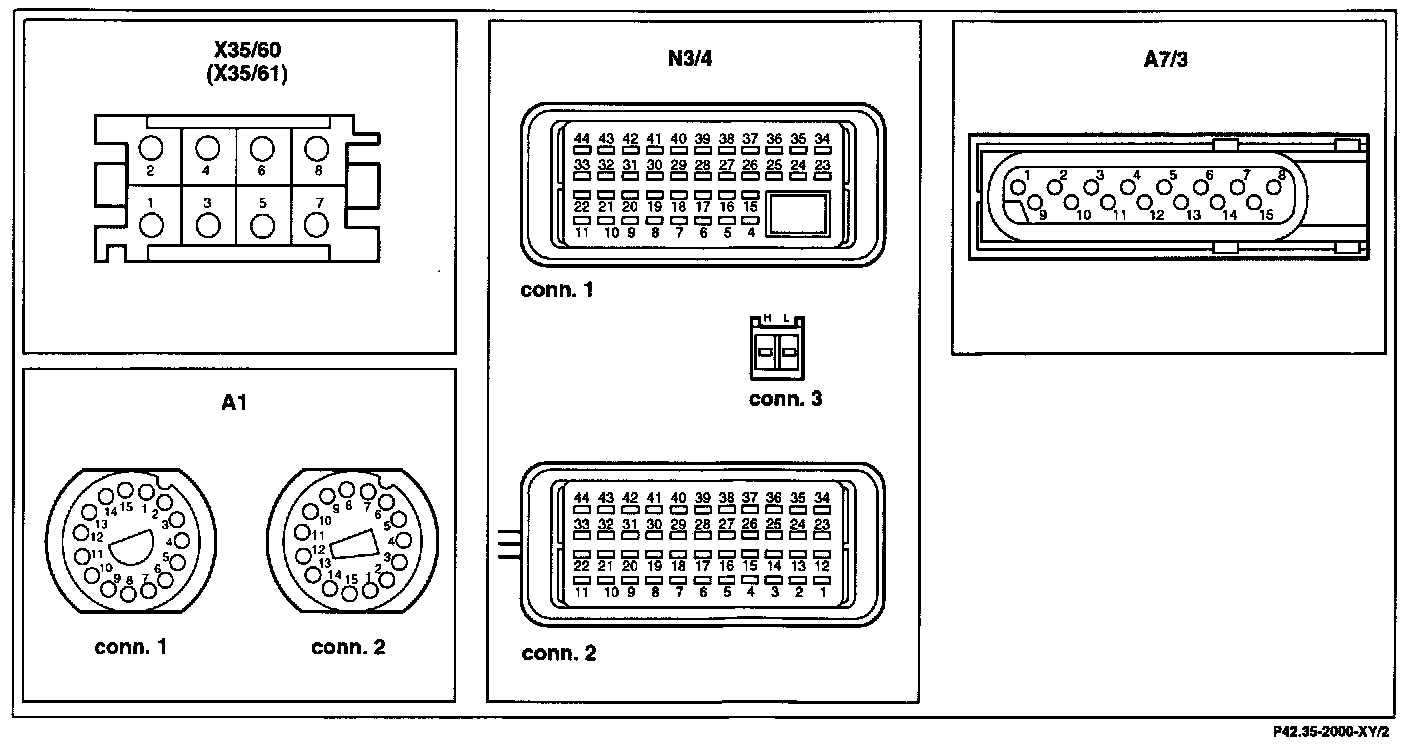

Connector Assignment:

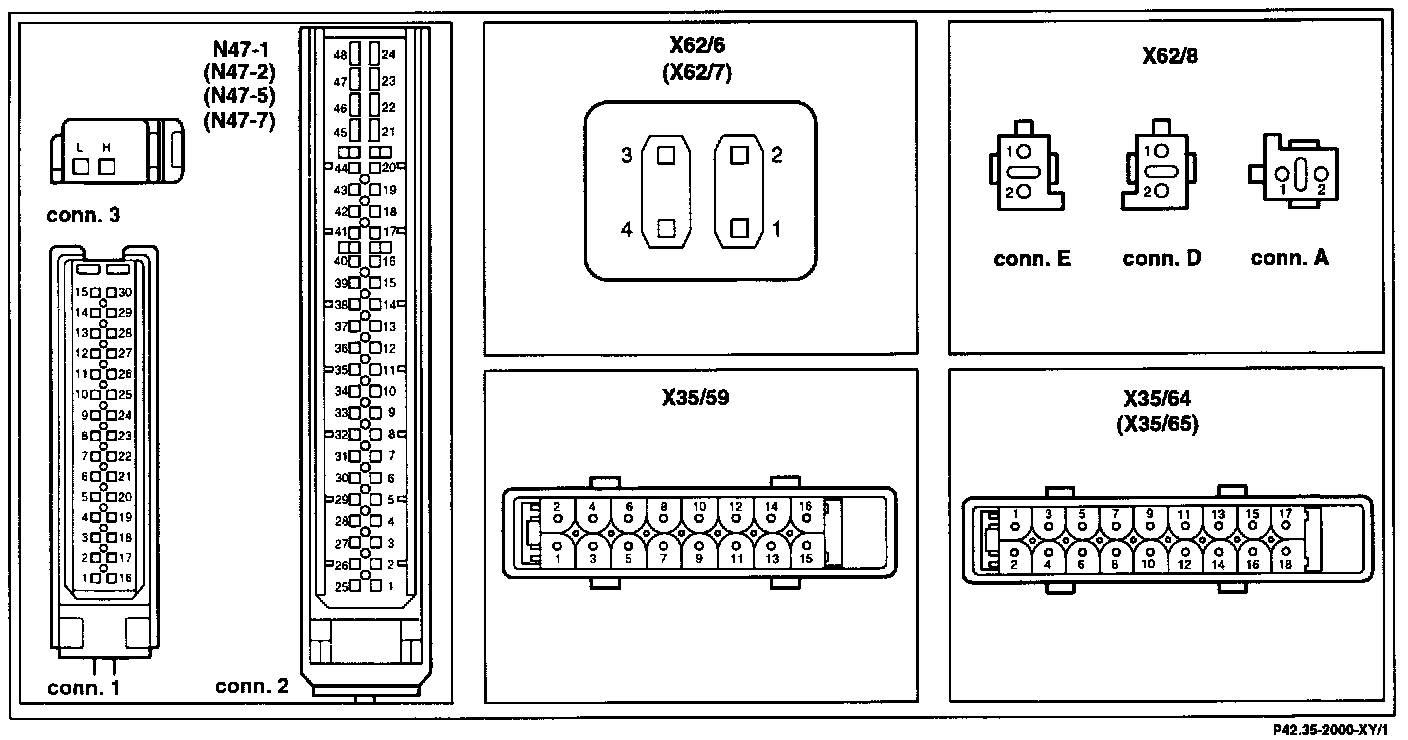

Connector Assignment:

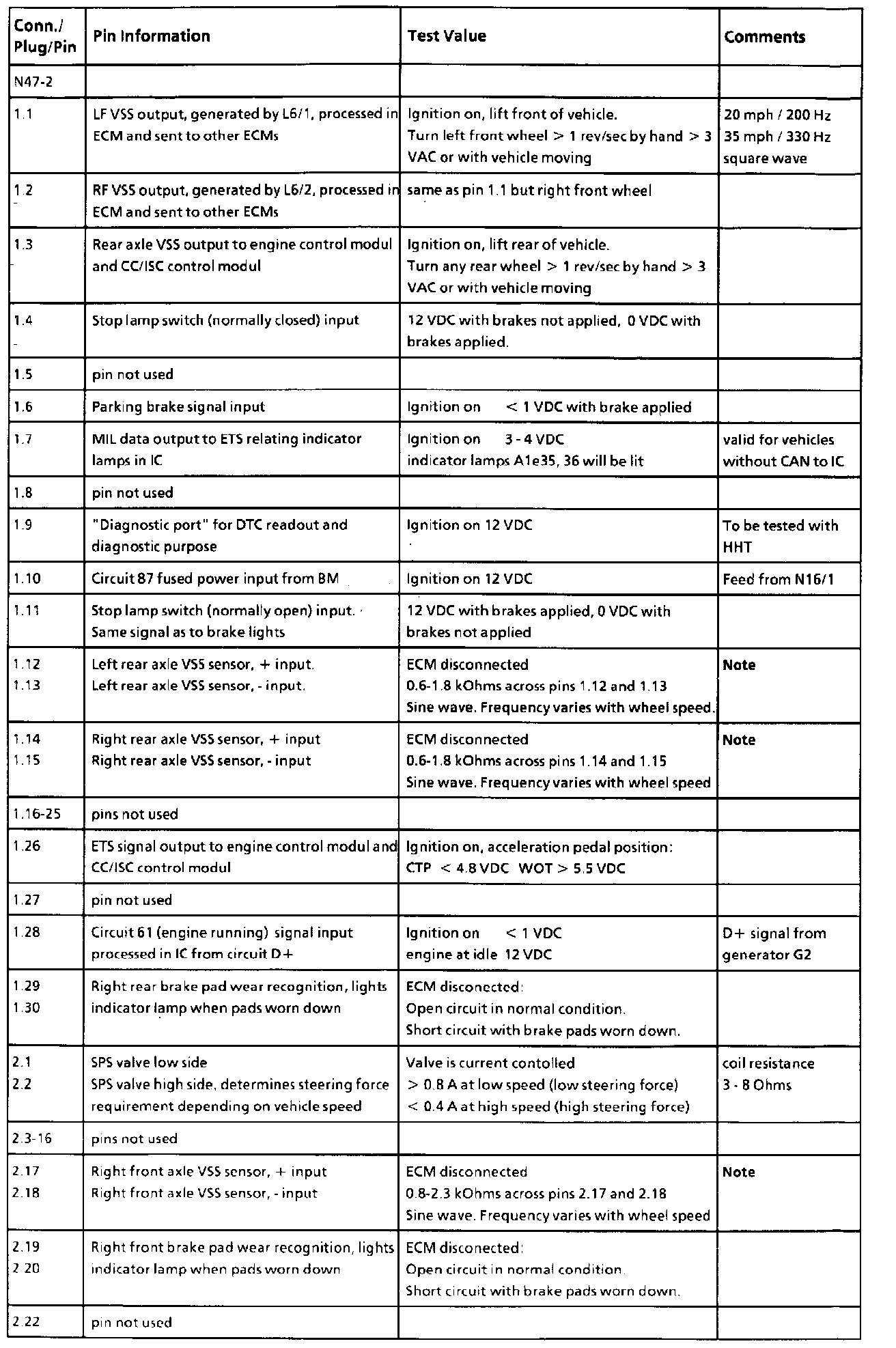

Pin Information, Part 1:

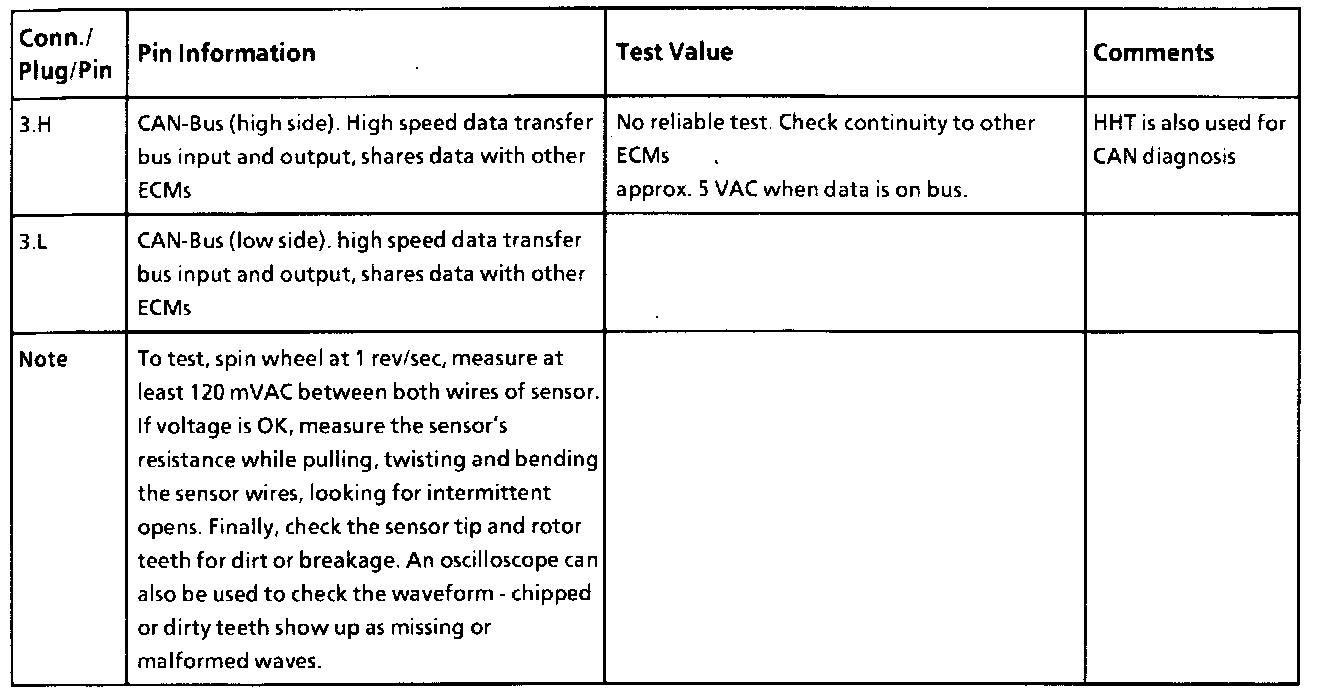

Pin Information, Part 2:

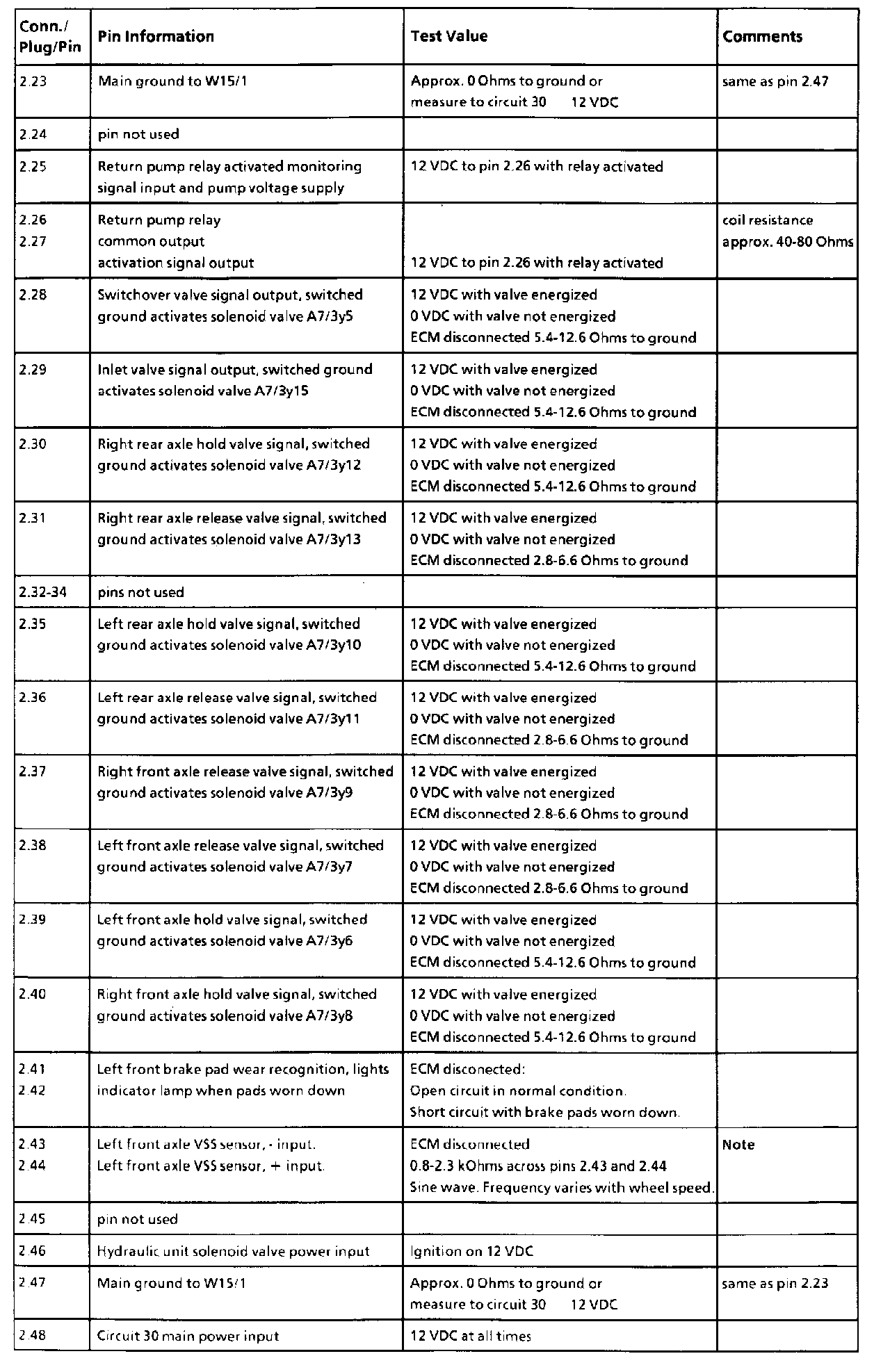

Pin Information, Part 3:

All values measured to ground unless otherwise noted
