Seat Track: Service and Repair

Preliminary work.
Seat cushion on driver's seat and driver's seat backrest removed. Refer to "Replacement of Seat Cushion on Driver's Seat" Service and Repair and "Replacement of Driver's Seat Backrest" Service and Repair





Screw (1) on finisher (2)
screw out.
Electrical cable
unclip from belt buckle on seat frame (arrow).
Screws (2 pieces) on terminal strip (3)
screw out.
Terminal strip (3), pneumatic line (4) and belt lock (5)
remove.
Finisher (2)
remove toward front.
Cover (7)
disengage and remove.
Seat adjuster (8)
reinstall in opposite order.

Removal, Installation

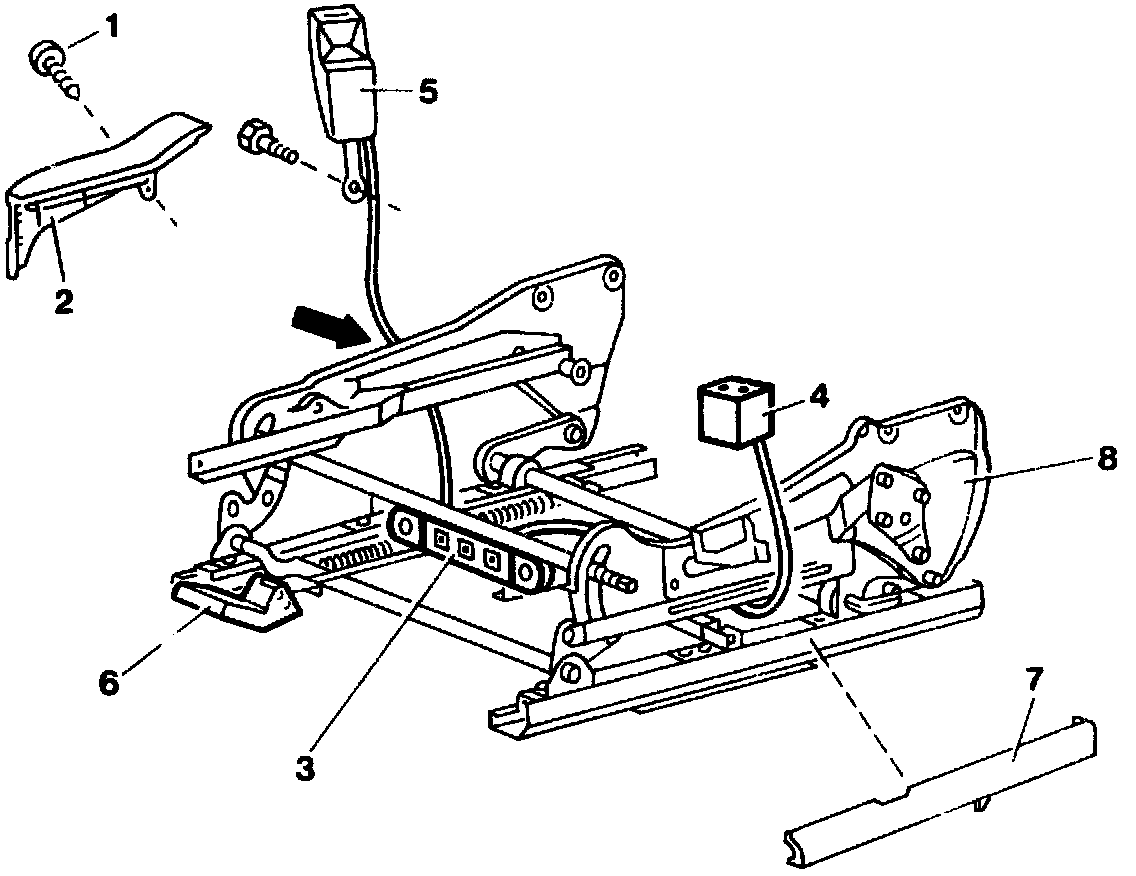

1 Screw out screw (1).

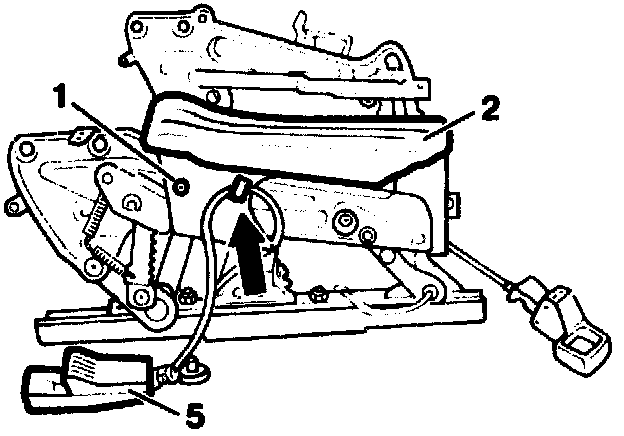

2 Unclip electric cable from belt buckle (5) on seat frame (arrow).

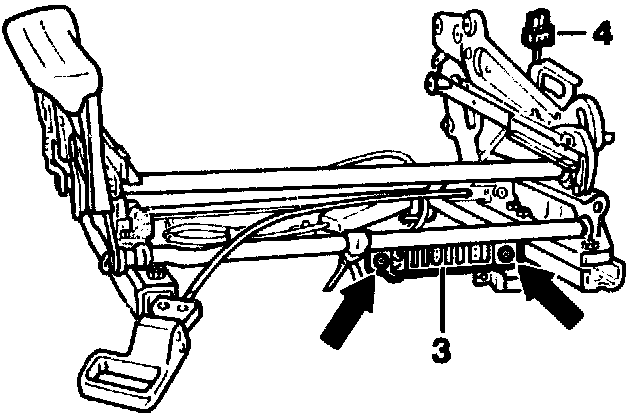

3 Screw out screws (2 each, arrows) on terminal strip (3).
4 Remove terminal strip (3), pneumatic line (4) and belt buckle (5).
5 Remove finisher (2) toward front.





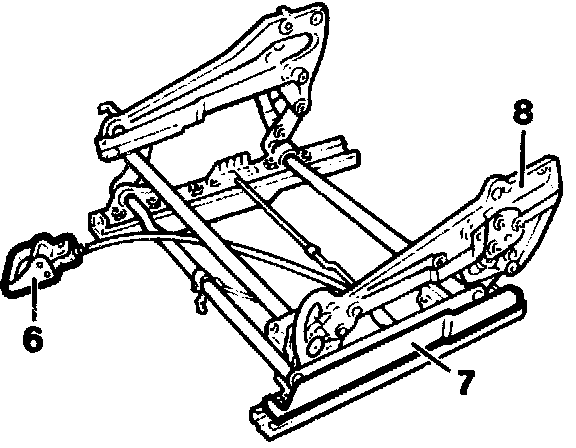

6 Disengage cover (7) and remove.
7 Reinstall seat adjuster (8) in opposite order.
