Replacement of Cloth Apron

Replacement of Cloth Apron on Bottom of Driver's or Front Passenger Seat Backrest

Preliminary work:
Rear panel of driver's or front passenger backrest removed. Refer to "Replacement of Rear Panel on Front Seats Backrest". Service and Repair












Rubber tensioners (arrows) on lower seat cushion frame
detach (2 each).

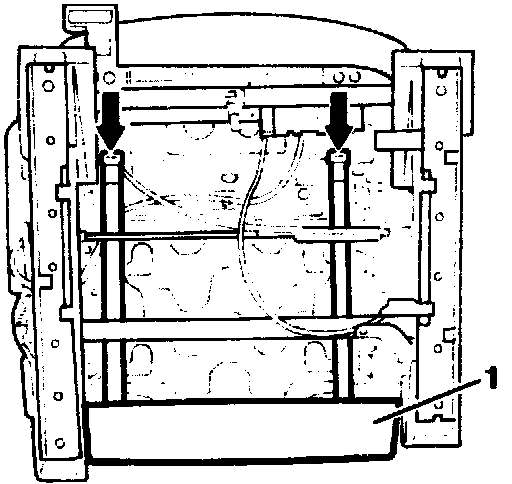

Sheet metal lugs (arrows) on seat backrest frame
bend open.
Cloth apron (1)
remove.
Reinstall
in reverse order.
