Replacement of Lumbar Support on Driver's Seat Backrest

Preliminary work:
Cover on driver's seat backrest removed. Refer to "Replacement of Cover on Driver's Seat Backrest". Service and Repair

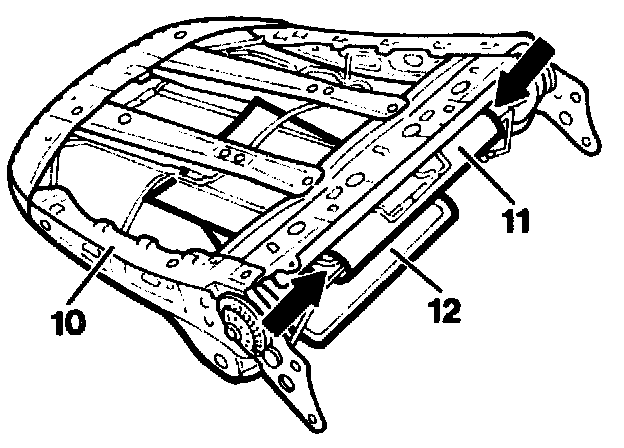

Reinforcement plate (11) on top and bottom of backrest frame (10)
detach.
Reinforcement plate (11) together with air cushion
remove, adhere to correct cable routing when installing.
Air cushion (12)
locate in the desired installed position on the reinforcement plate (2 clips).
Reinstall
in opposite order
