Map Pocket: Service and Repair

Preliminary Work:
Door covering removed, refer to "Replacement of Door Liner on Driver's Door". Removal and Replacement

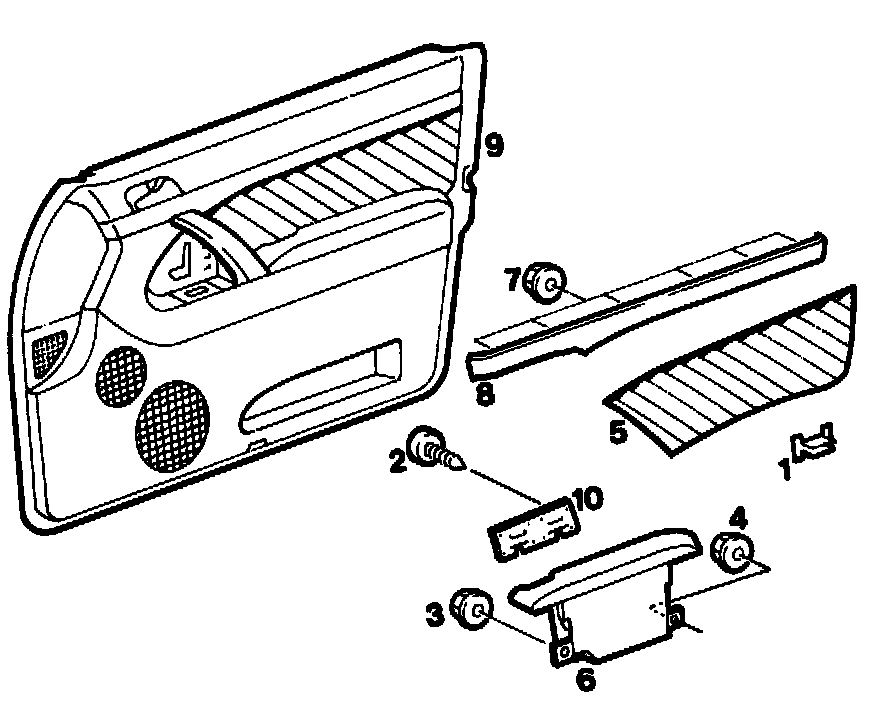

Door covering (9)
lay down on suitable surface
Nuts (7)
screw off (6 each).
Wooden trim strip (8)
remove.
Clips (1)
pull out (6 each).
Screws (2)
screw out (6 each).
Reinforcement panel (10)
remove.
Nuts (3 and 4)
screw off (2 each).
Insulating tape (arrow)
pull off.
Air baffle (5) and door pocket (6)
remove, pay attention to three attachment hooks when installing
Reinstall
in opposite order.
