Home >> Mercedes Benz >> 1994 >> E 500 (124.036) V8-5.0L (119.974) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Timing Chain

Timing Chain

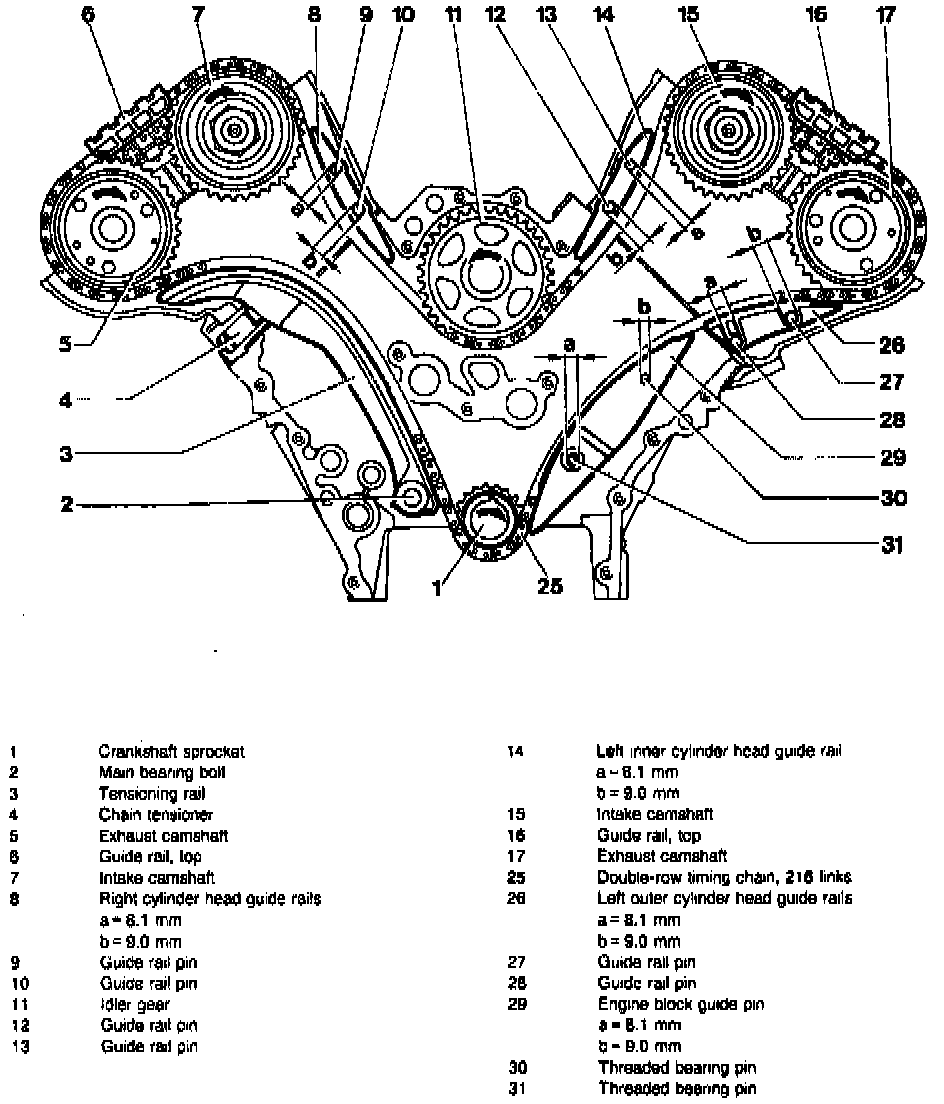

Fig. 9 Timing Chain:





Timing chain has been adapted to a lower crankcase profile, Fig. 9.
