>�/Z����Base Module:

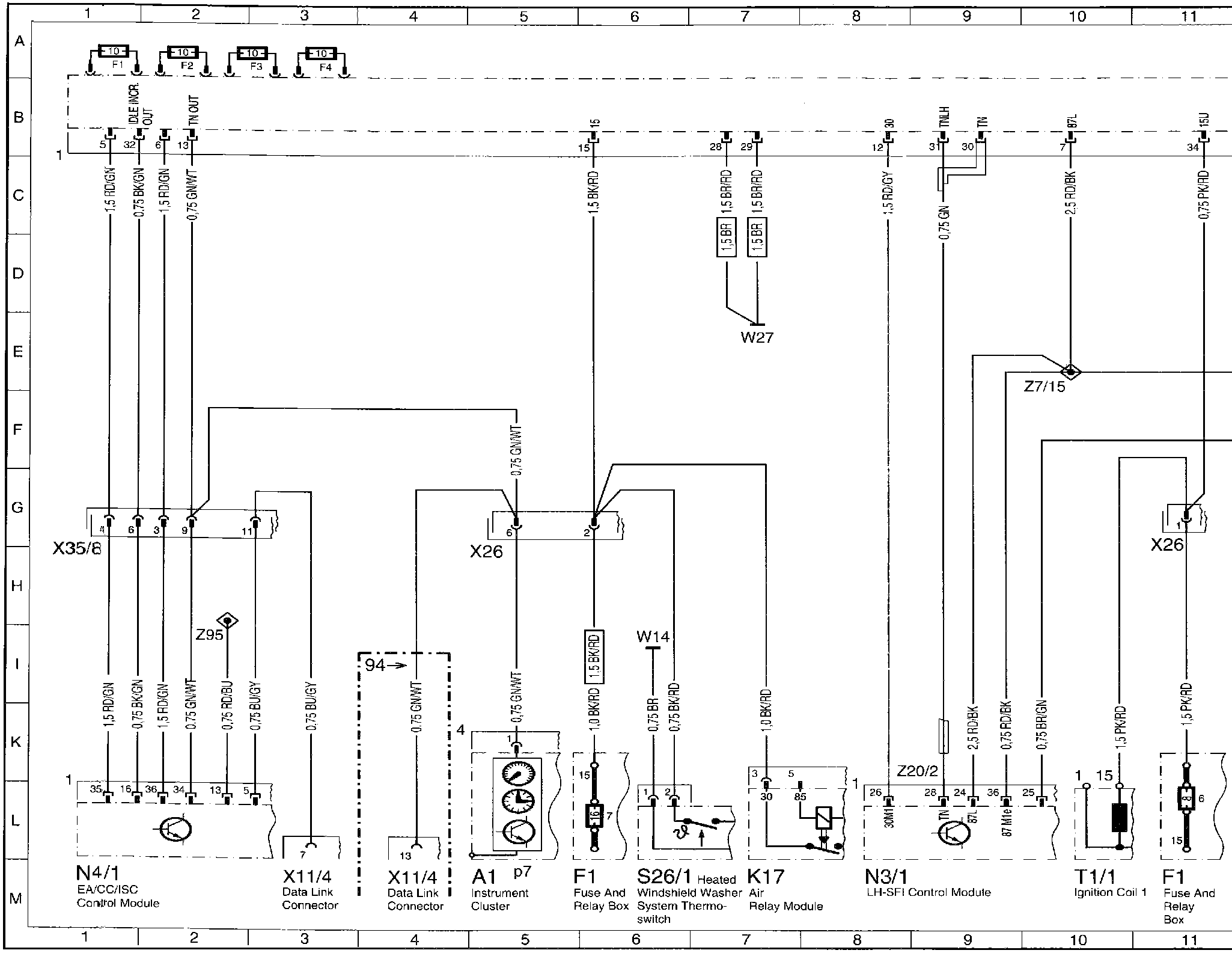

Wiring Diagram

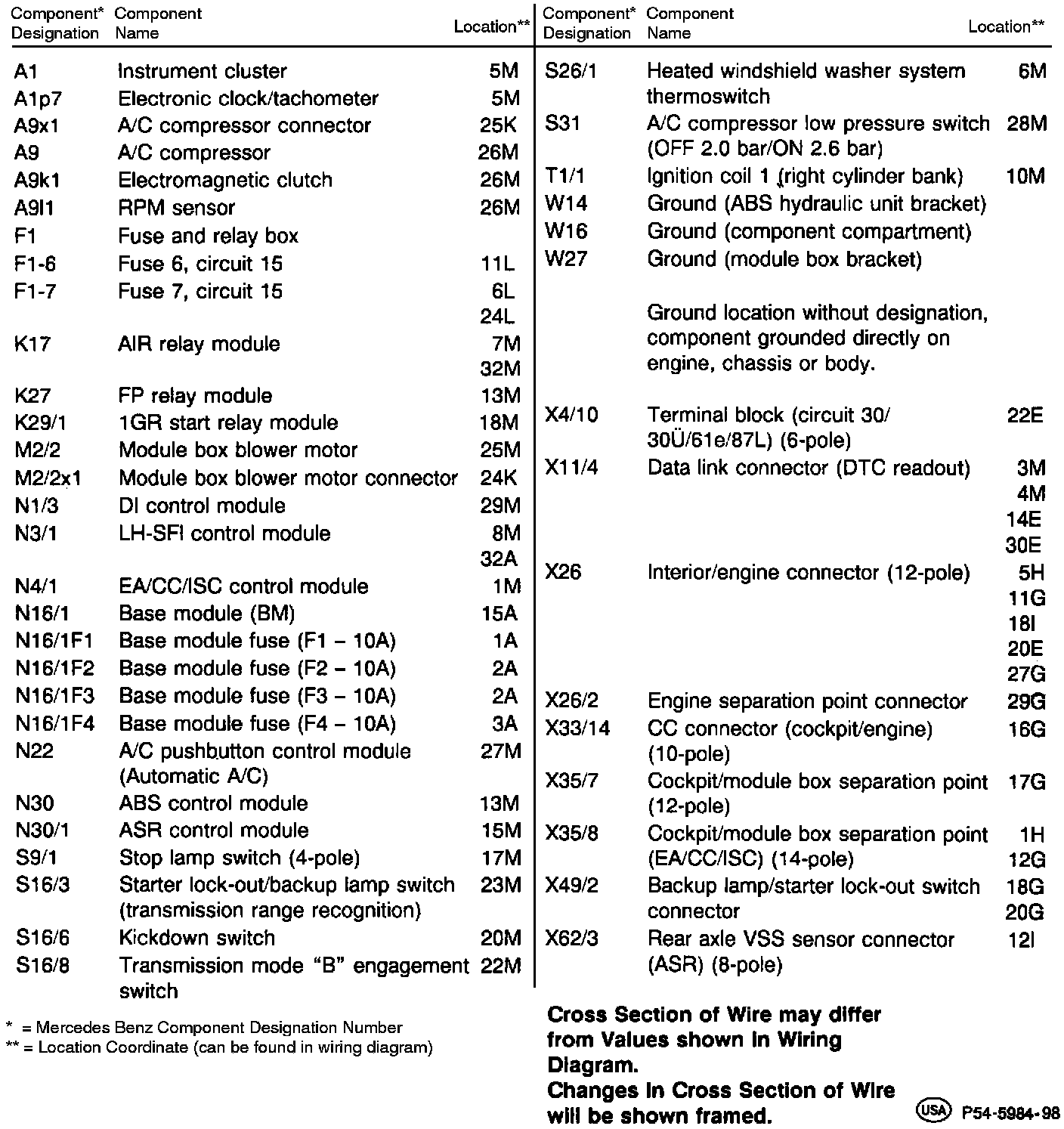

Base Module - Component Index (Part 1 Of 2):

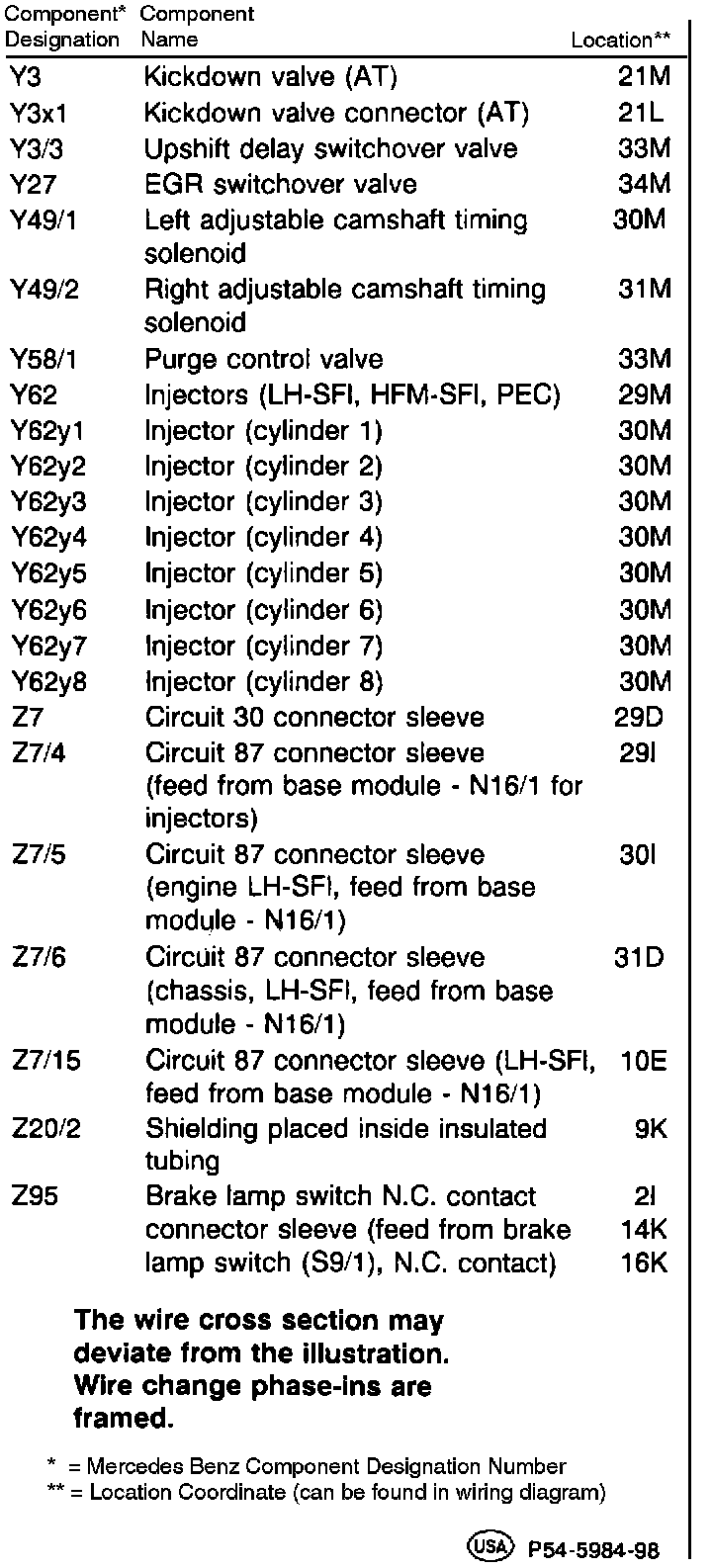

Base Module - Component Index (Part 2 Of 2):
Component Index
