Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1994
>>
E 320 Sedan (124.032) L6-3.2L (104.992)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Test Procedures
>>
Automatic Air Conditioning (Auto A/C)
>>
Checking Electric Components of the Automatic Climate Control
>>
Tests 6/7
Tests 6/7

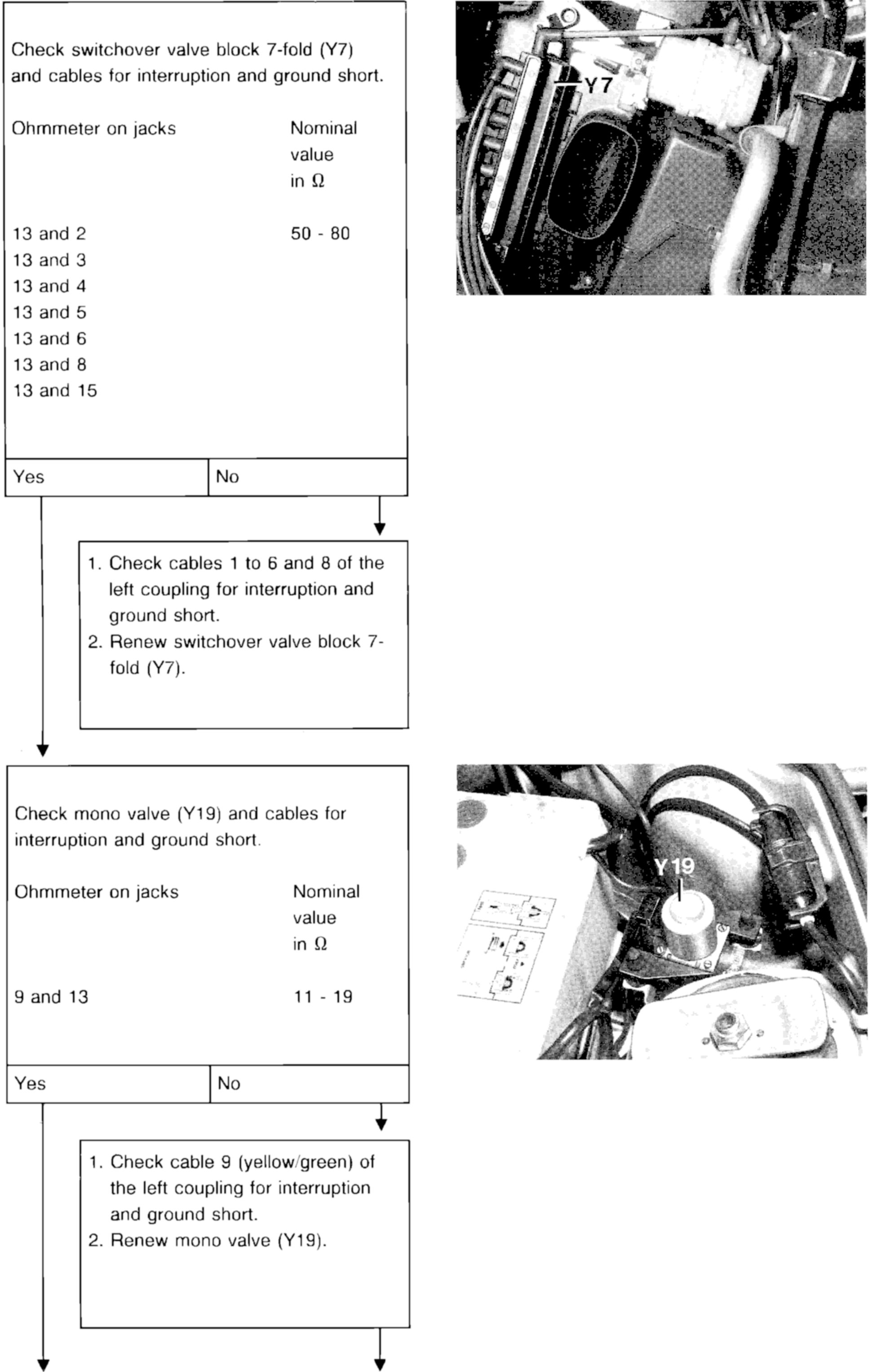

System Test 6/7:
