Transmission Mount: Service and Repair

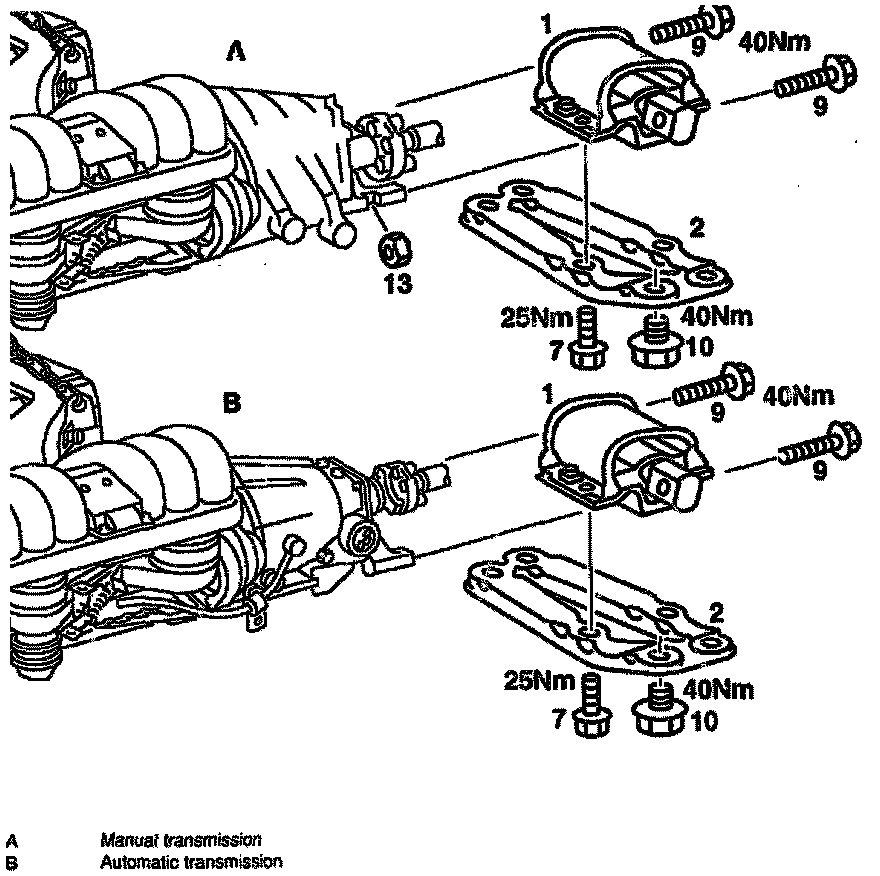

NOTE: Numbers in parentheses ( ) indicate a component or tool in the associated illustration.

1. Support transmission.
2. Unscrew bolts (7) and (10).
3. Remove engine carrier (2).
4. Unscrew bolts (9).
6. Remove engine mounts (1).
7. Reverse procedure to install, noting the following:
- Tighten bolts (9) to 40 Nm.
- Tighten bolts (7) and (10) to:
- M8 25 Nm
- M10 40 Nm
