C 280 (202.028) L6-2.8L (104.941)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Connector Locations
>>
By Connector Designation
>>

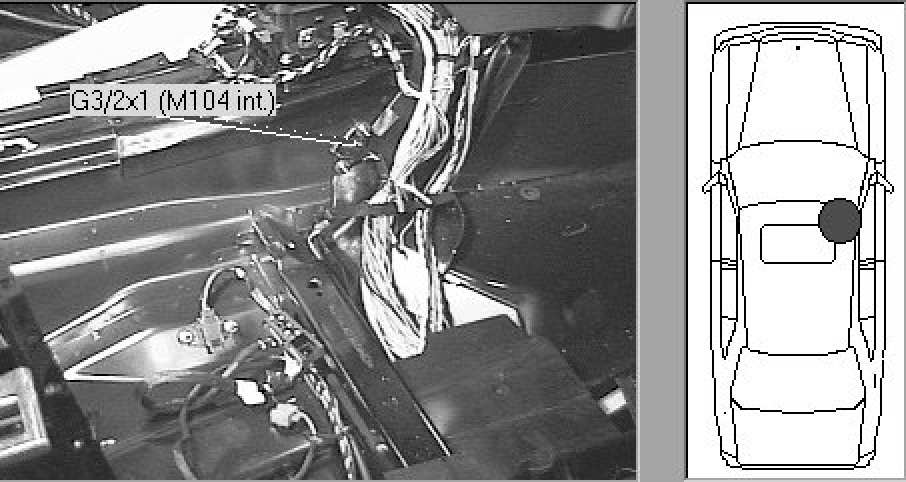

G3/2x1 Int. - O2 Sensor 2 Connector
G3/2x1 Int. - O2 Sensor 2 Connector
Beneath L side of passenger seat (passes thru body, interior side shown)
