Electronic Accelerator (EA)/Cruise Control (CC)/Idle Speed Control (ISC) PE30.20-U-2000WA

Electronic Accelerator (EA)/cruise Control (CC)/idle Speed Control (ISC) PE30.20-U-2000WA
- Up to 5/94

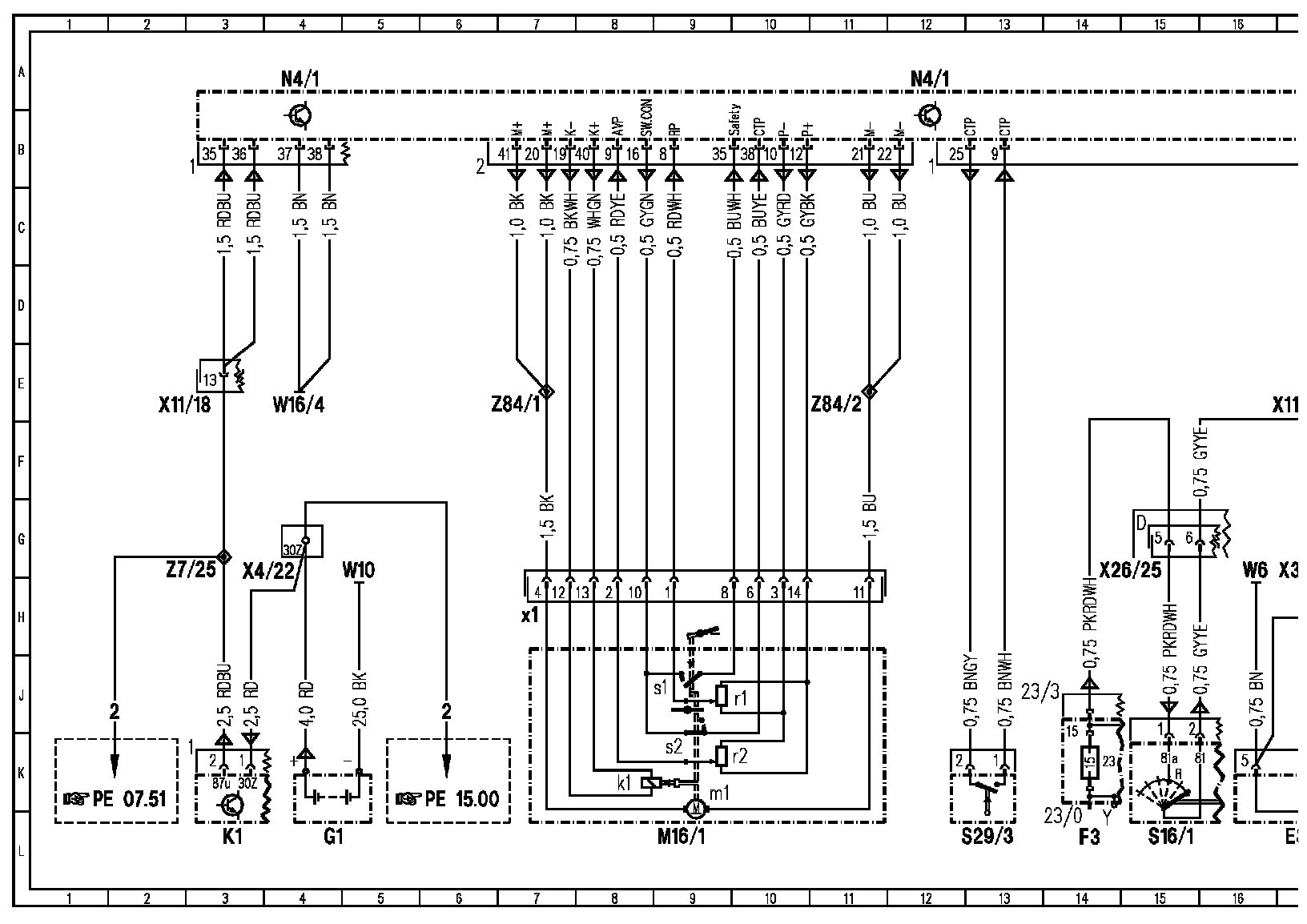

Wiring Diagram, Part 1:

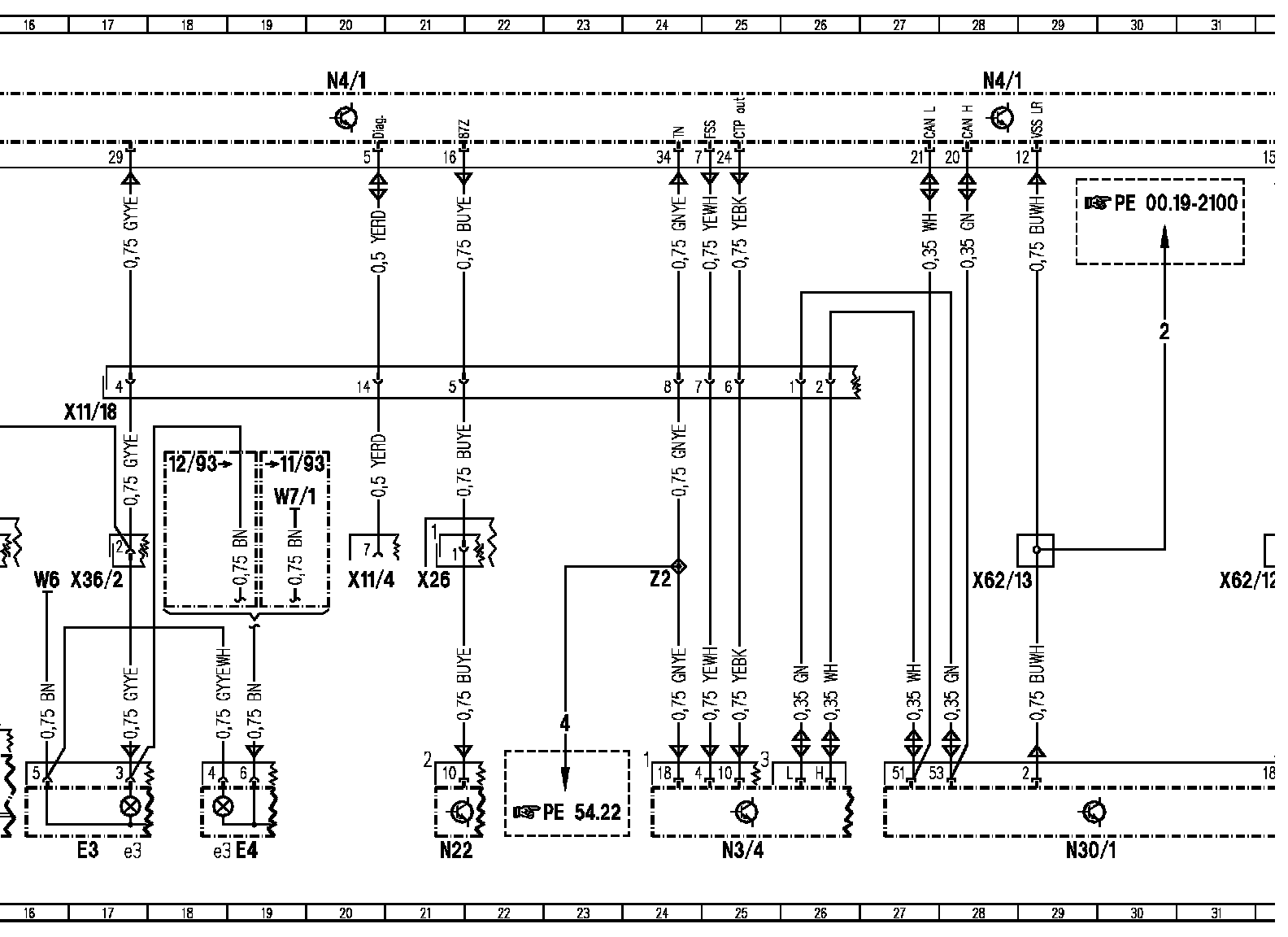

Wiring Diagram, Part 2:

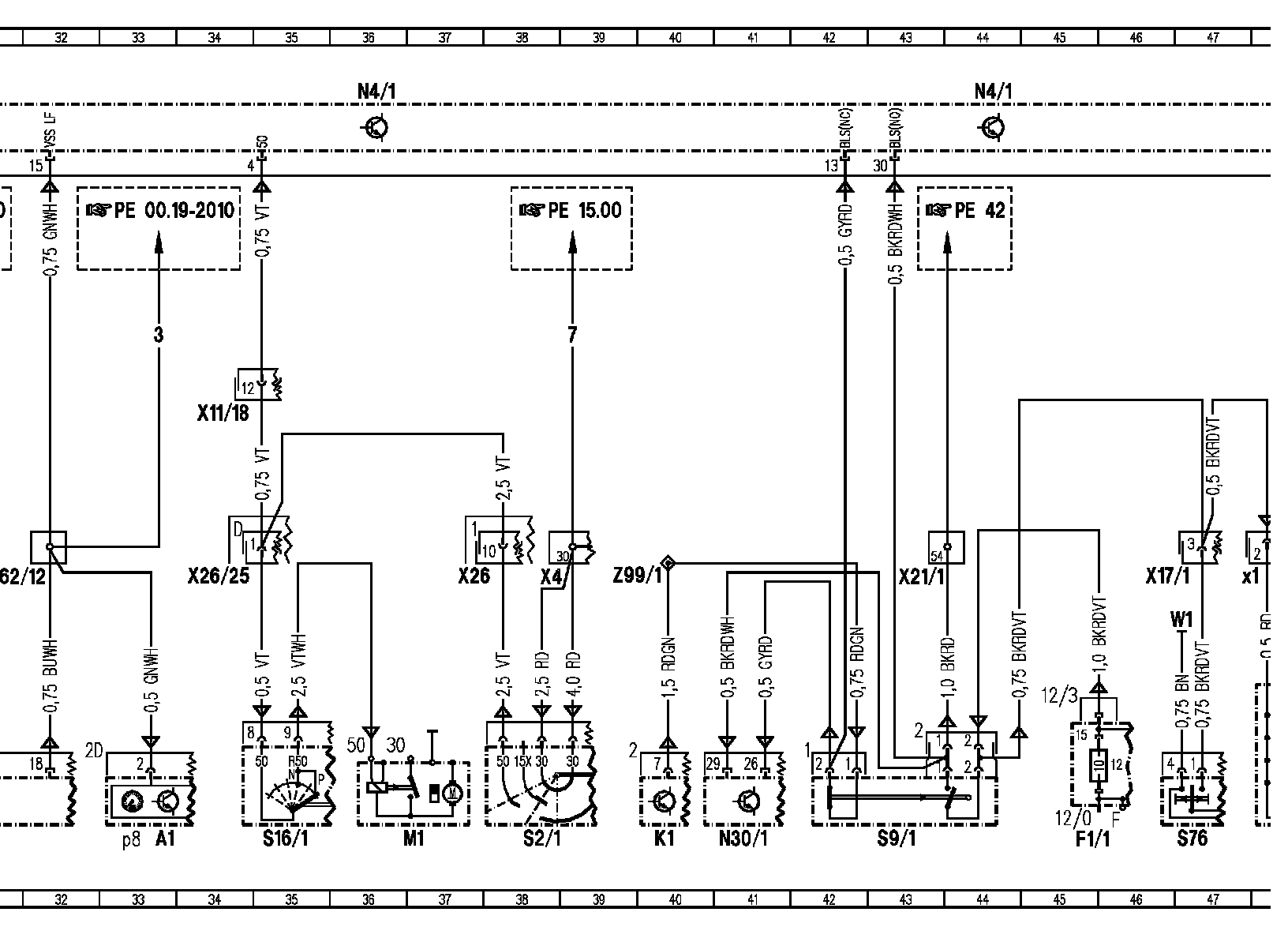

Wiring Diagram, Part 3:

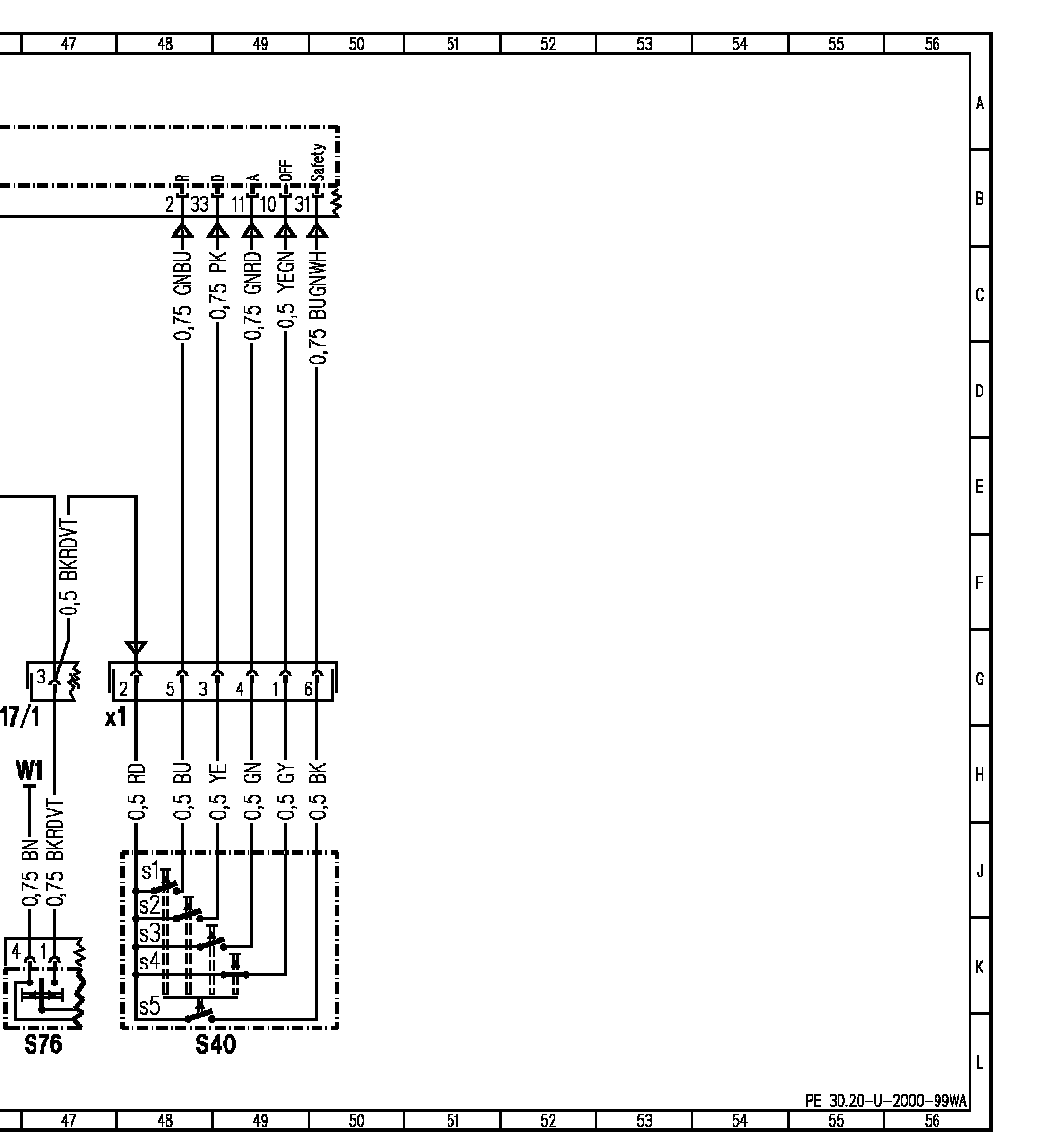

Wiring Diagram, Part 4:

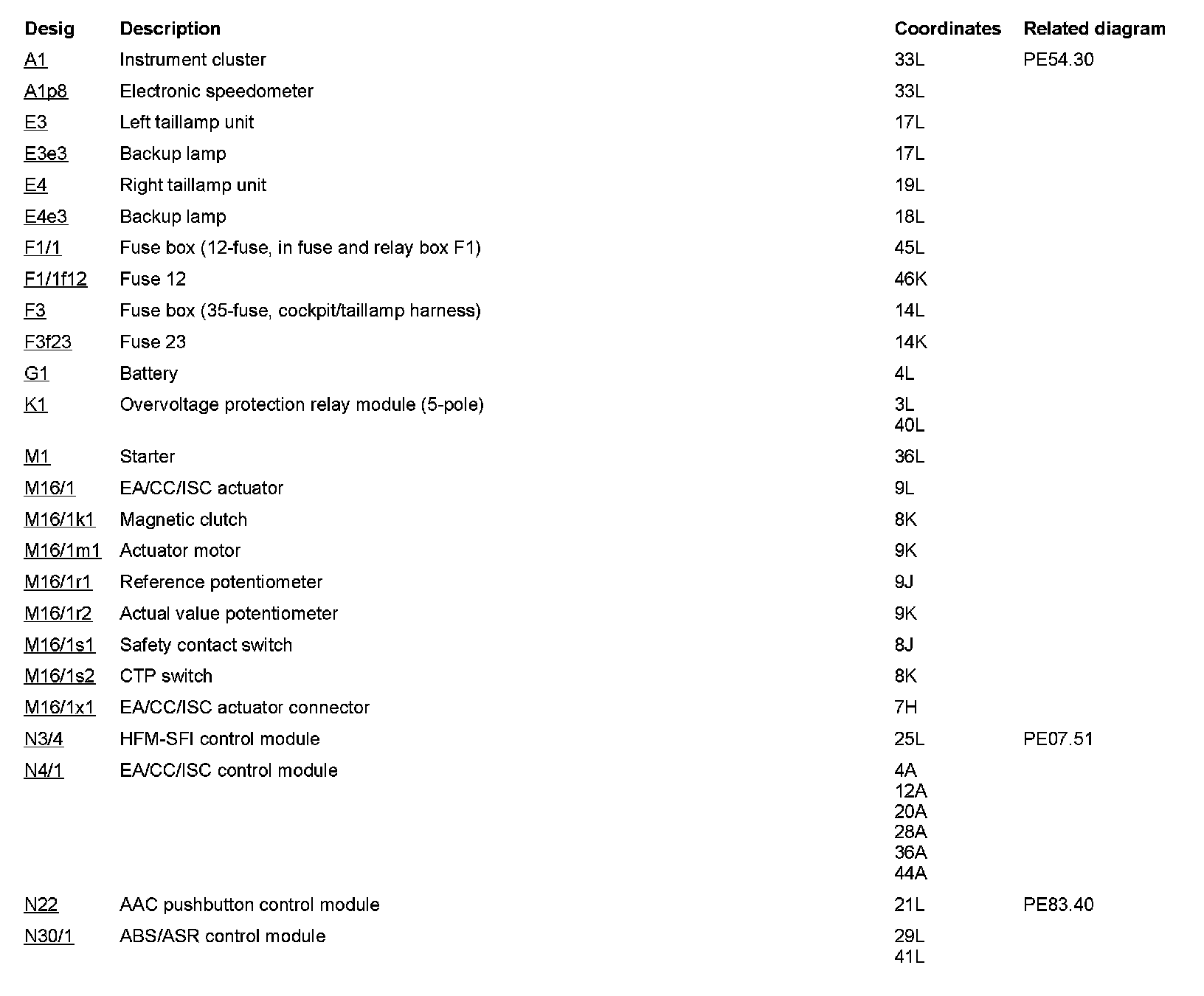

Component Description/Coordinates, A1 To N30/1:

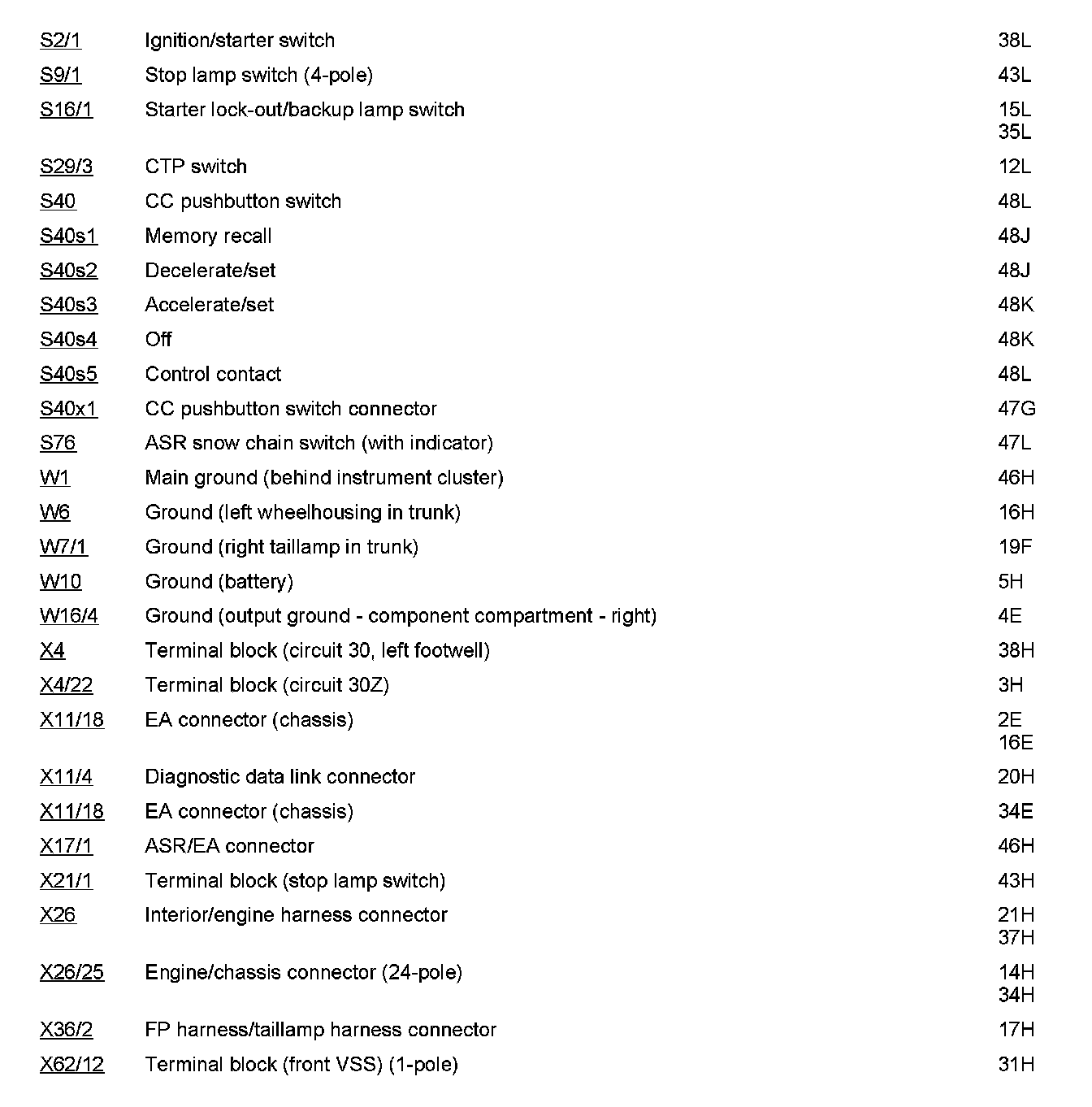

Component Description/Coordinates, S2/1 To X62/12:

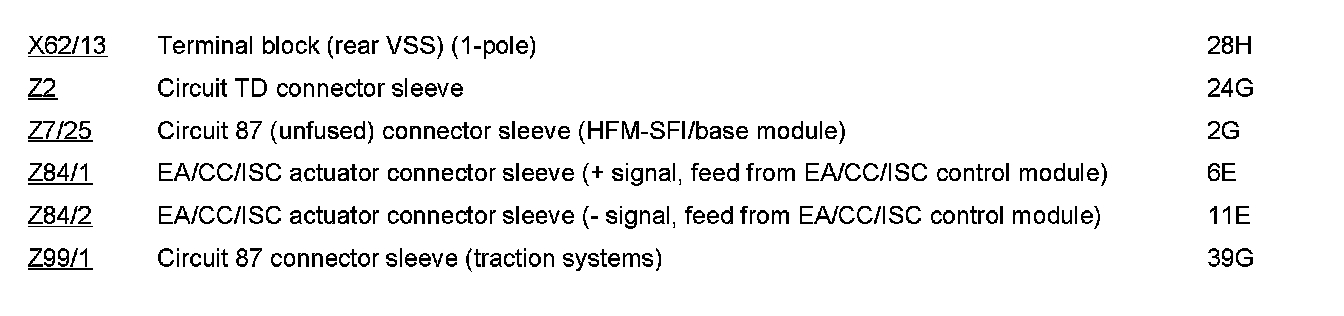

Component Description/Coordinates, X62/13 To Z99/1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
