Anti-Lock Brake System (ABS)
Anti-Lock Brake System (ABS)
Model 202 (up to 5/94)
Electrical Test Program - Preparation for Test
Preliminary work:
Diagnosis - Diagnostic Trouble Code (DTC) Memory 11 Anti-Lock Brake System (ABS) (DTC Memory [11])
1. Ignition: OFF.
2. Provide access to ABS control module (N30).

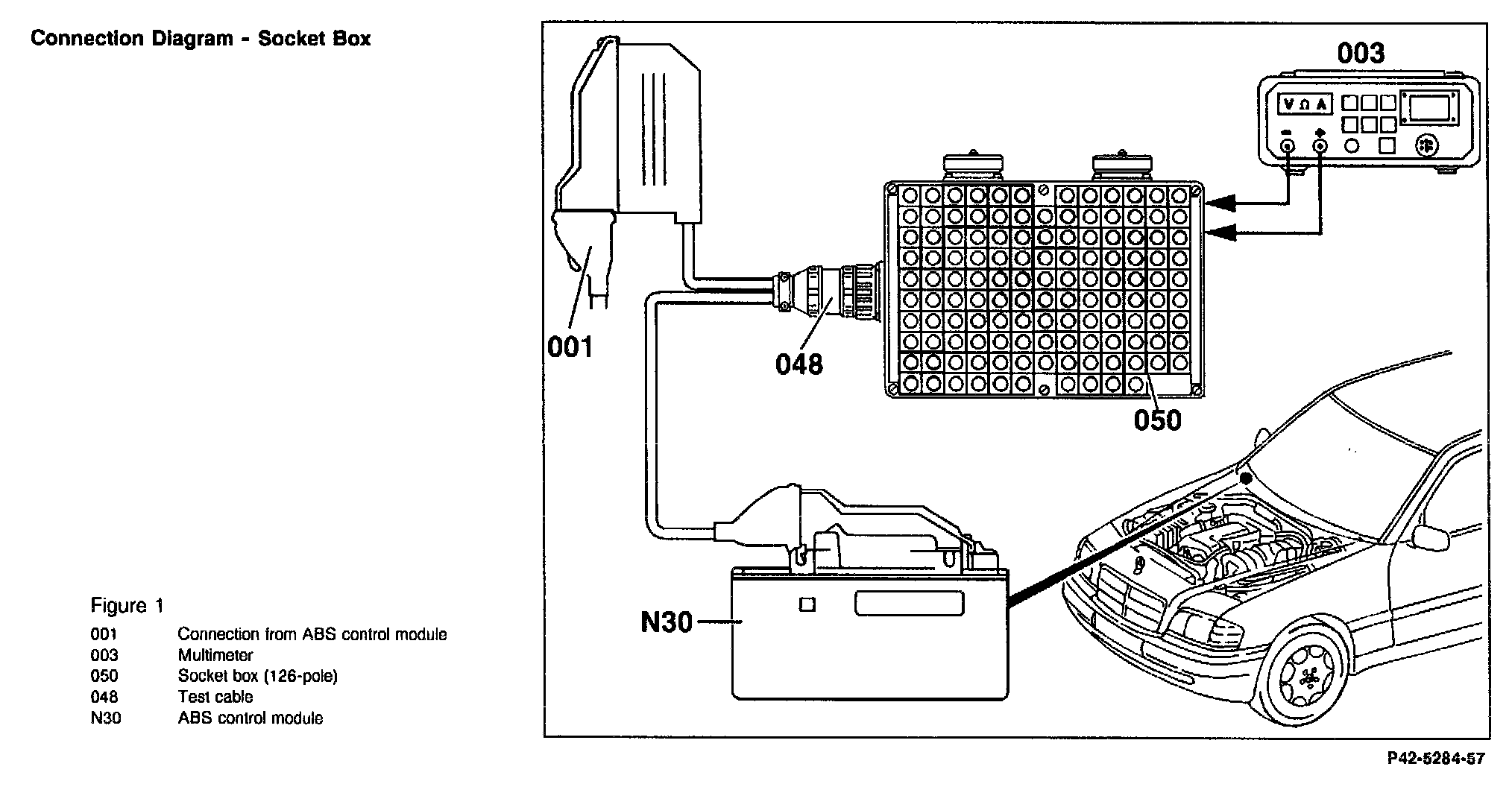

3. Connect socket box (126-pole) with test cable according to connection diagram (Figure 1).

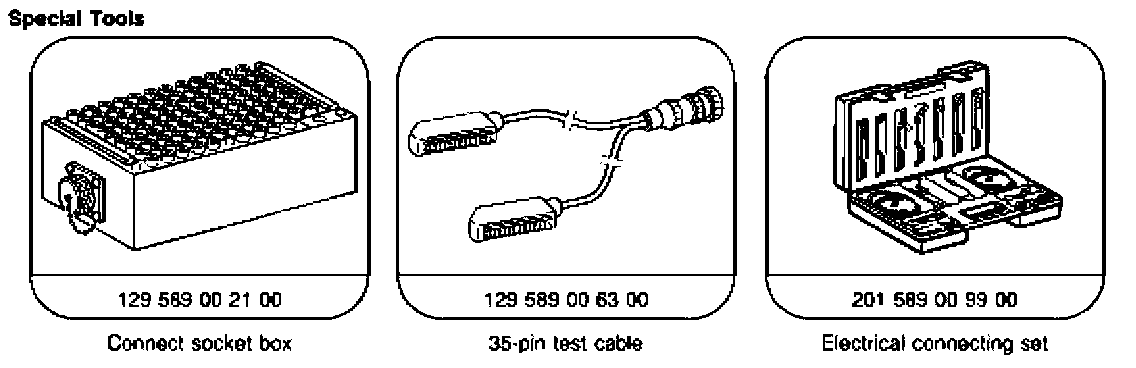

Special Tools:

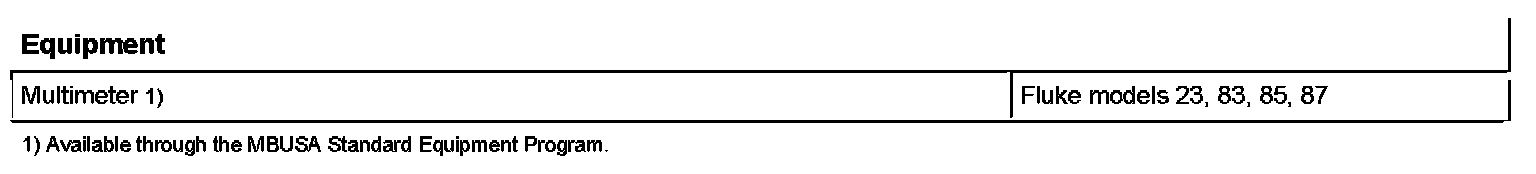

Equipment:
