System Components

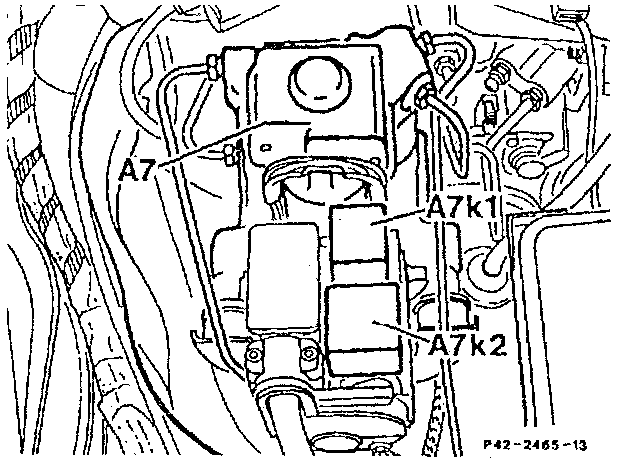

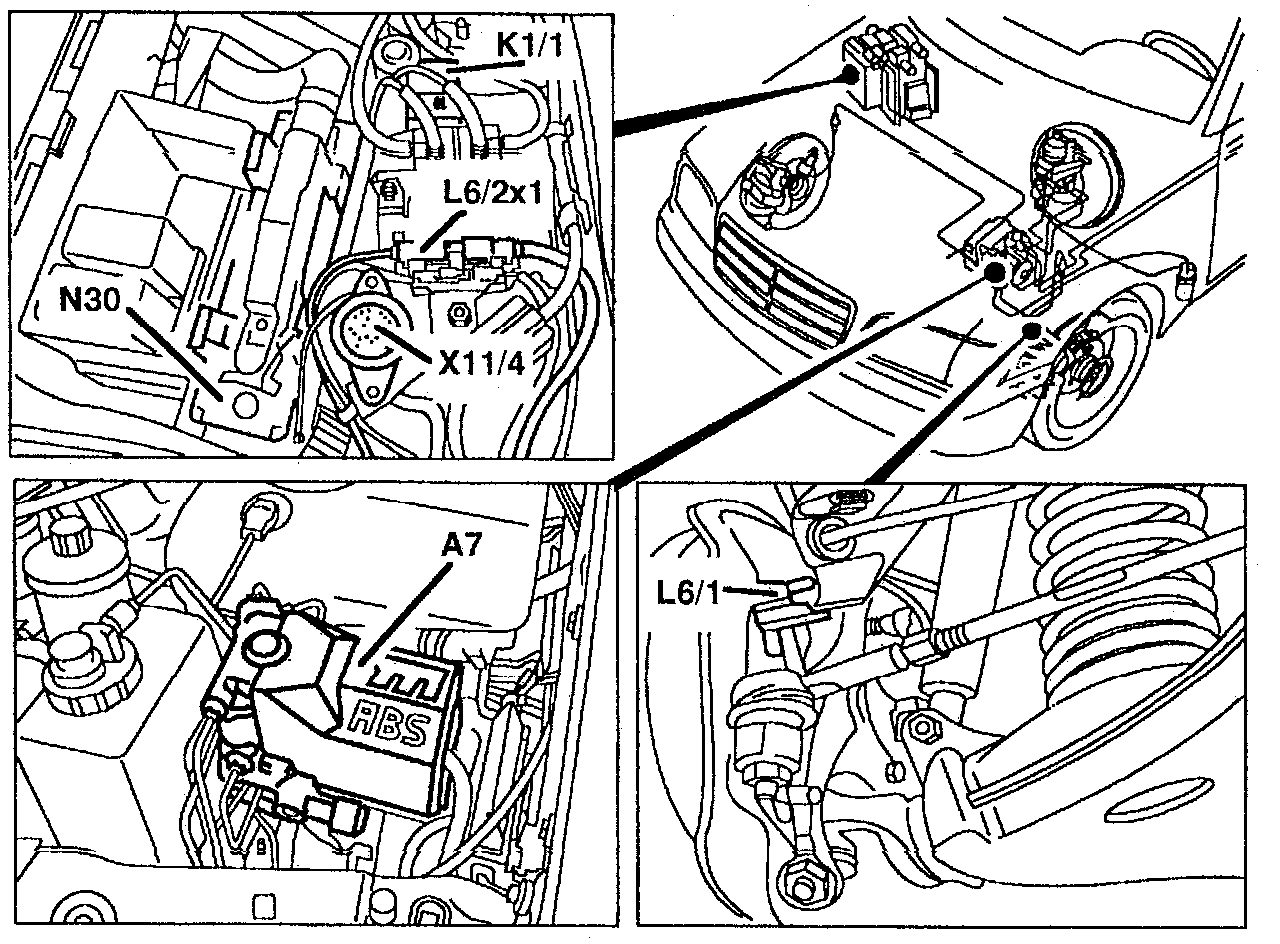

A7 ABS hydraulic unit

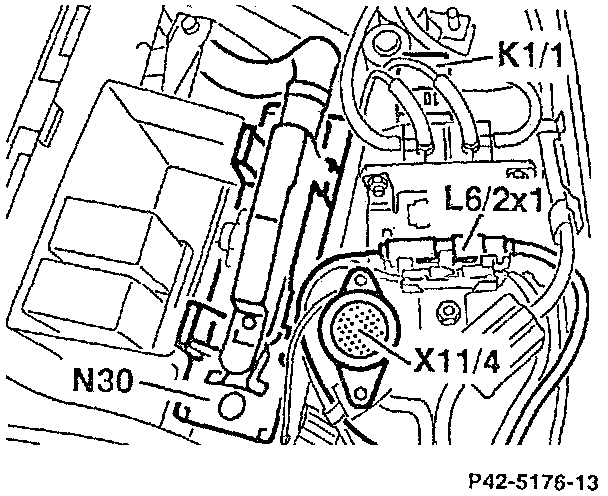

K1/1 Overvoltage protection relay module (87E 7-pole)
L6/1 Left front axle vehicle speed sensor
L6/2 Right front axle vehicle speed sensor
N30 ABS control module
X11/4 Data link connector (38-pole)






A1 Instrument cluster
A1e17 ADS malfunction indicator lamp
L6 Rear axle vehicle speed sensor






A7k1 Solenoid valve relay
A7k2 Return pump relay

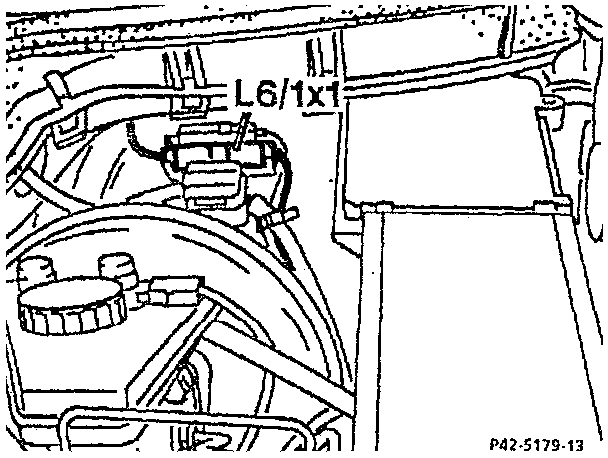

L6/1x1 Left front axle vehicle speed sensor harness






L6/2x1 Right front axle vehicle speed sensor harness
