Calibration Resistor / Connector: Testing and Inspection

Figure 4:

1. Turn ignition OFF.
2. Remove left or right Reference Resistor (R16/3 or R16/4) from Ignition Control Module.

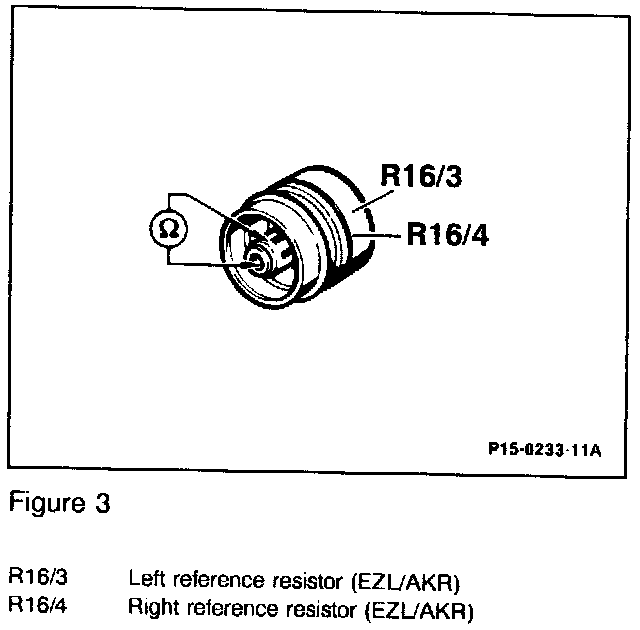

Figure 3:

3. Measure resistance as shown in image. Replace as necessary.
