Calibration Resistor / Connector: Description and Operation

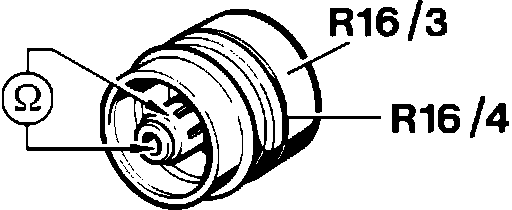

Reference Resistor (R16/3 And R16/4):

The activation of the ignition timing map occurs through the reference resistor (R16/3 and R16/4). The resistor is mounted into each EZK/AKR control unit.
