Mercedes Benz
>>
1993
>>
600SEL (140.057) V12-6.0L (120.980)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

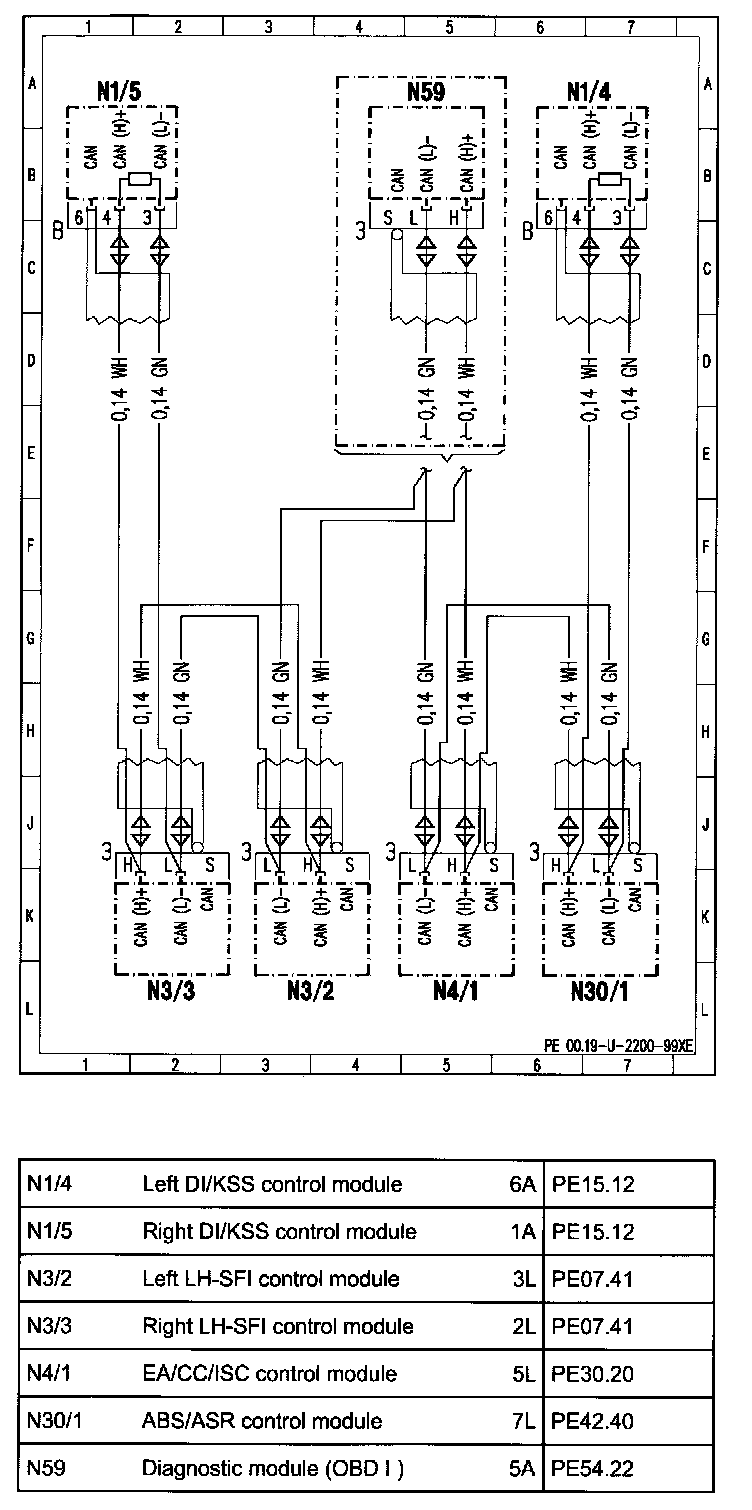

PE00.19-U-2200-XE - With AT 4, ASR:
