With at 4
With at 4
Engine 119 LH With AT 4

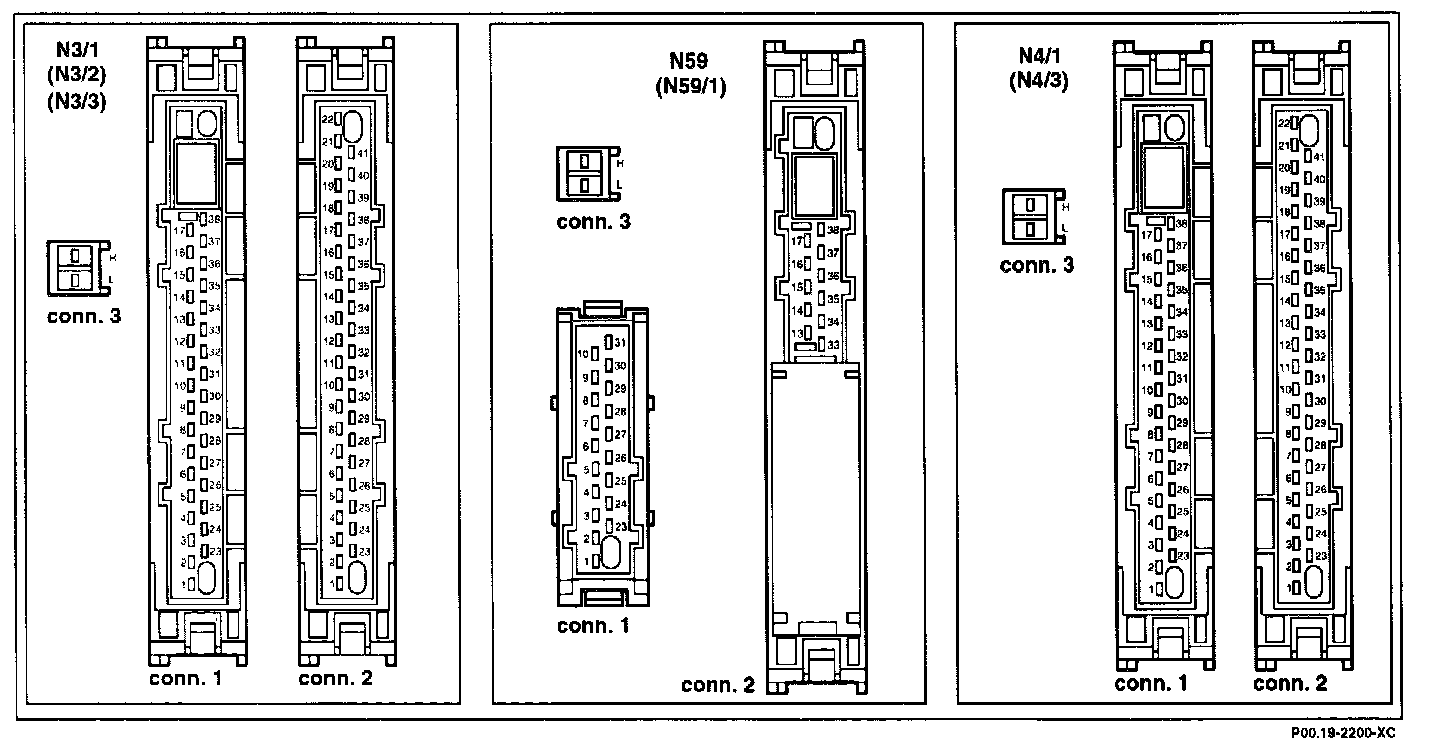

Connector Assignment:

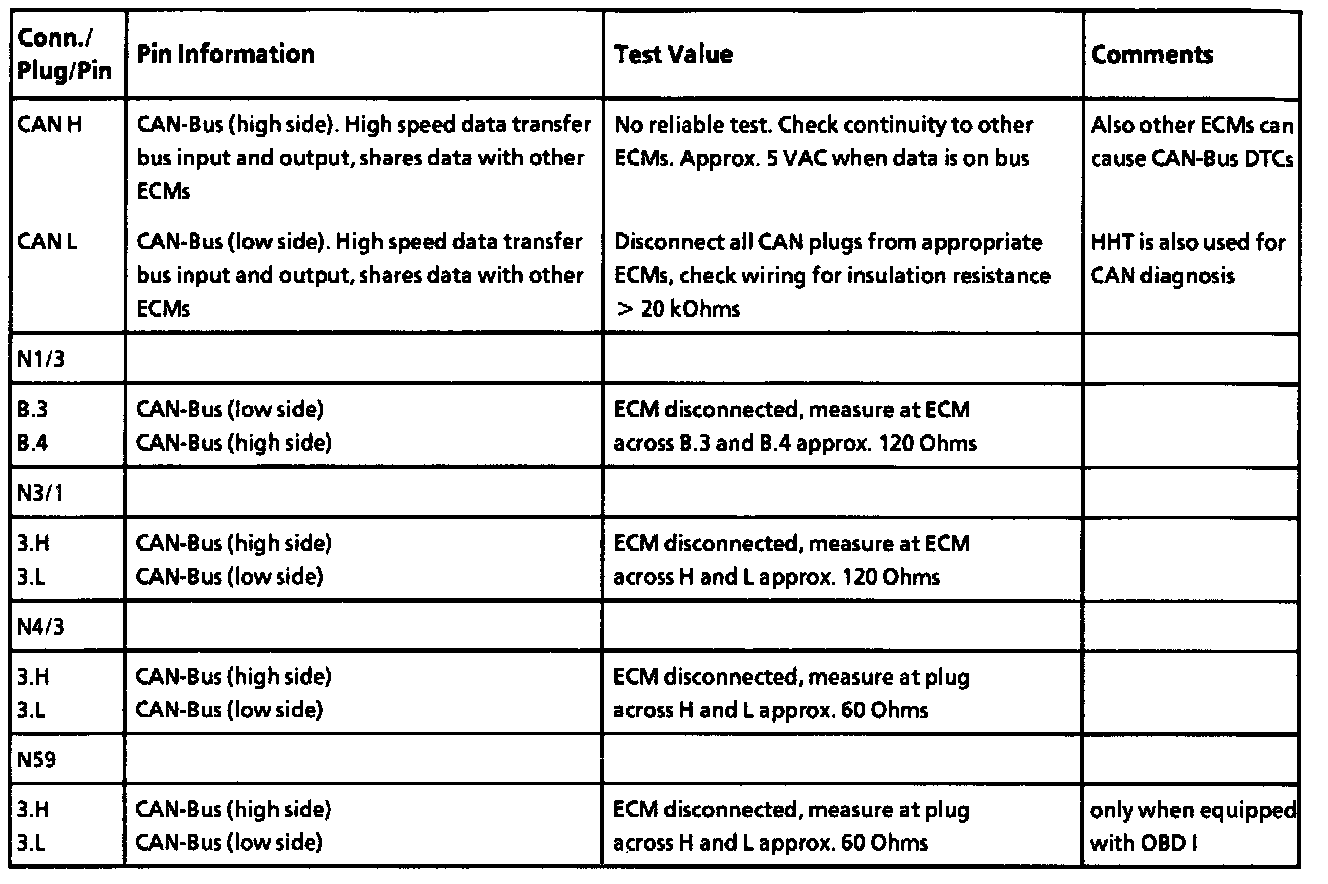

Pin Information:
All values measured to ground unless otherwise noted
