Home >> Mercedes Benz >> 1993 >> 400E (124.034) V8-4.2L (119.975) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Accelerator Pedal >> Service and Repair >> Firewall Pivot Point With Accelerator Pedal Lever

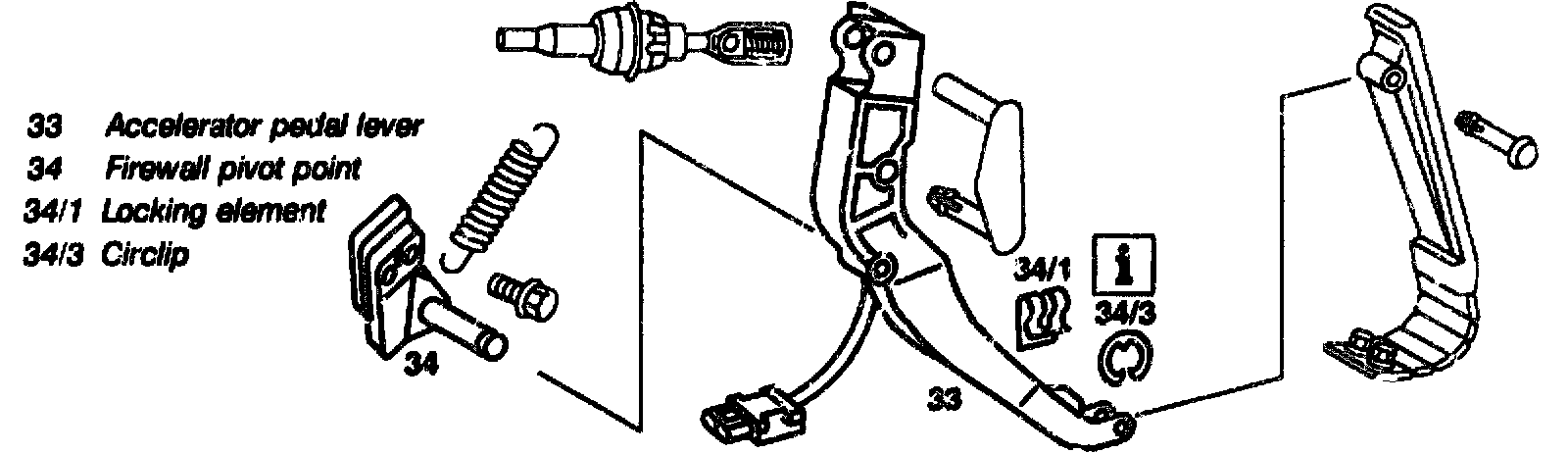

Firewall Pivot Point With Accelerator Pedal Lever








Model 124






Model 129, 140, 202

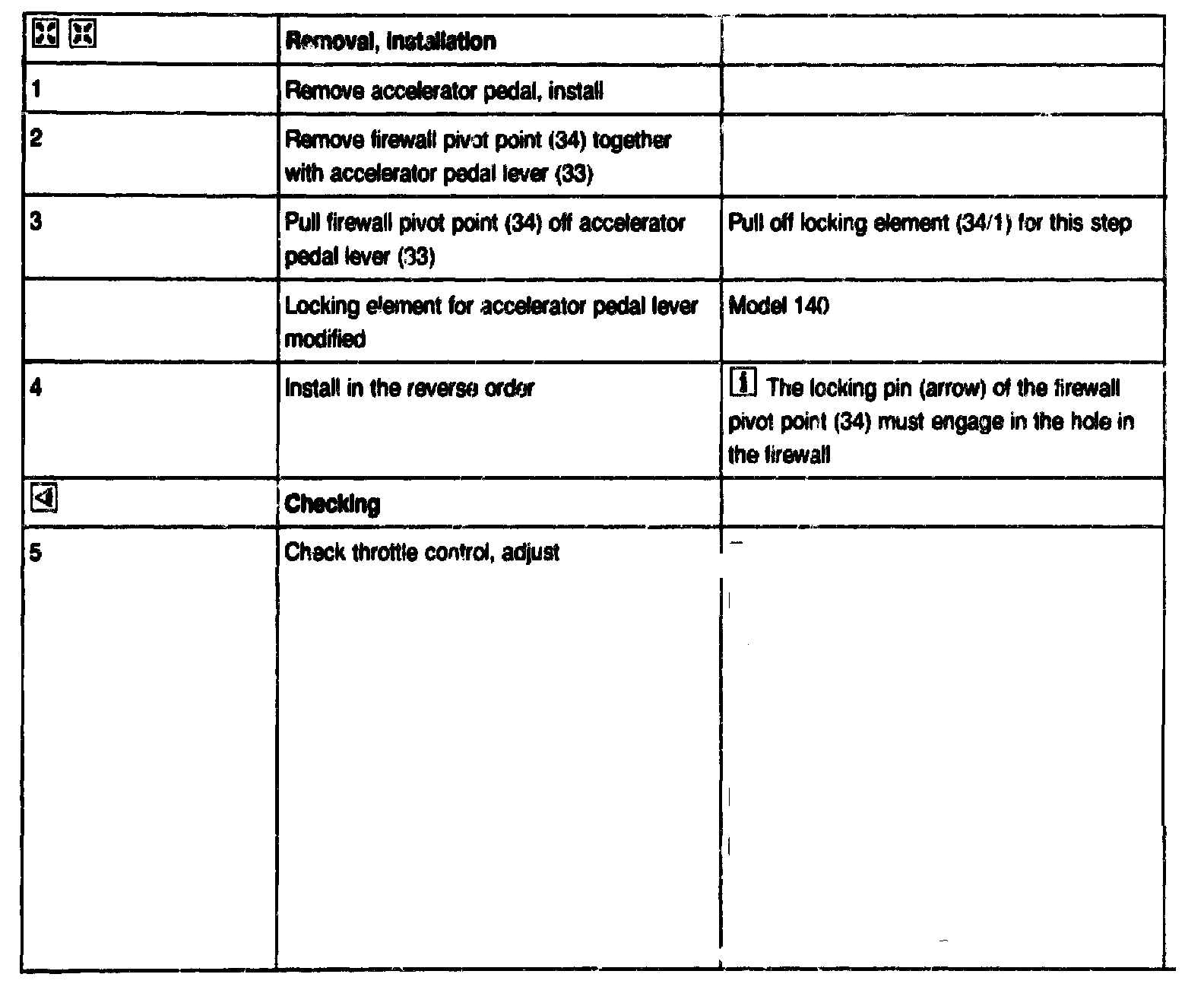

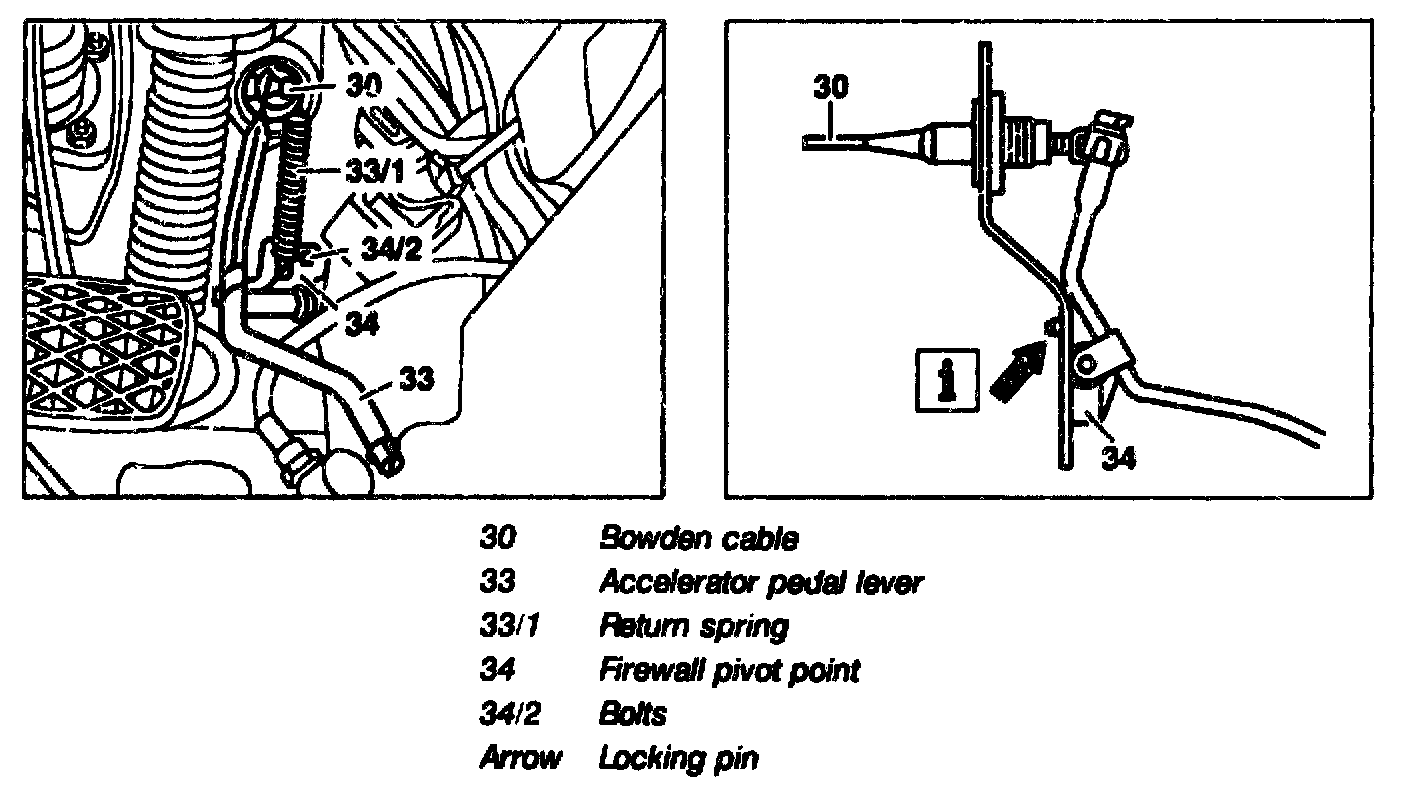

Removal, installation
