Home
>>
Mercedes Benz
>>
1993
>>
300TE 4MATIC (124.290) L6-3.0L (103.985)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
Electrical Diagrams
>>
Air Delivery
Air Delivery

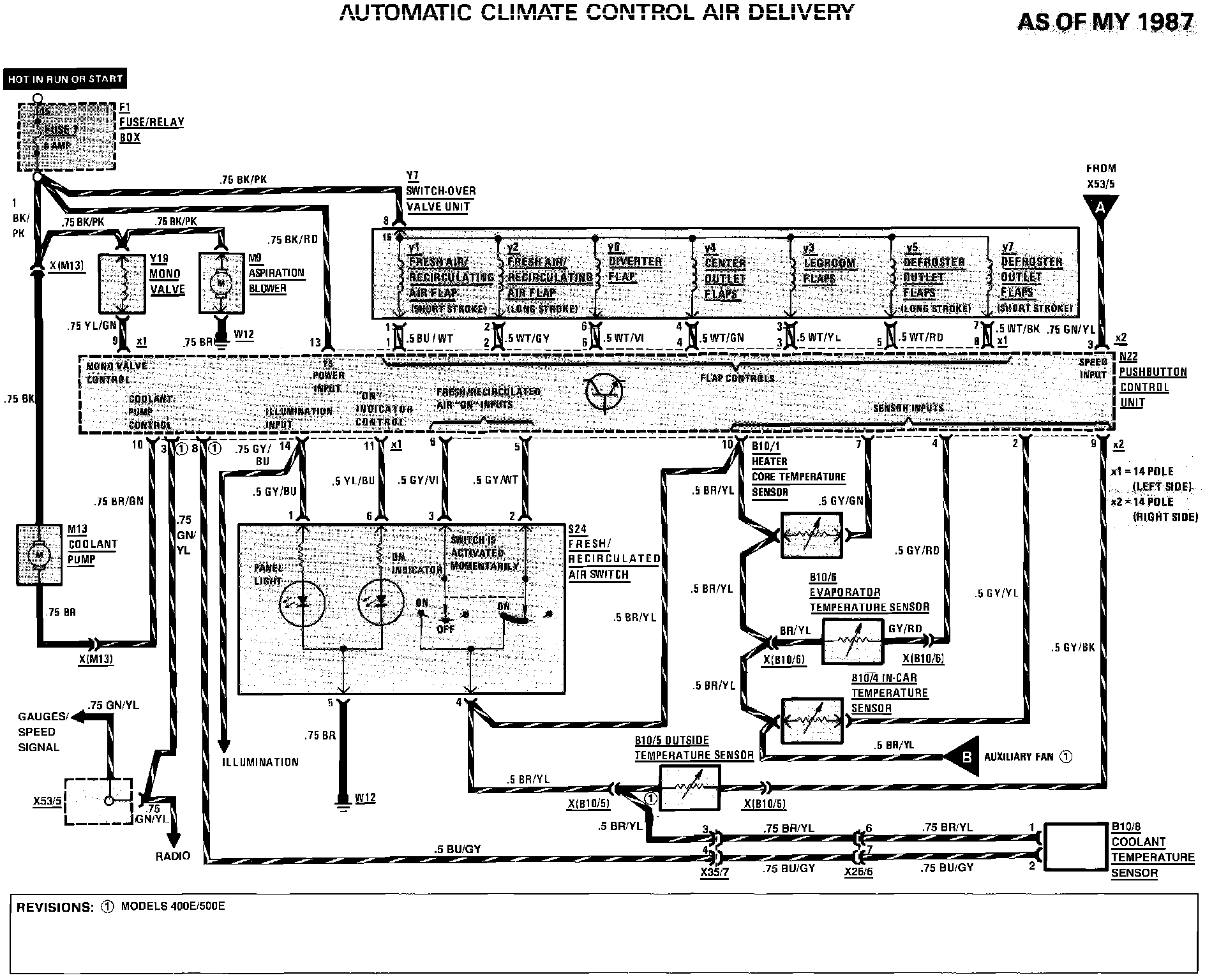

ACC Air Delivery:
