Air Injection Pump Clutch: Service and Repair

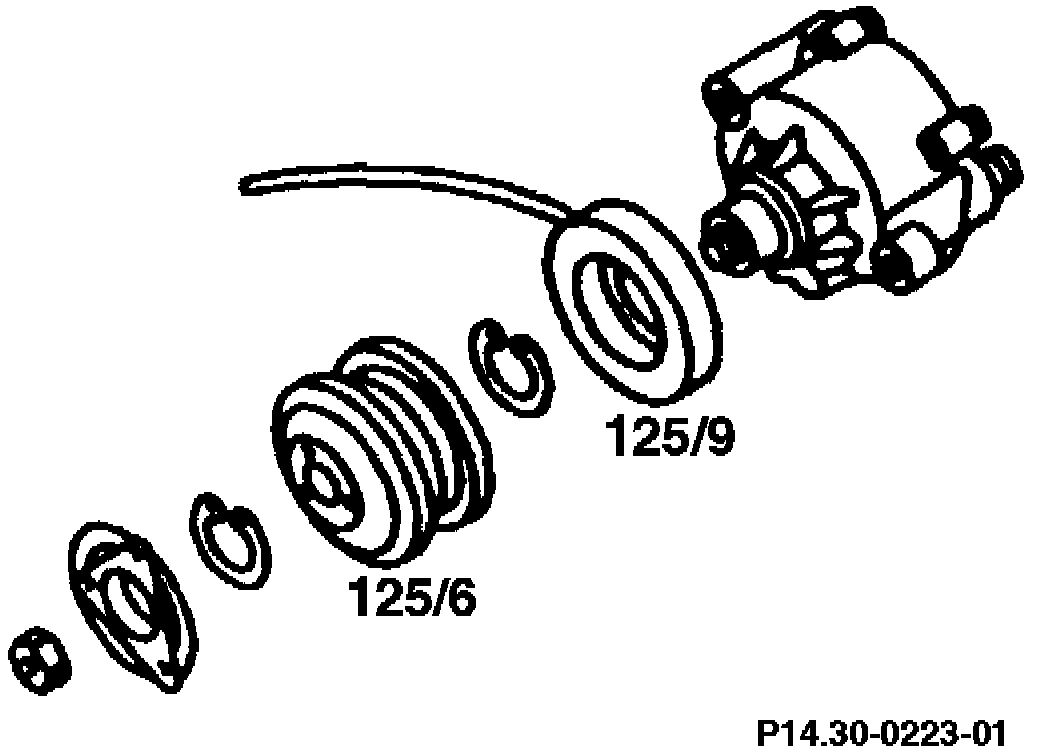

Electromagnetic Coupling With Air Pump:

125/6 Belt pulley
125/9 Solenoid

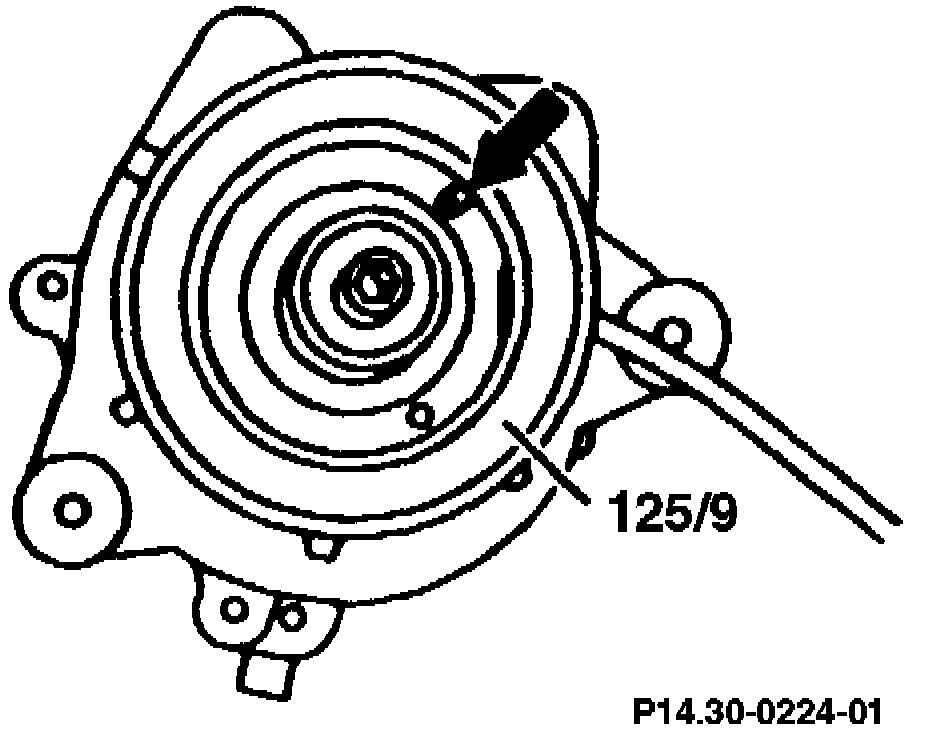

Air Pump:

Arrow -> Locking pin

- Remove air pump belt pulley:
^ Torque nut to 35 ± 5 Nm (26 ± 4 ft lb).

- Remove solenoid (125/9):
^ Engage in locking pin (arrow) when installing.
