With at 5, ASR


Engine 104 With AT 5, ASR

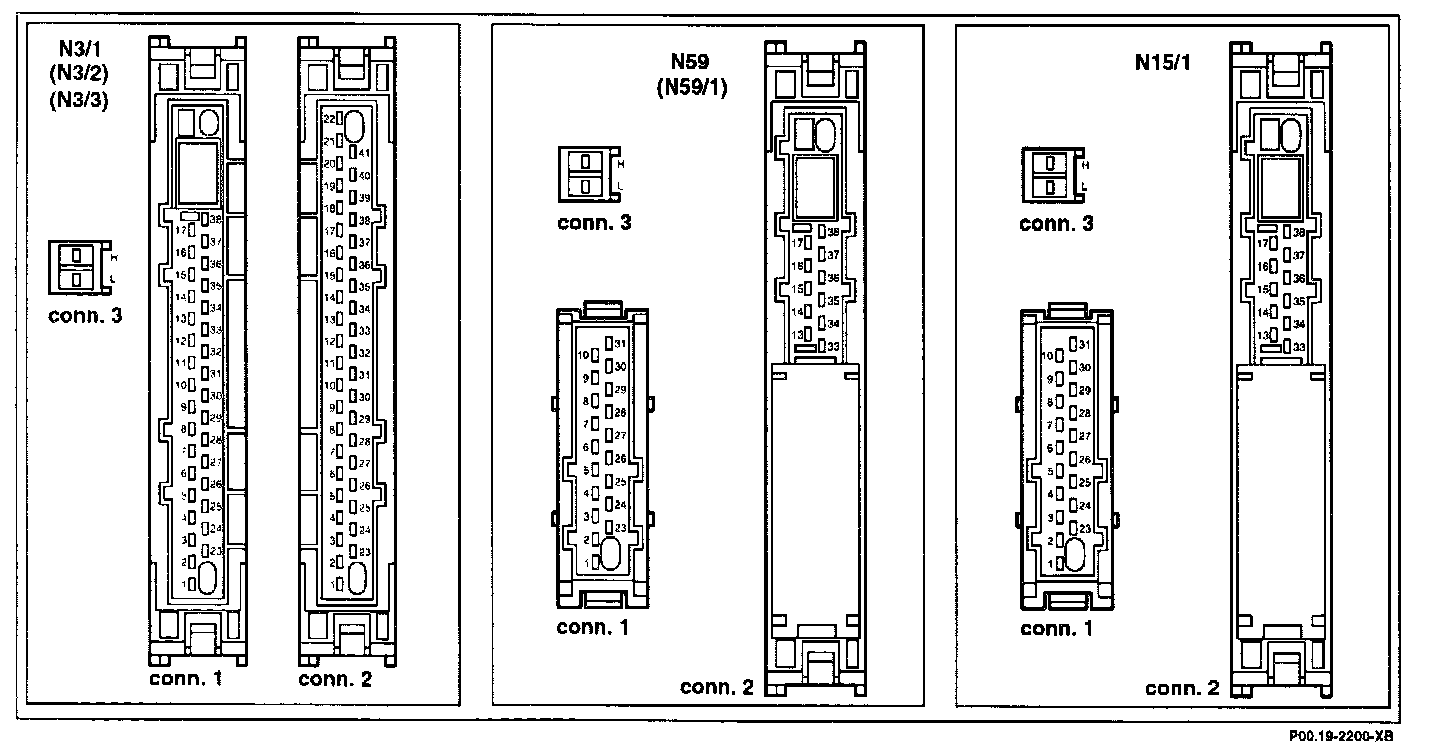

Connector Assignment:

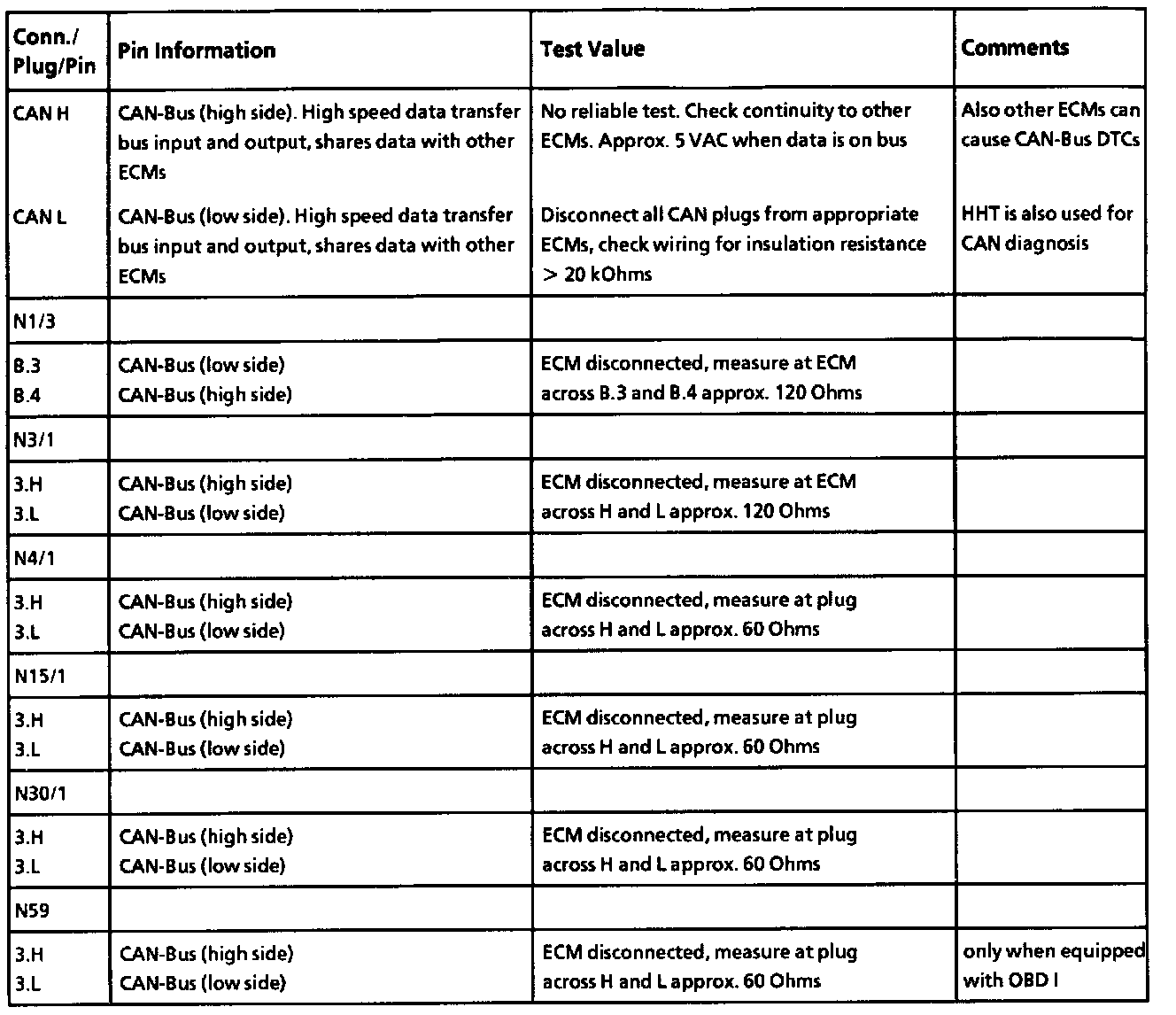

Pin Information:






All values measured to ground unless otherwise noted
