300SE (140.032) L6-3.2L (104.990)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
Two Piece Radio W/Bose Beta Sound System
Two Piece Radio W/Bose Beta Sound System

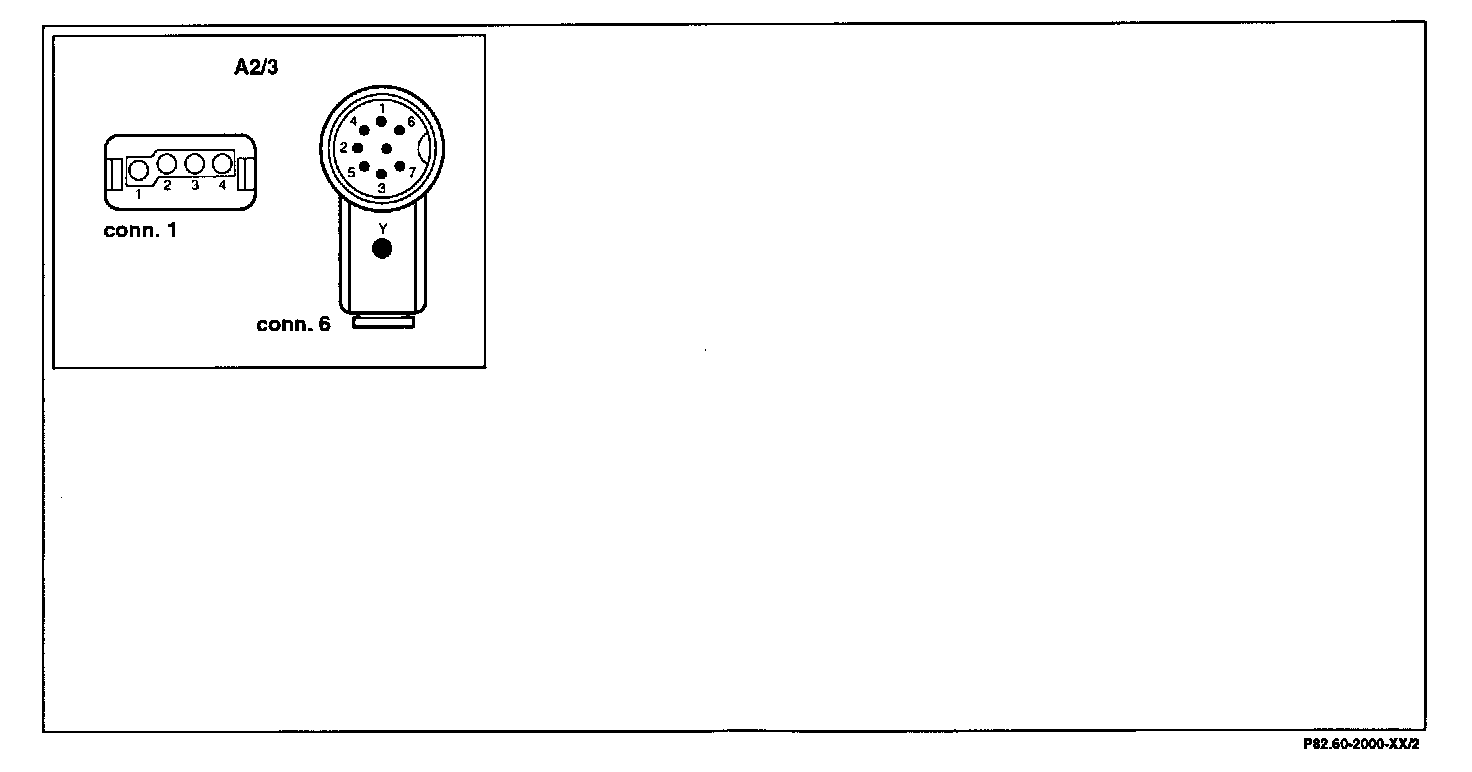

Connector Assignment:

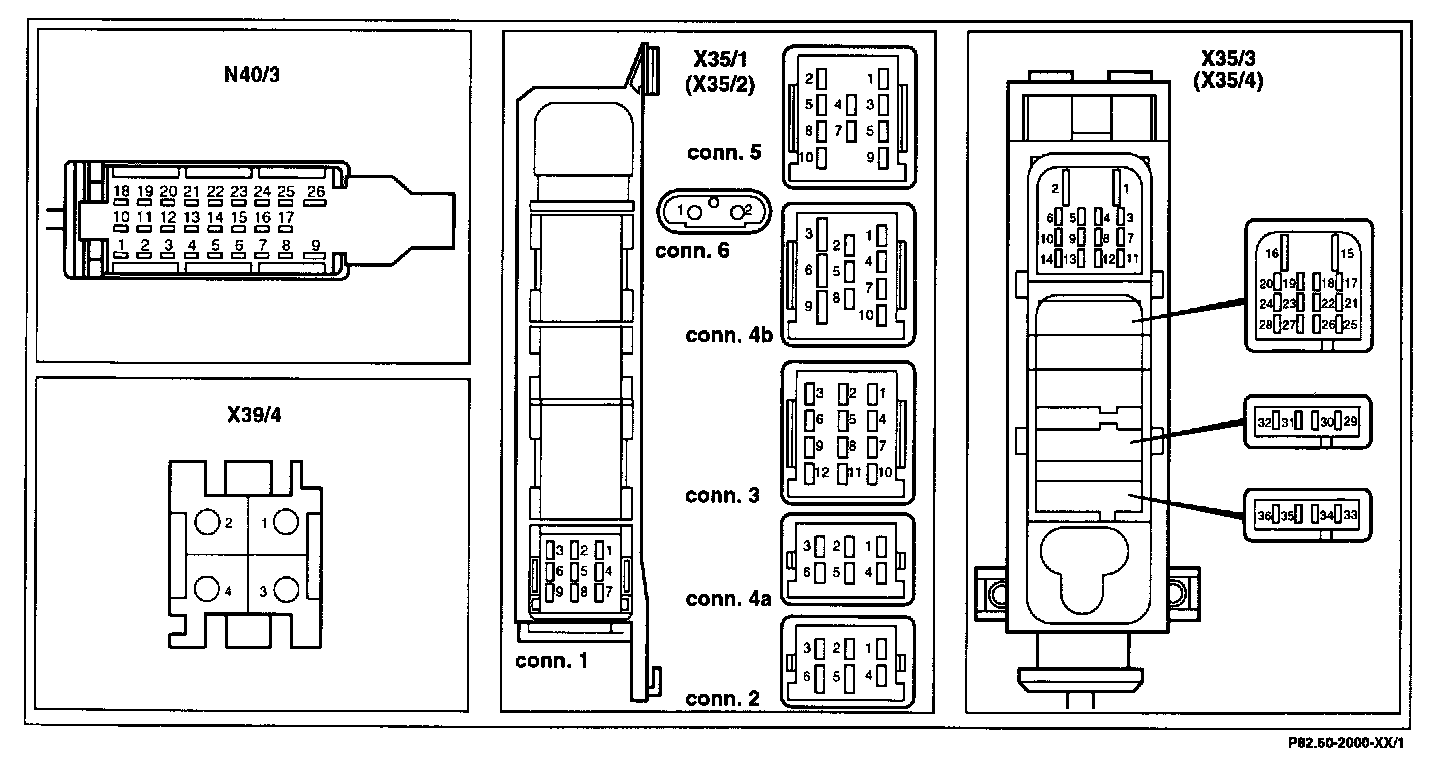

Connector Assignment:

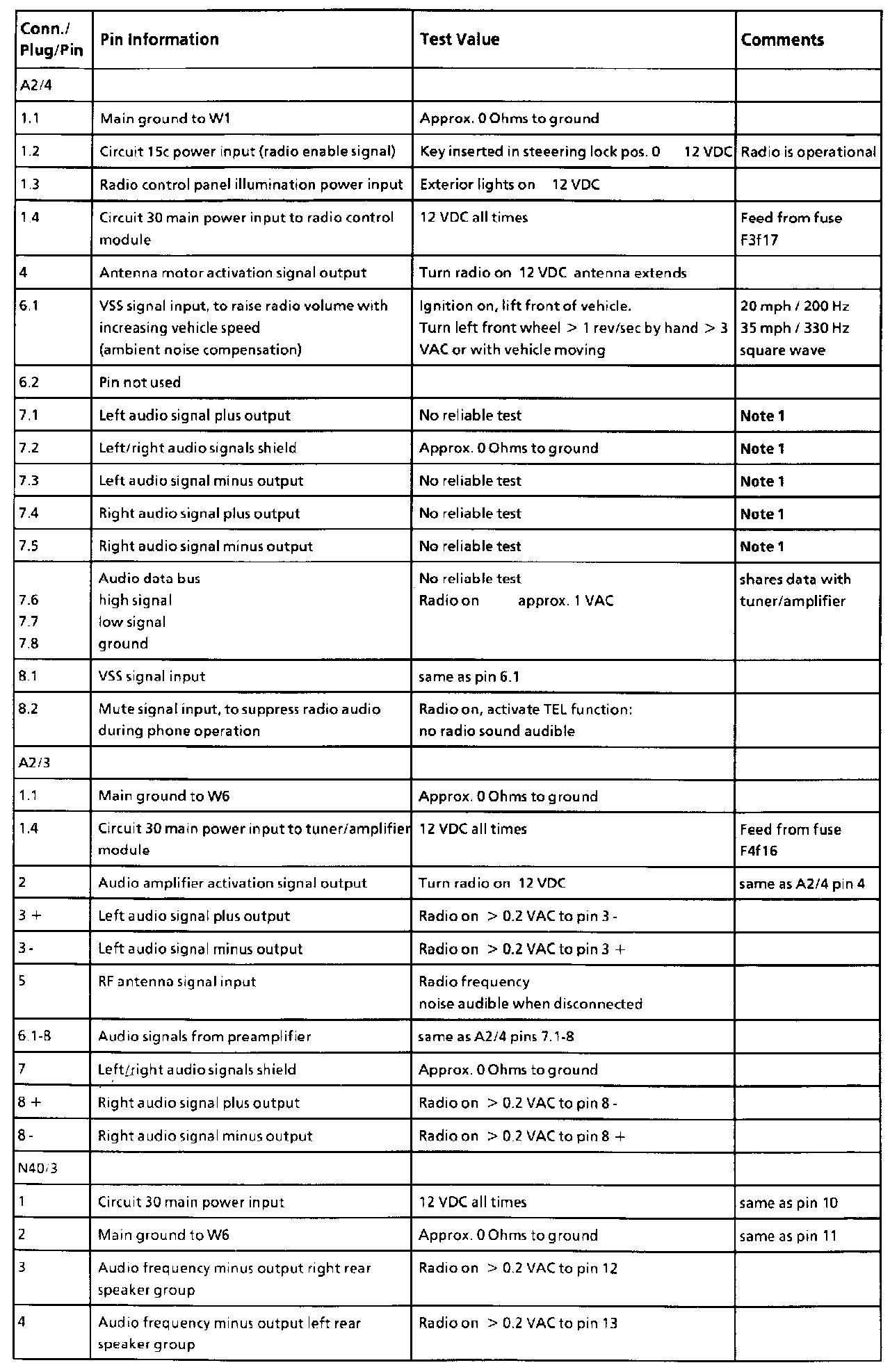

Pin Information, Part 1:

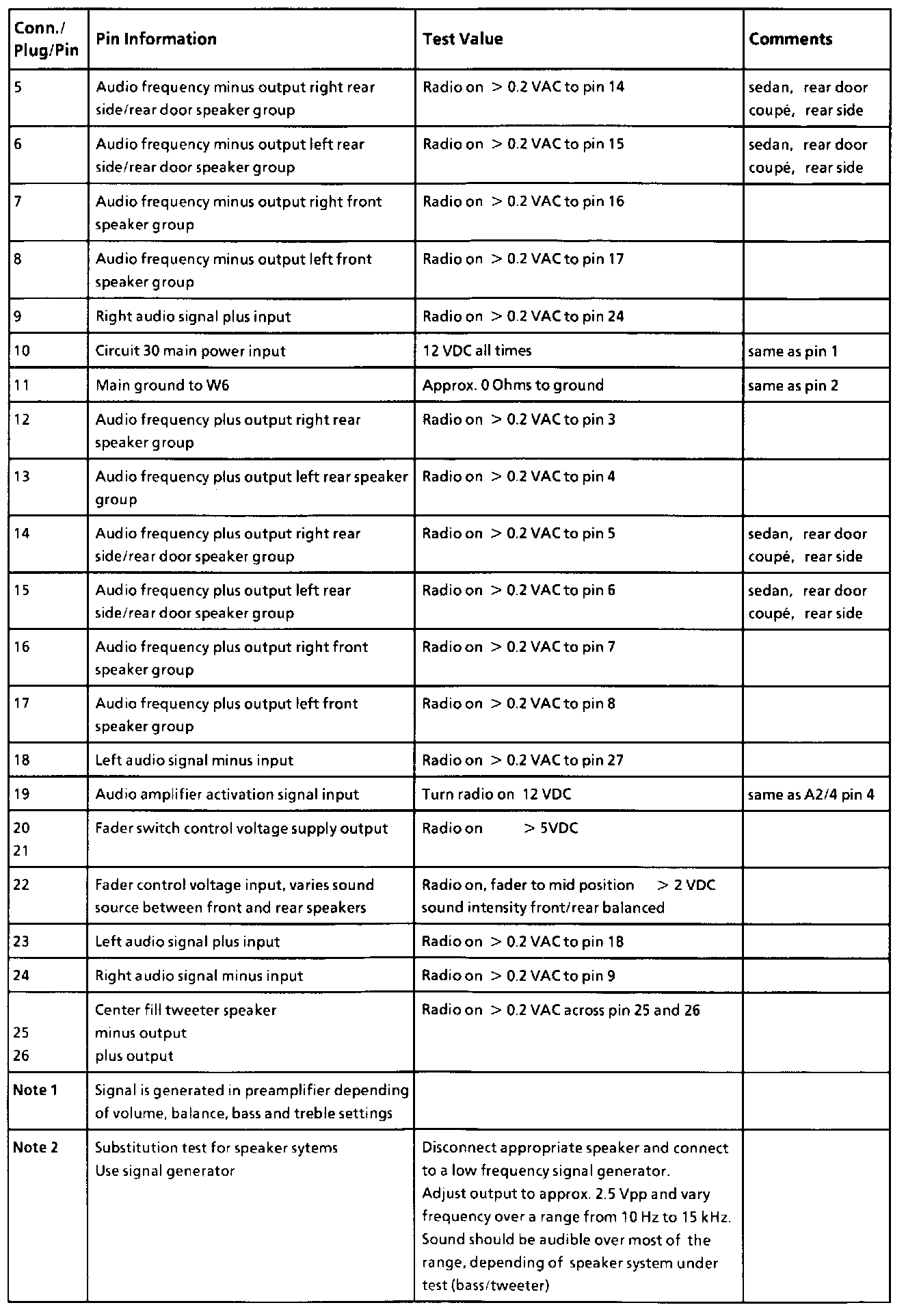

Pin Information, Part 2:
All values measured to ground unless otherwise noted
