Transmission Oil Cooling:

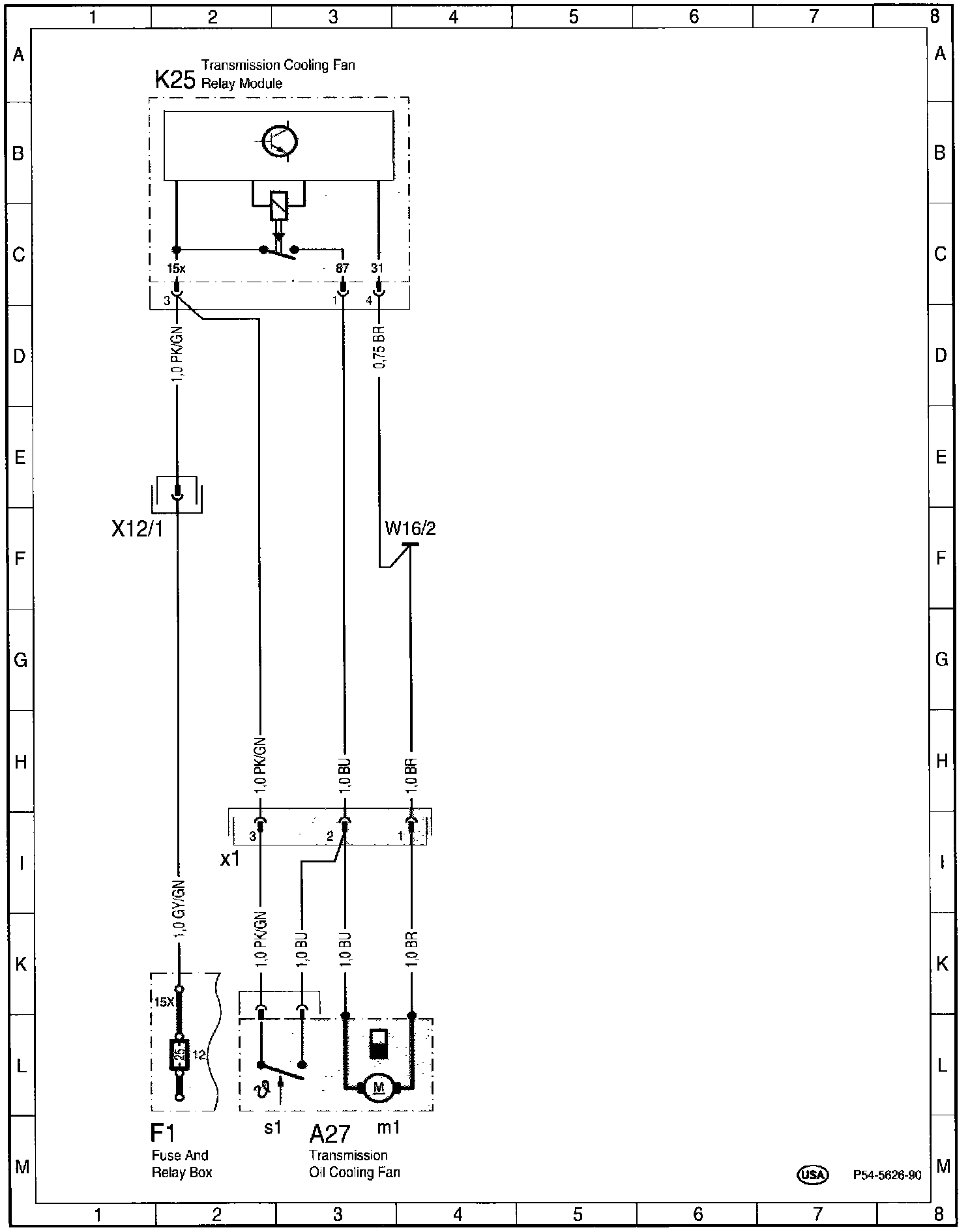

Wiring Diagram

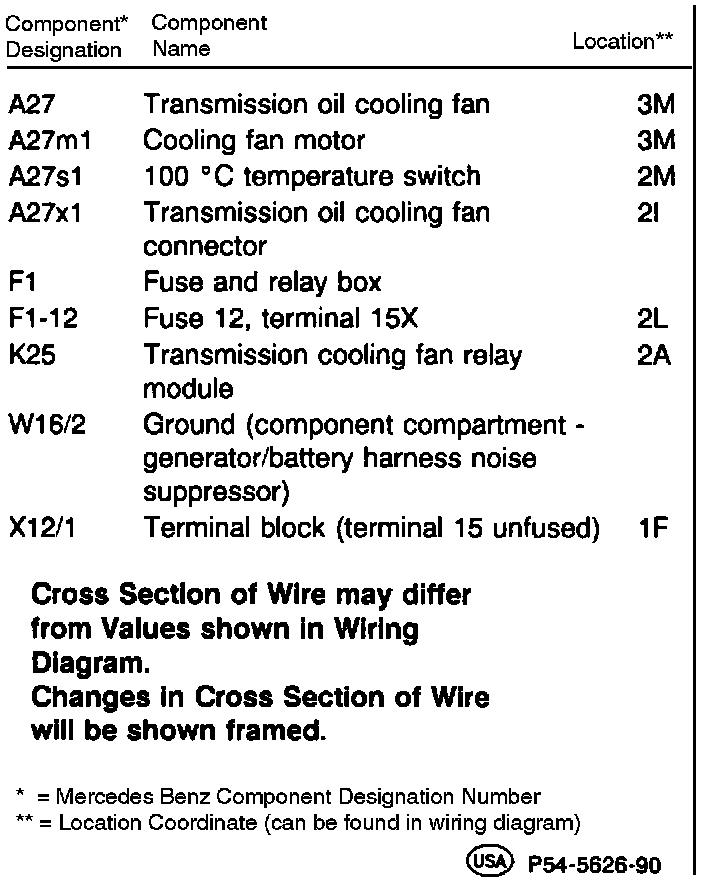

Transmission Oil Cooling - Component Index:
Component Index
