Selector Shaft: Adjustments

NOTE:
Park vehicle On a level surface

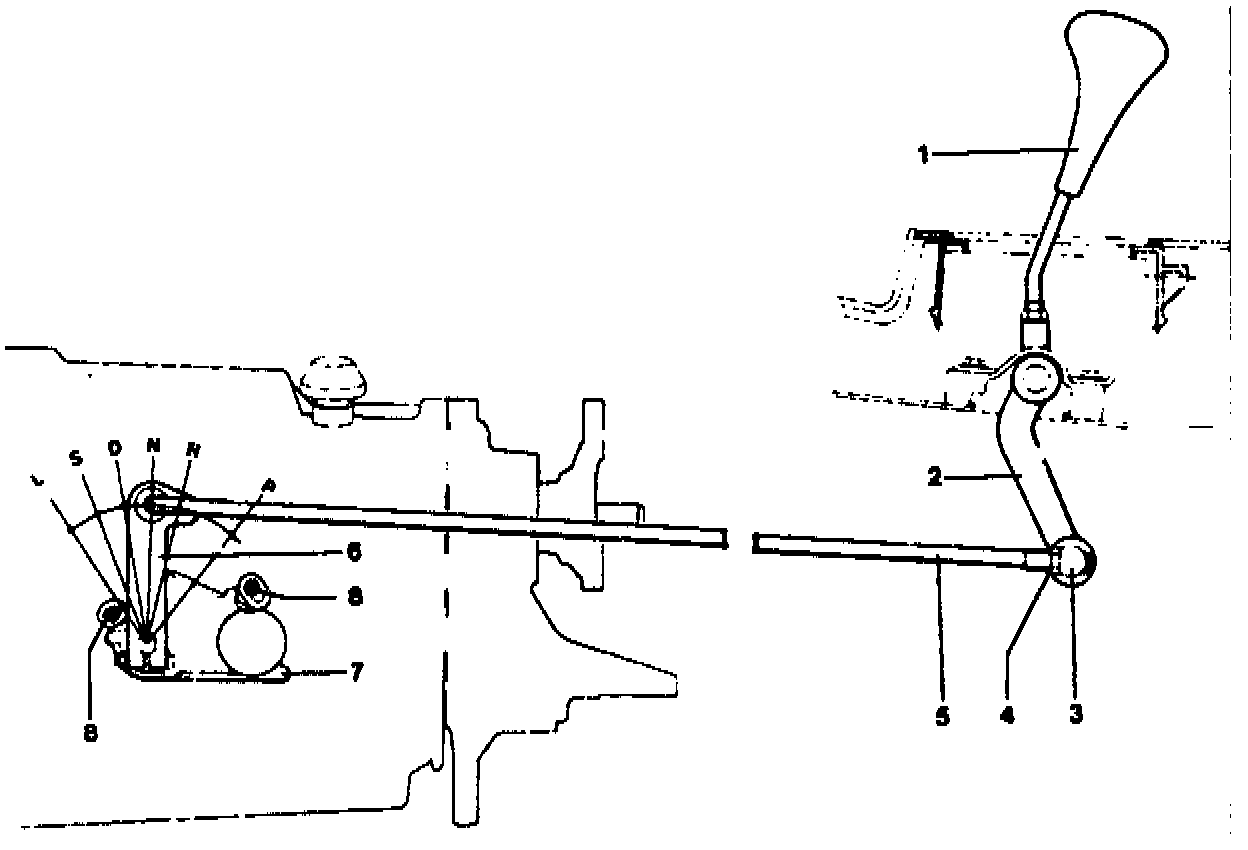

Shift Rod (5) Unhook at selector lever (2).
Range selector lever (6) Move to position "N".
Lock nut (4) Slacken.
Shift Rod (5) Adjust length so that there is approx. 1 mm clearance between the selector lever (1) and the "N" stop on the shift gate.
Shift Rod (5) Hook up.
Lock nut (4) Tighten securely.
