Remove/Install Contact Spiral

Removal and Installation:
- Remove cover below instrument panel.
- Disarm SRS system and remove steering wheel.
- Allow steering wheel lock to engage, with front wheels in straight ahead position.

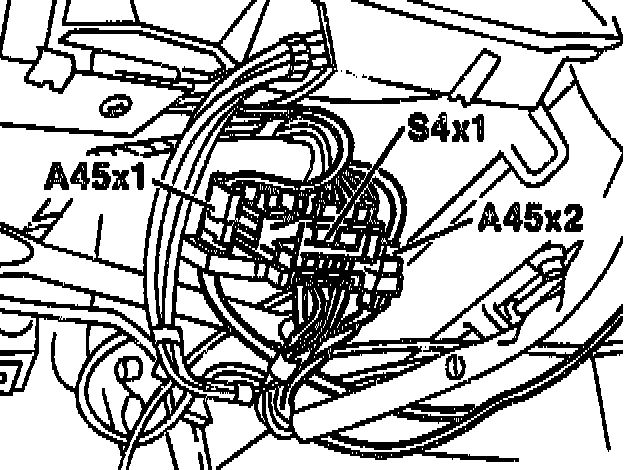

- Disconnect connector, contact spiral/airbag (A45x1). Expose cable.

CAUTION: Observe SRS safety precautions!





- Disconnect connector, contact spiral/fanfare horn relay (A45x2). Expose cable.

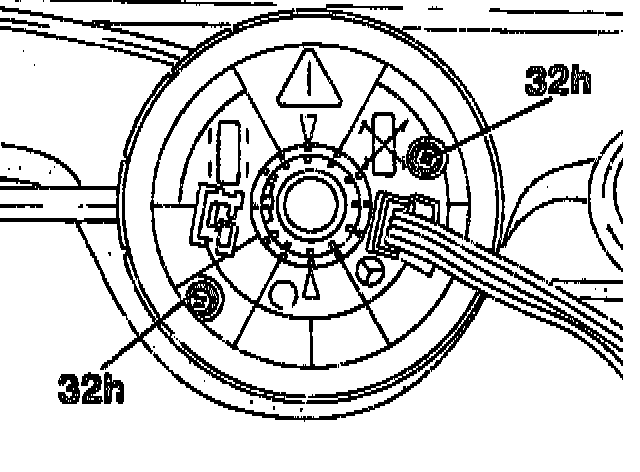

- Unscrew fixing screws (32h) sufficiently so that the contact spiral (A45) can be removed. The fixing screws (32h) are also used to prevent rotation.

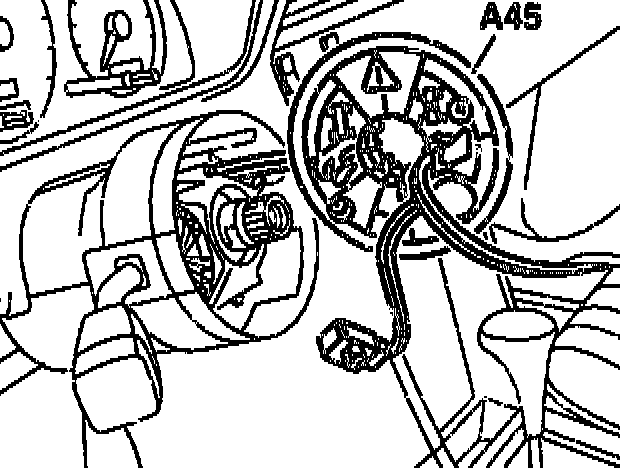

- Carefully remove contact spiral (A45) from jacket tube.

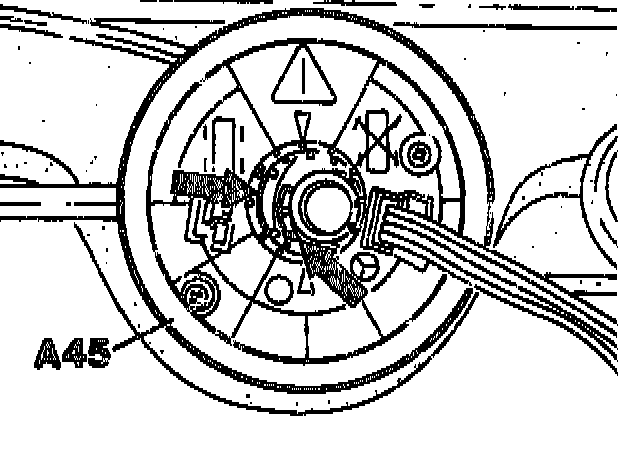

Withdraw cables of contact spiral (A45) through the jacket tube trim. When installing, ensure that the contact spiral (A45) is pushed on up to the stop and the recess (arrow) on the contact spiral (A45) aligns with the fixing lug (arrow) on the steering shaft.

NOTE: On vehicles with ADS, the steering angle sensor is clipped to the underside of the contact spiral and can only be replaced when the contact spiral (A45) is removed.

- Installation is in the reverse of removal.

Dismantling the Contact Spiral:





The upper and lower sections of the contact spiral are clipped together. This connection is only disconnected due to the effect of excessive force or defective assembly. If this is the case, carefully coil up the contact spiral, compress carefully (do not trap the spiral) and re-assign the center position.

WARNING:
- Do not use oils or greases in or on the contact spiral.
- The band must not be installed kinked, use a new contact spiral, if necessary.

Center Position of Contact Spiral:





The center position of the contact spiral is decisive for the satisfactory function of the airbag and signalling system. When removed, it is guaranteed by the fixing screws.

If however the contact spiral has been turned, e.g.
- when the steering coupling was removed,
- by unscrewing the fixing screws completely,
the center position is to be determined as follows:

1. Screw the fixing screws fully into the contact spiral.
2. Turn contact spiral clockwise until a resistance is detectable.
3. Turn contact spiral approx. 2 - 2.5 rotations anti-clockwise (turn back) until the fixing screws can be unscrewed again and fix the contact spiral.
