Home >> Mercedes Benz >> 1993 >> 300E (124.032) L6-3.2L (104.992) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Throttle Cable/Linkage >> Service and Repair

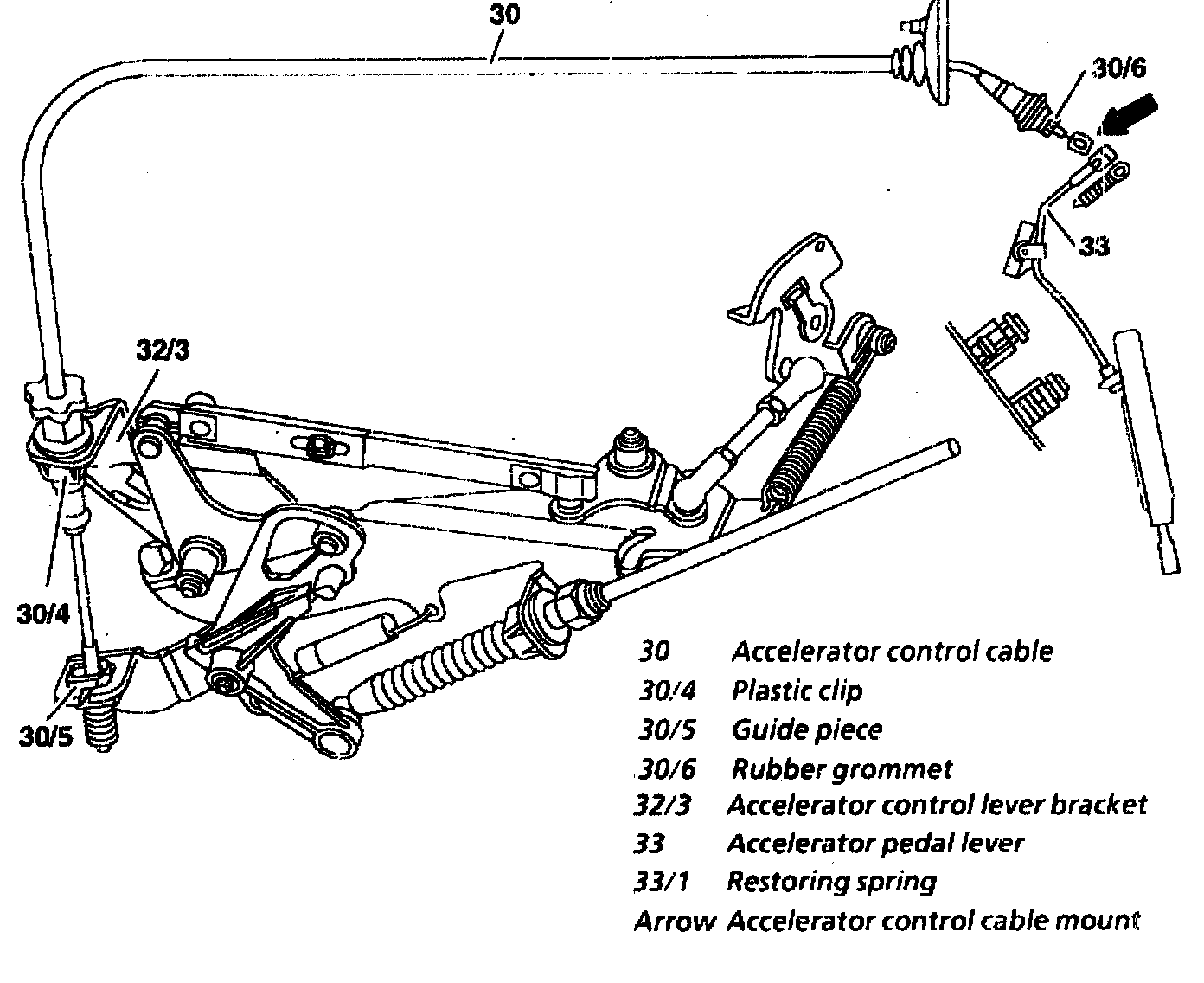

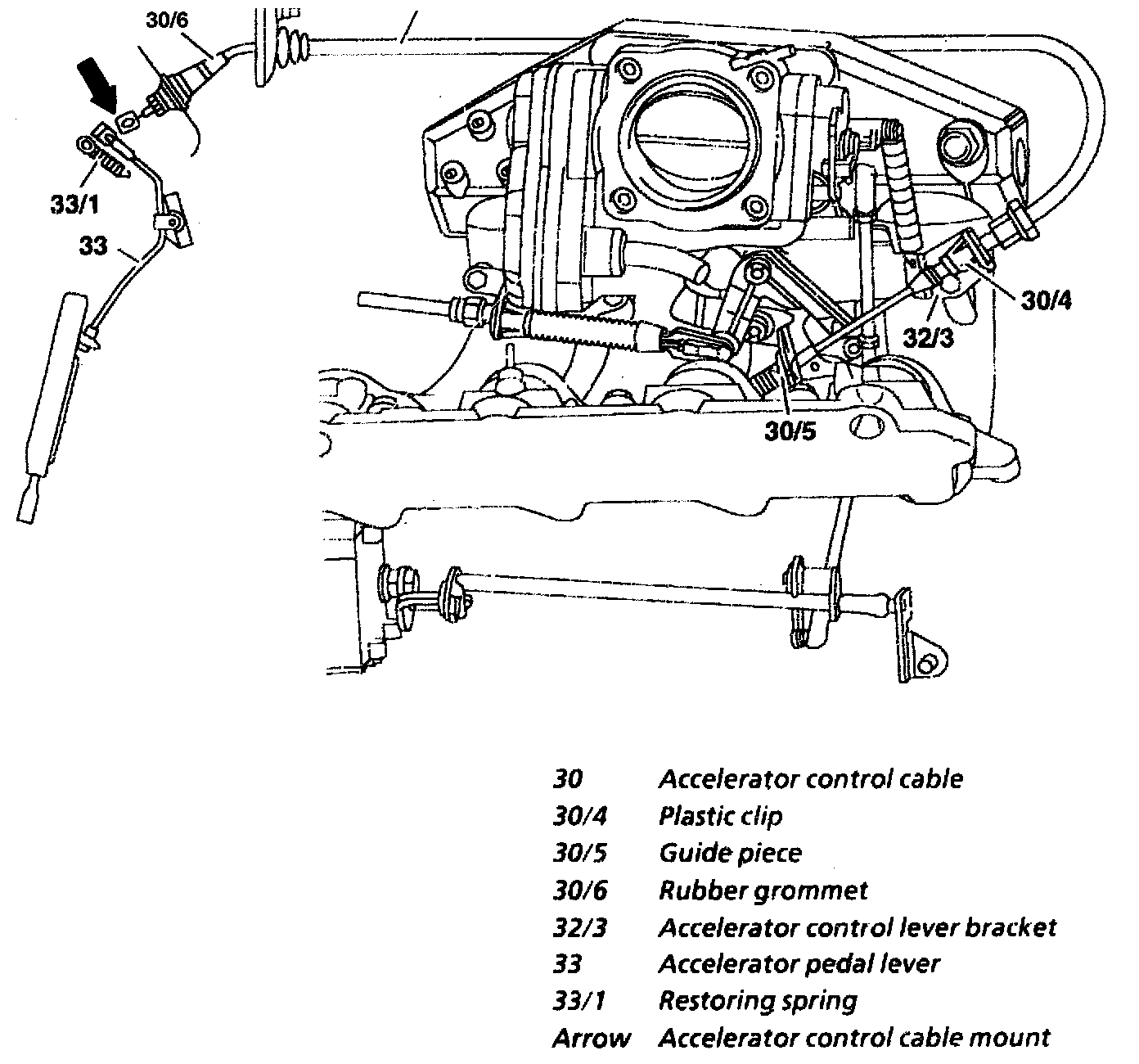

Throttle Cable/Linkage: Service and Repair








Engine 104






Engine 111

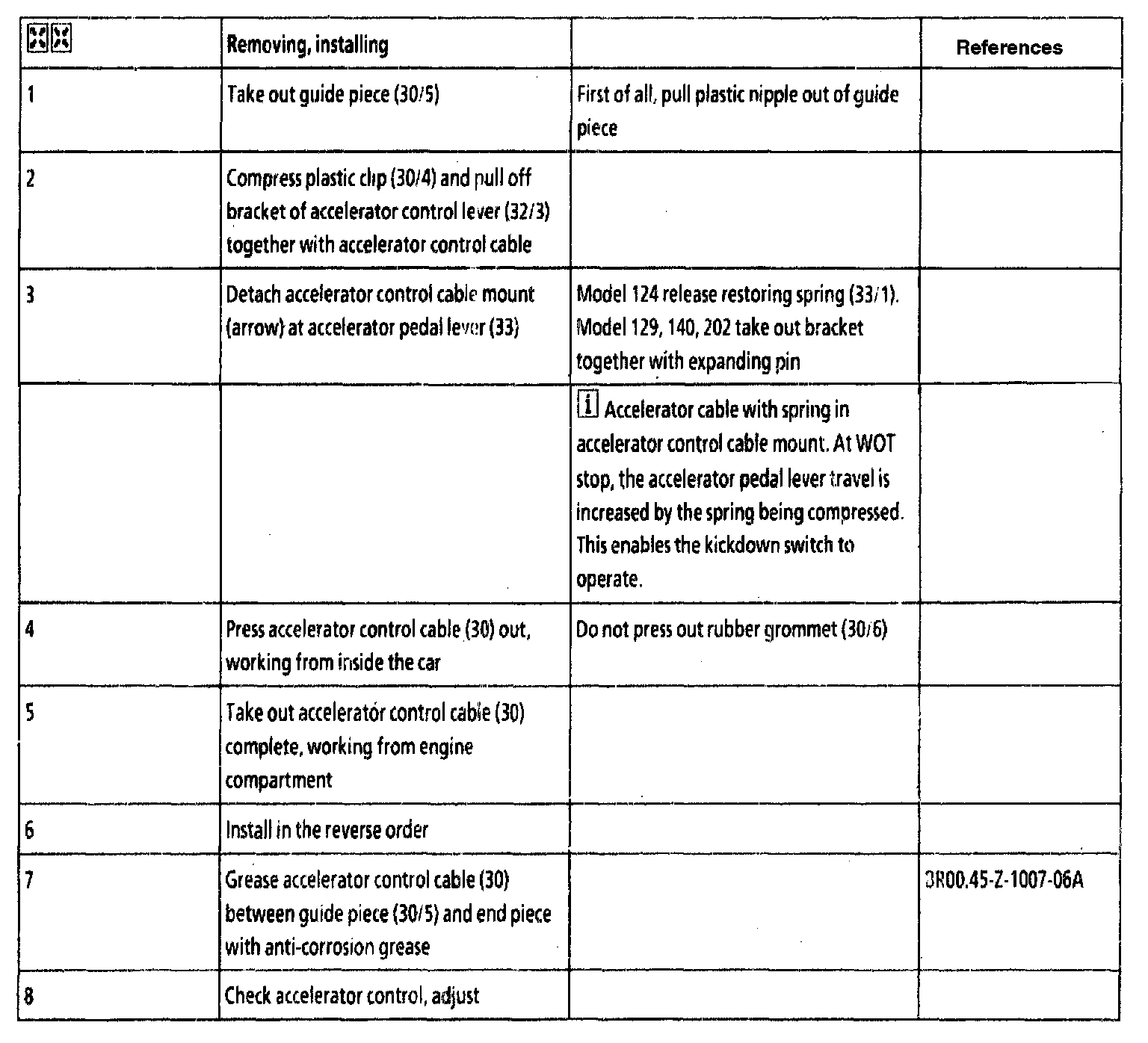

Removing, installing

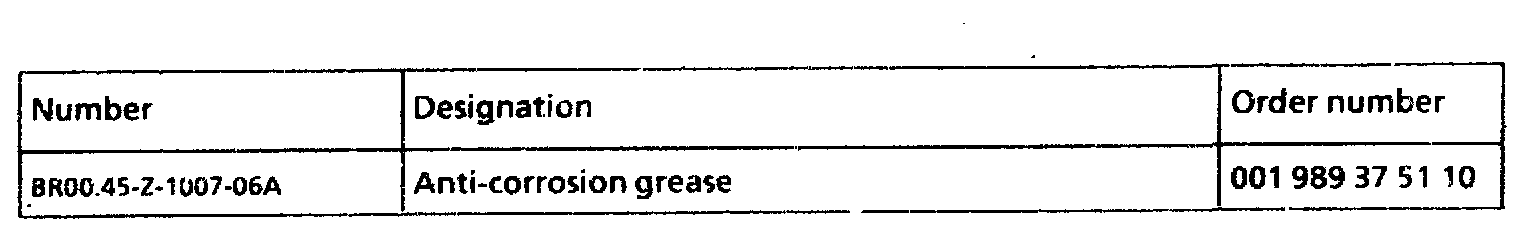

References (BR), Repair products
