Fuel Pressure Regulator: Service and Repair

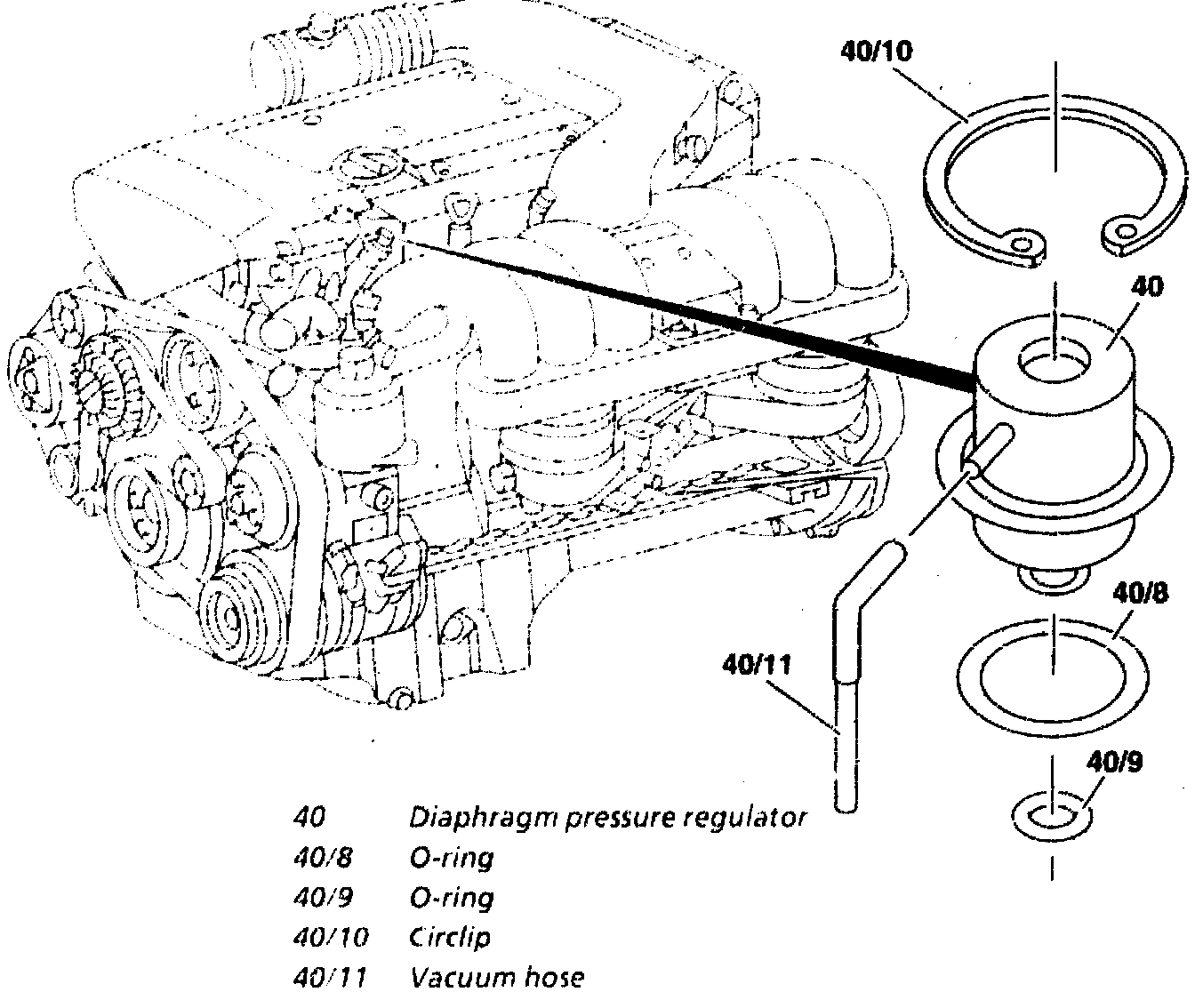

Component Identification, Shown on engine 104

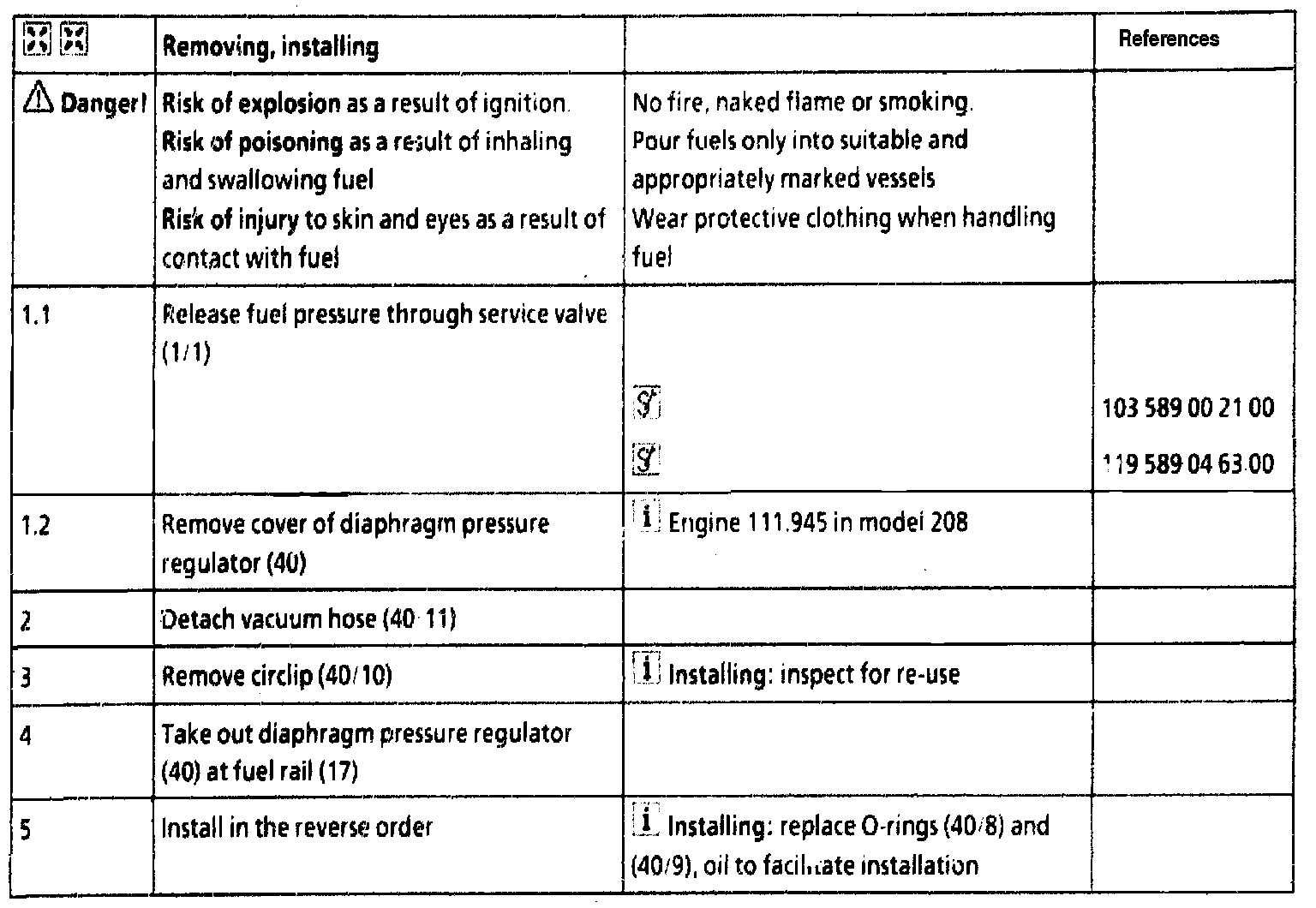

Removing, installing

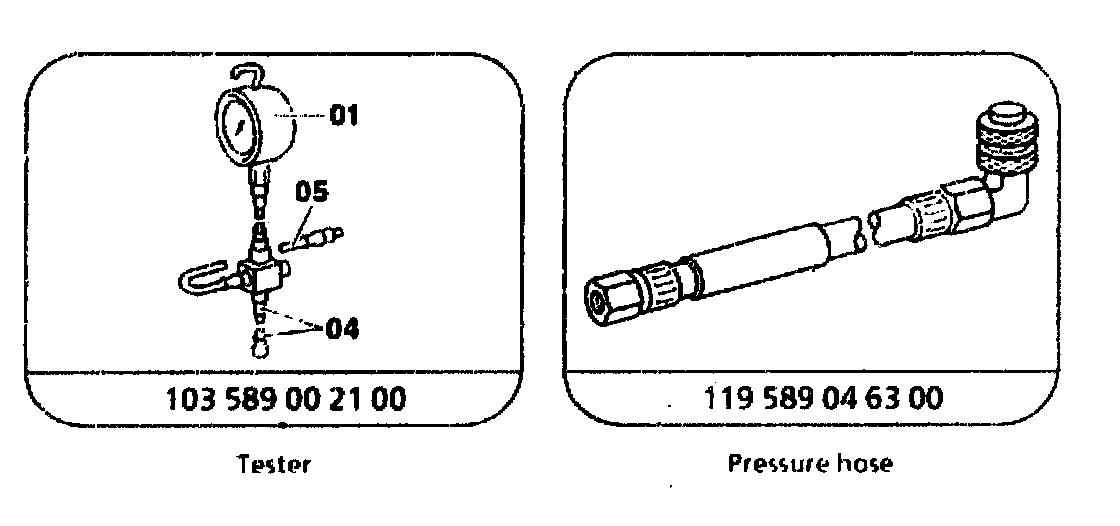

References, Special tools
