Fuel Pressure Check Valve: Service and Repair

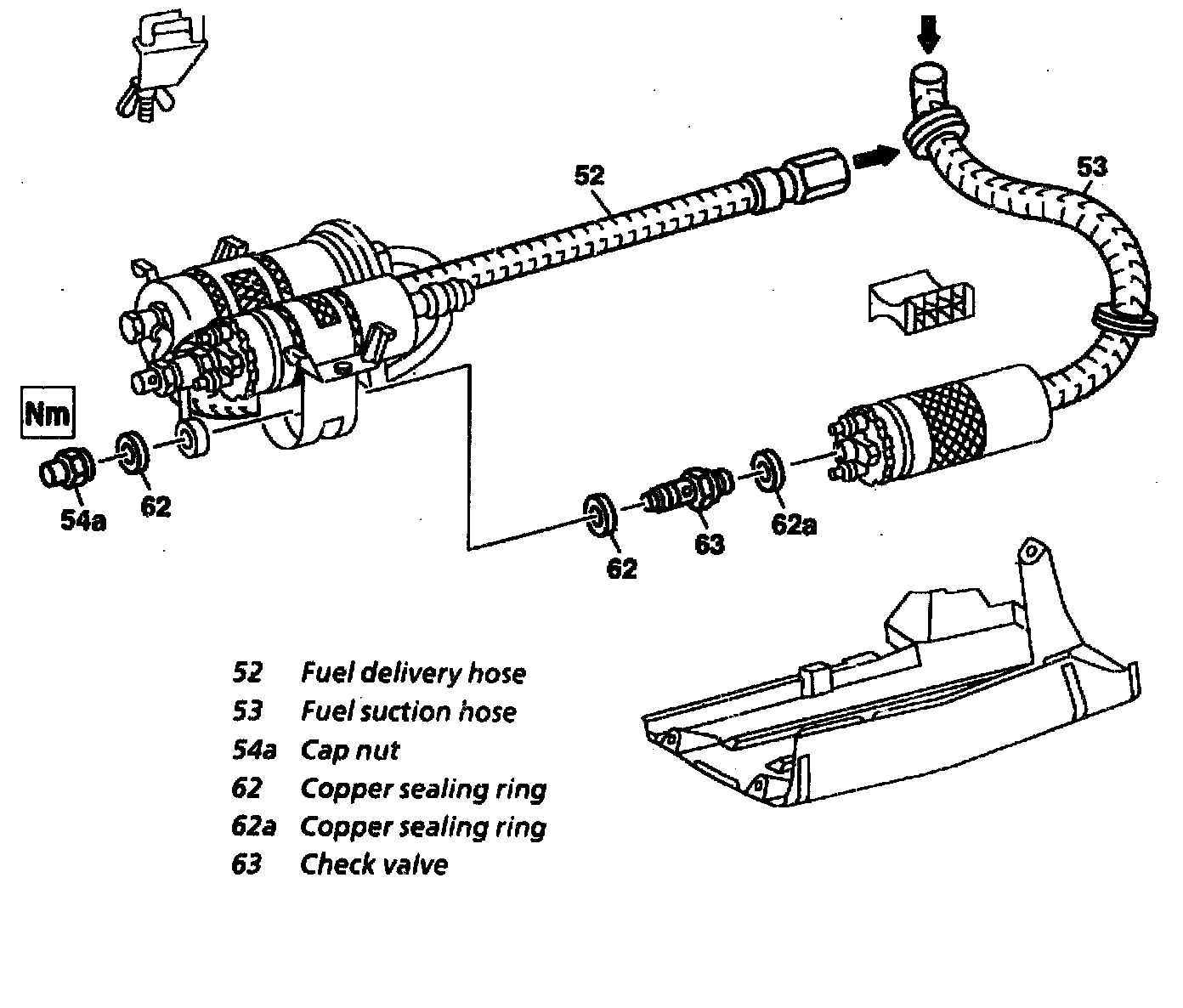

Component Identification
Shown on model 126 sedan

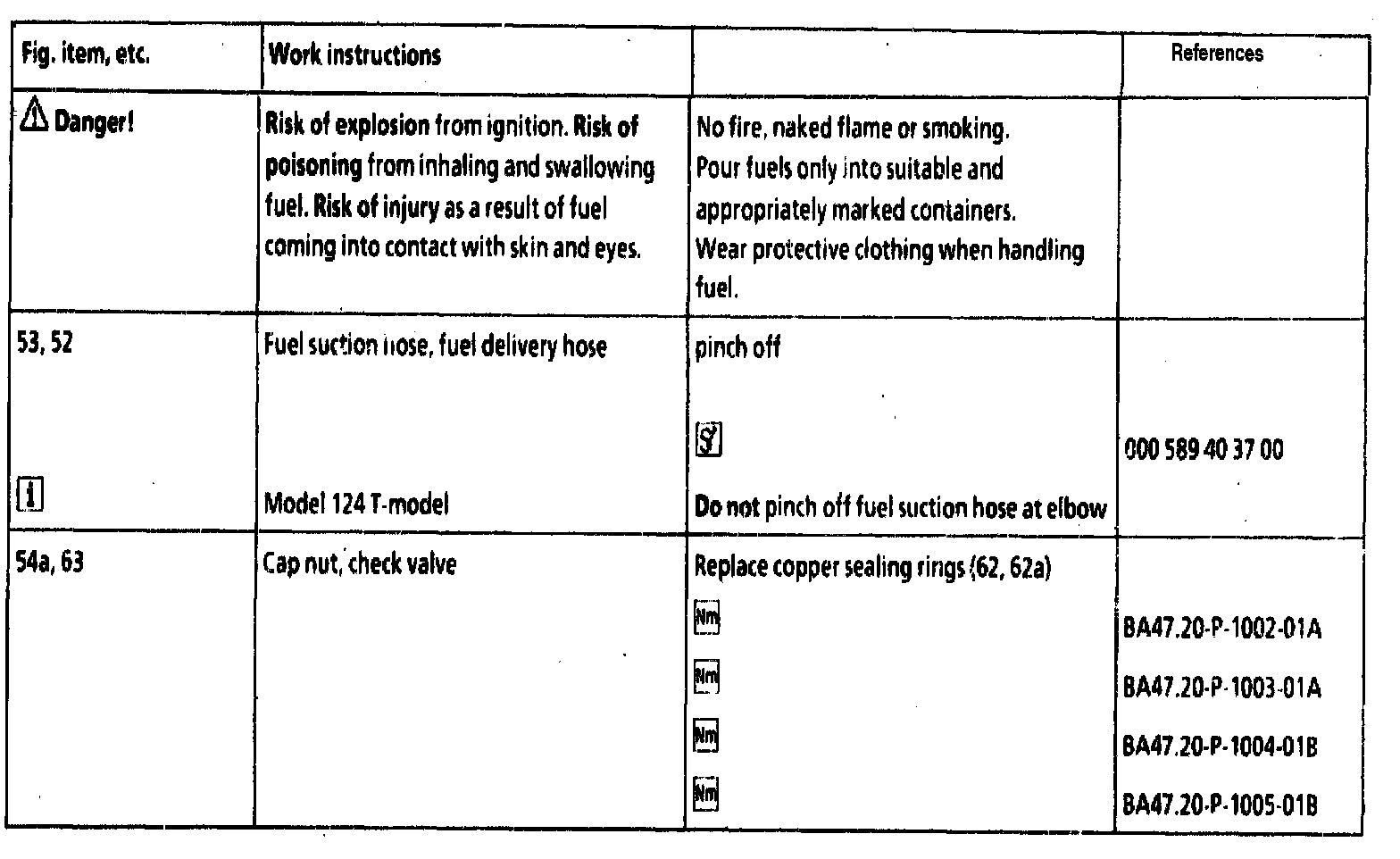

Work instructions

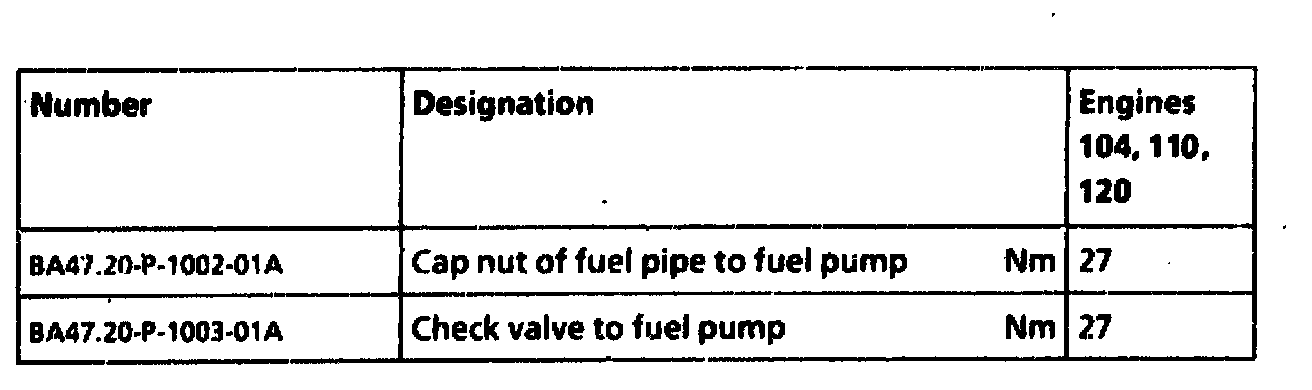

References (BA), Fuel pump, Part 1 of 2

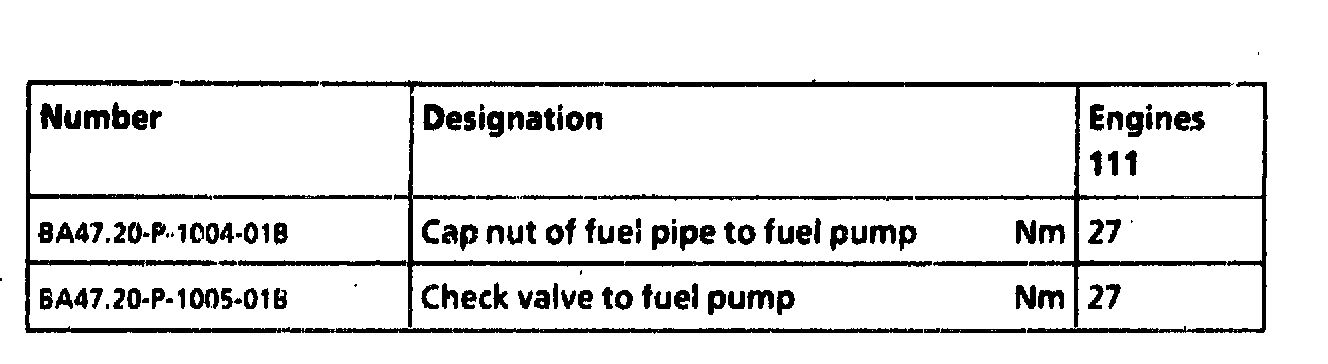

References (BA), Fuel pump, Part 2 of 2


Clamp:





References, Special tools
