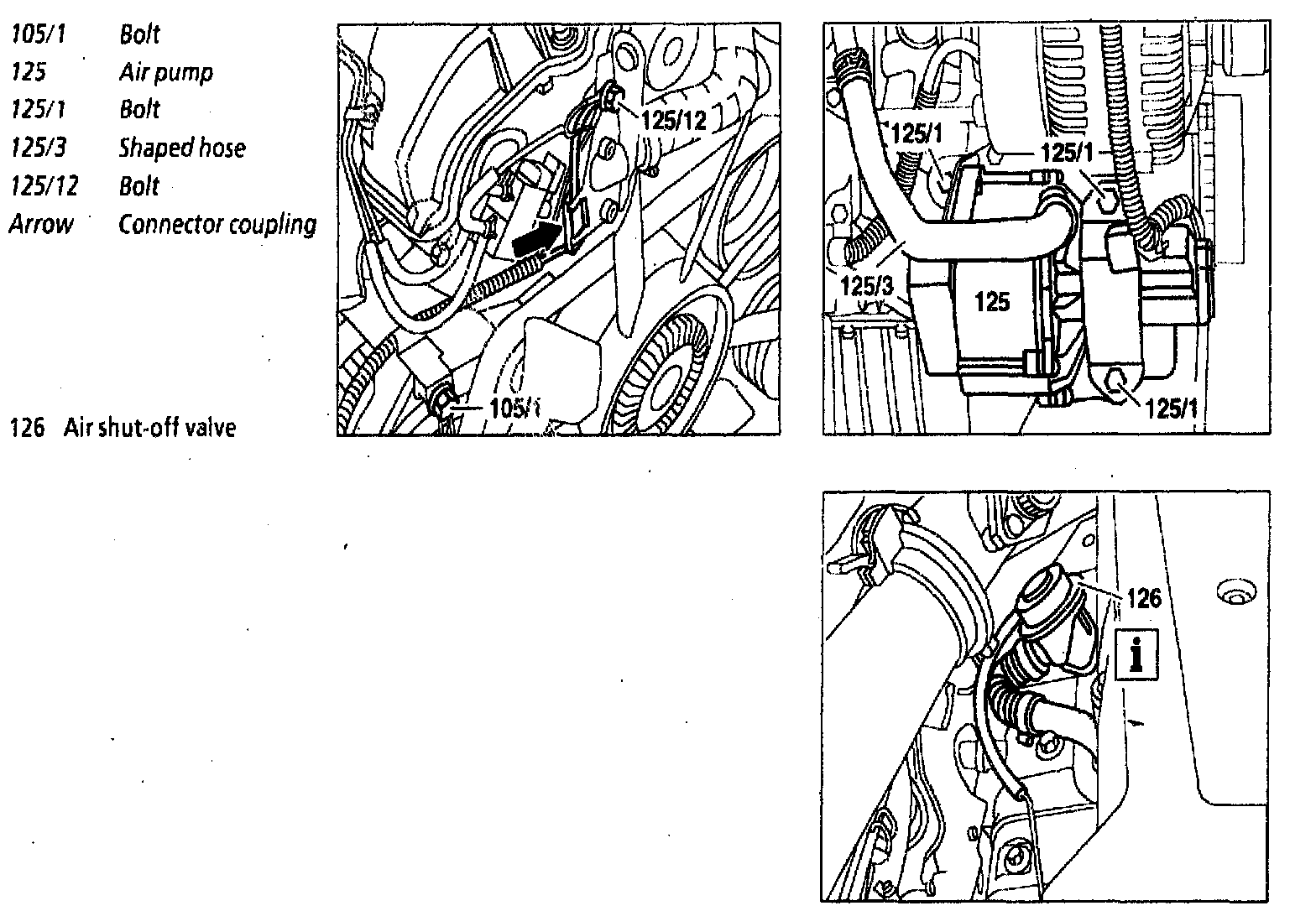

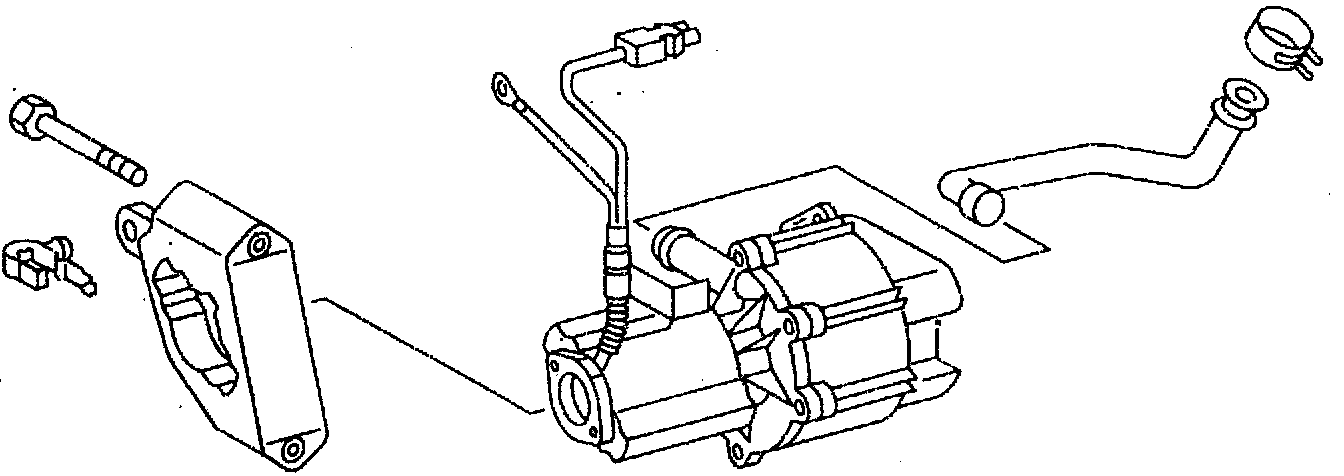

Air Injection Pump: Service and Repair










Models 124, 129, 140





Models 202, 208





Models 202, 208, 210

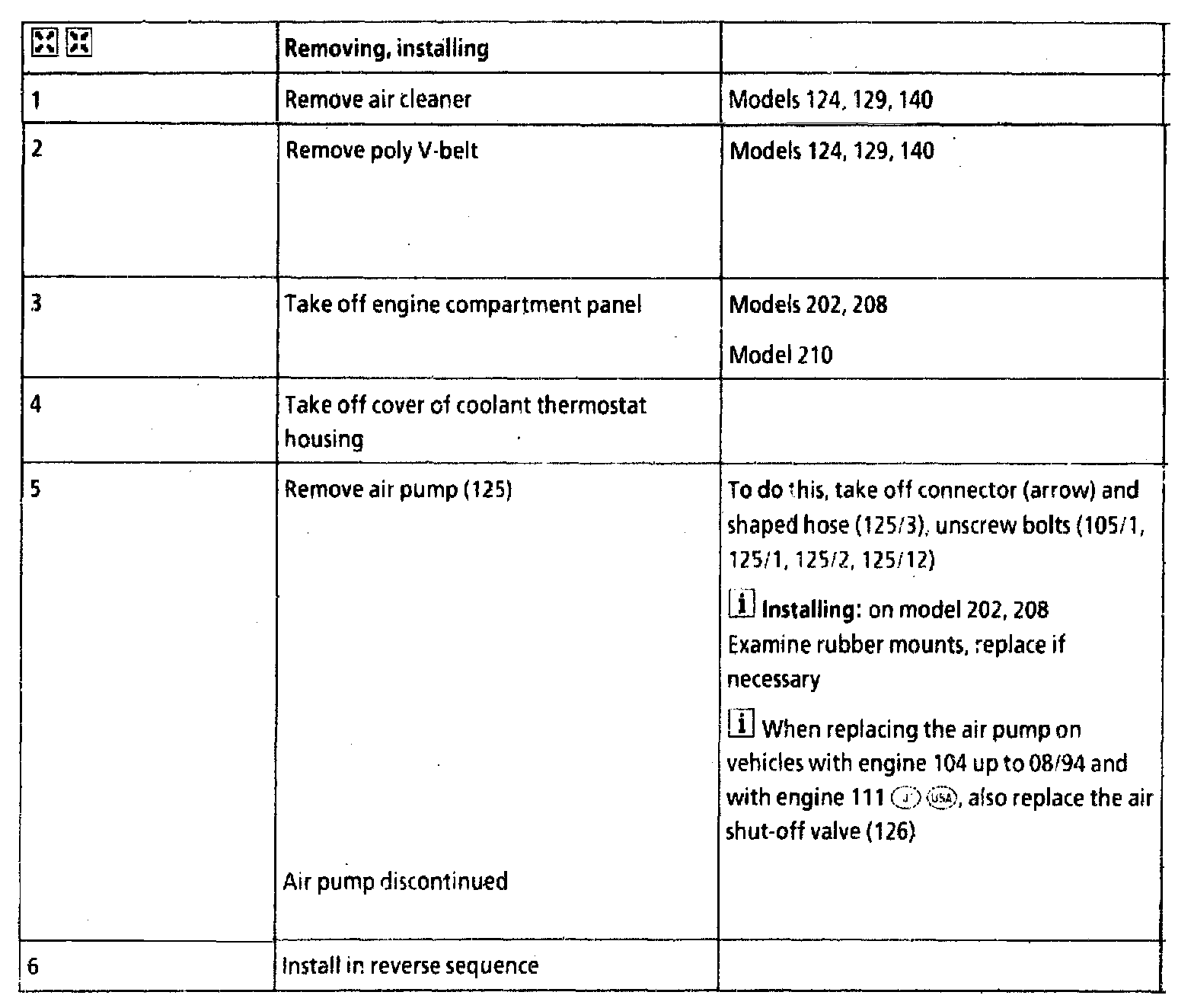

Removing, installing
