Home >> Mercedes Benz >> 1993 >> 300E (124.032) L6-3.2L (104.992) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Air Injection >> Air Injection Pump Clutch >> Description and Operation

Air Injection Pump Clutch: Description and Operation

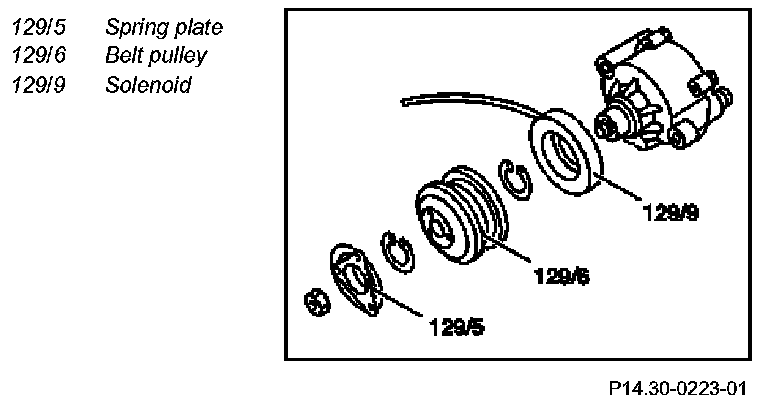

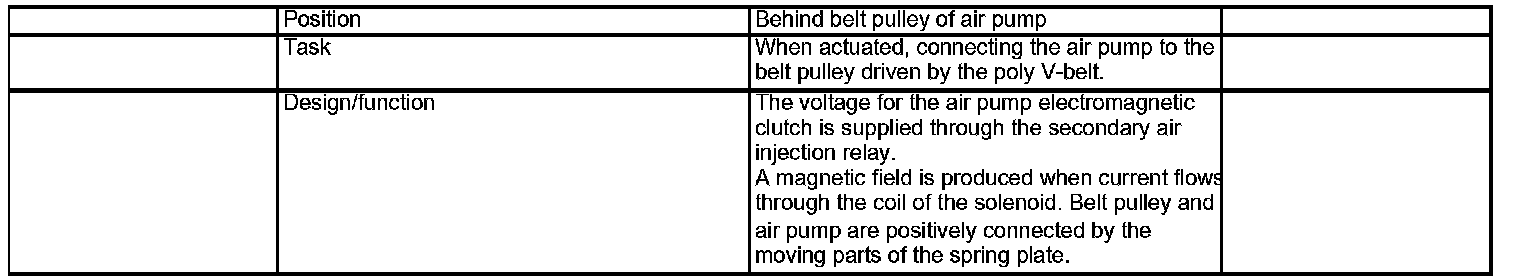

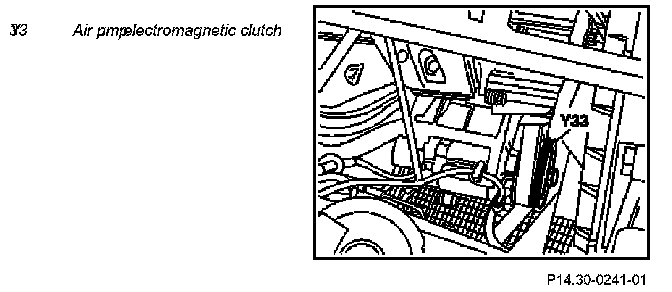

GF14.30-P-3104F Air Pump Electromagnetic Clutch Position/Task/Design/Function
