Curiosii for ever!: Car repair manuals for everyone.
Home >> Mercedes Benz >> 1993 >> 300E (124.032) L6-3.2L (104.992) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Test Procedures >> Automatic Air Conditioning (Auto A/C) >> Checking Electric Components of the Automatic Climate Control >> Tests 20/21

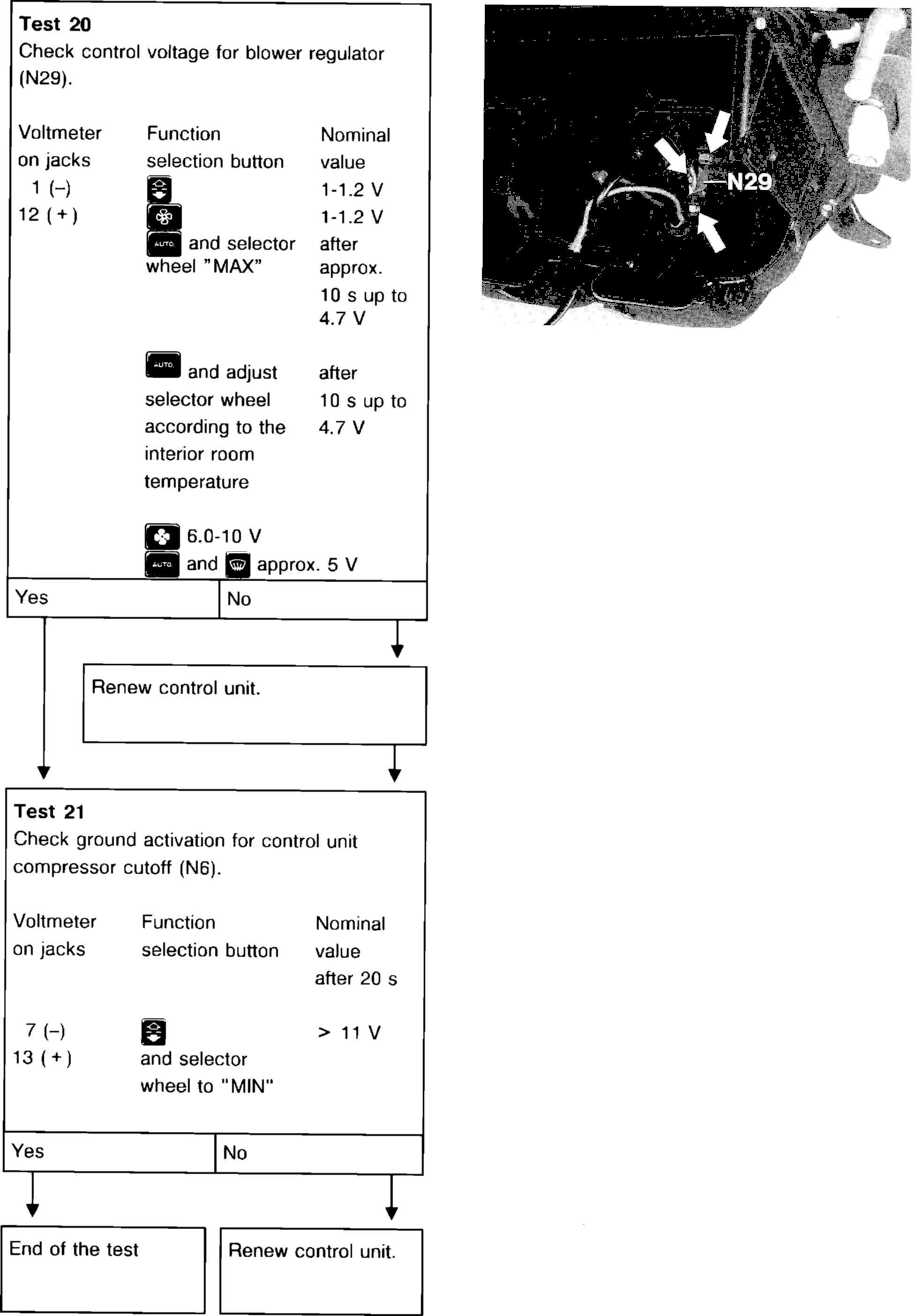

Tests 20/21

System Test 20/21:
