Home >> Mercedes Benz >> 1993 >> 300E (124.032) L6-3.2L (104.992) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Test Procedures >> Automatic Air Conditioning (Auto A/C) >> Checking Electric Components of the Automatic Climate Control >> Tests 14/15

Tests 14/15

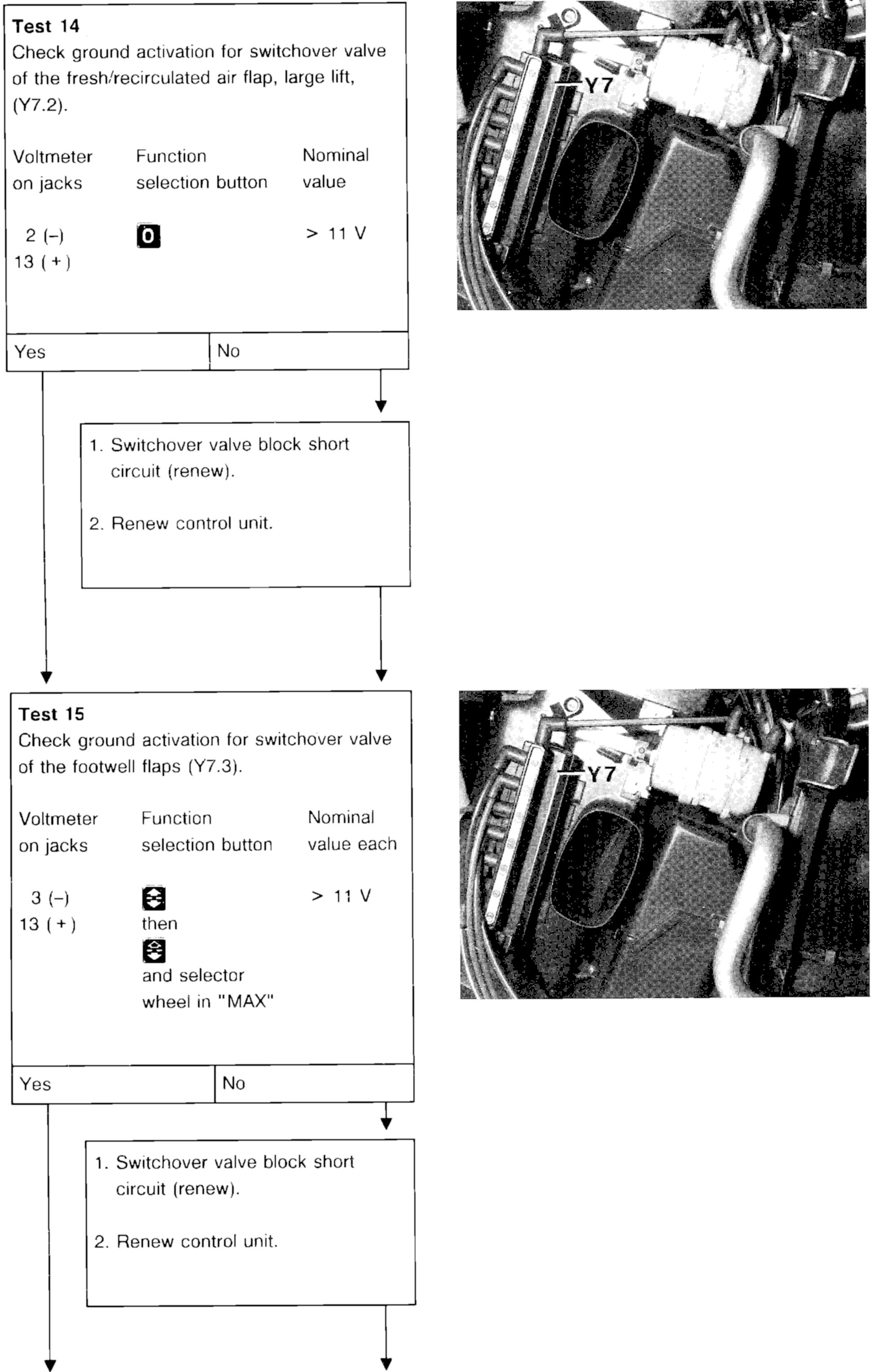

System Test 14/15:
