Mercedes Benz
>>
1993
>>
300E (124.032) L6-3.2L (104.992)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
Power and Ground Distribution

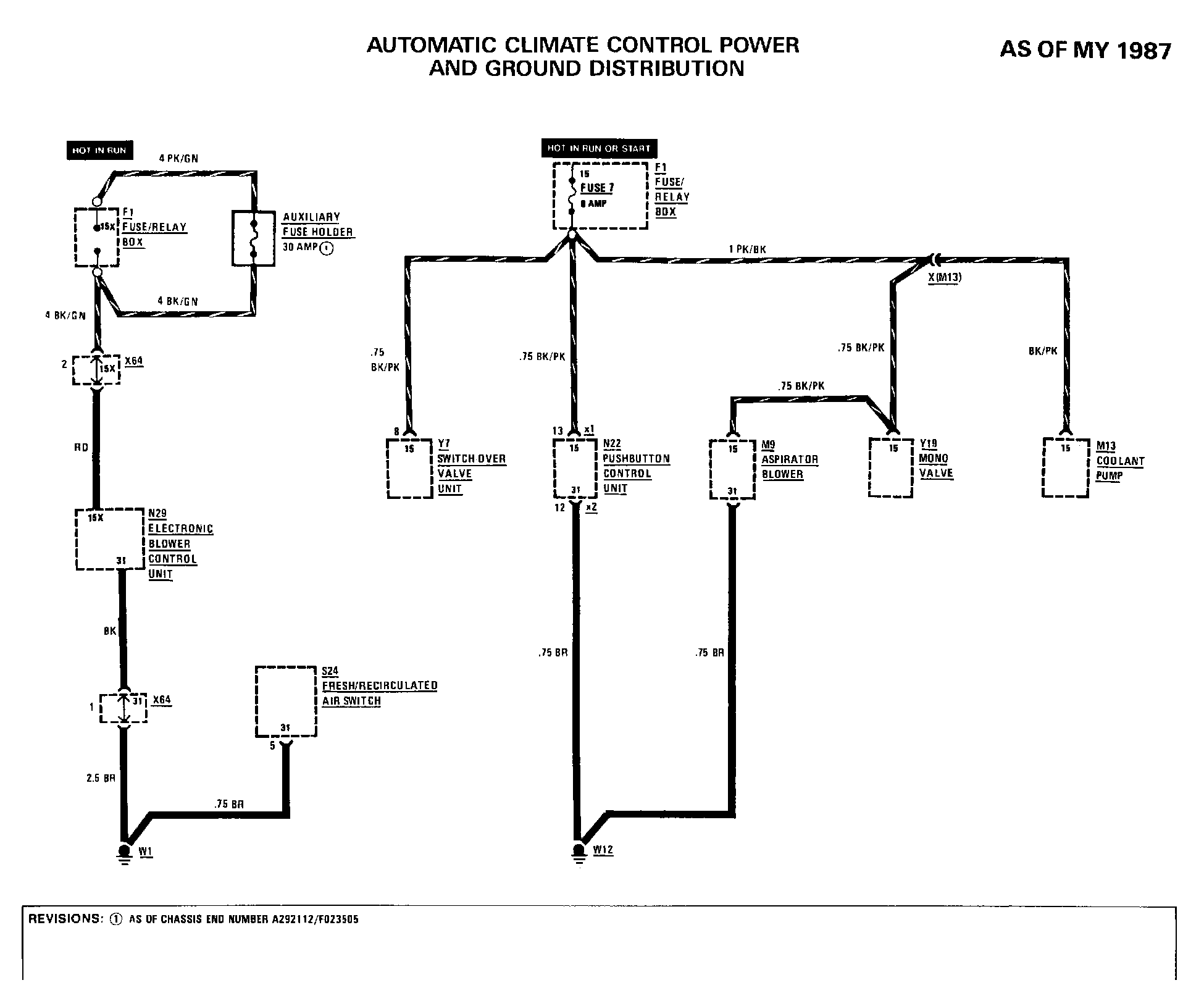

ACC Power And Ground Distribution:
