Home >> Mercedes Benz >> 1993 >> 300E (124.032) L6-3.2L (104.992) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Intake Manifold >> Diagrams

Intake Manifold: Diagrams

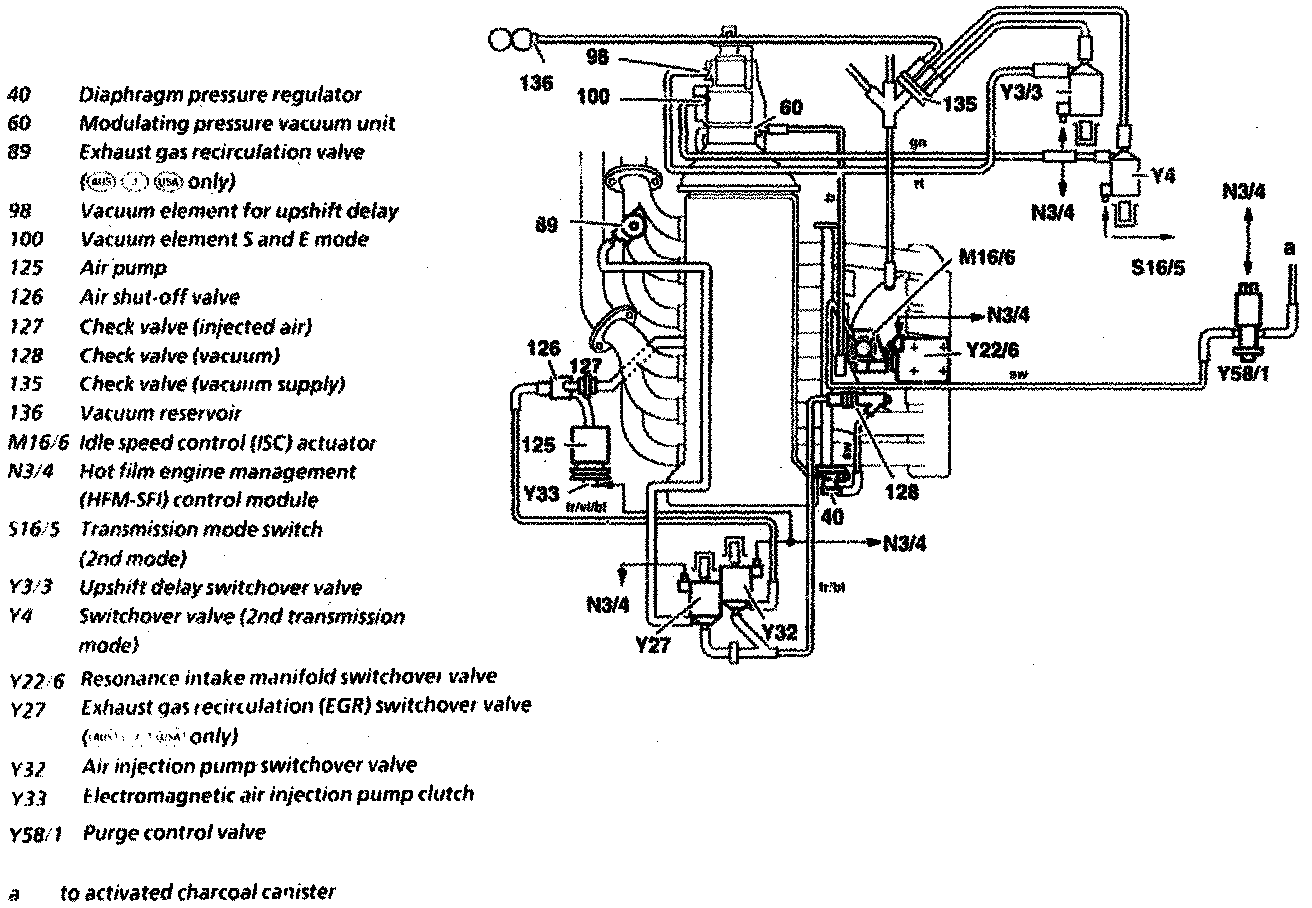

Connecting Diagram For Intake Manifold:
