Removal and Replacement

Removal and Installation of Front Bumper

Removal, installation

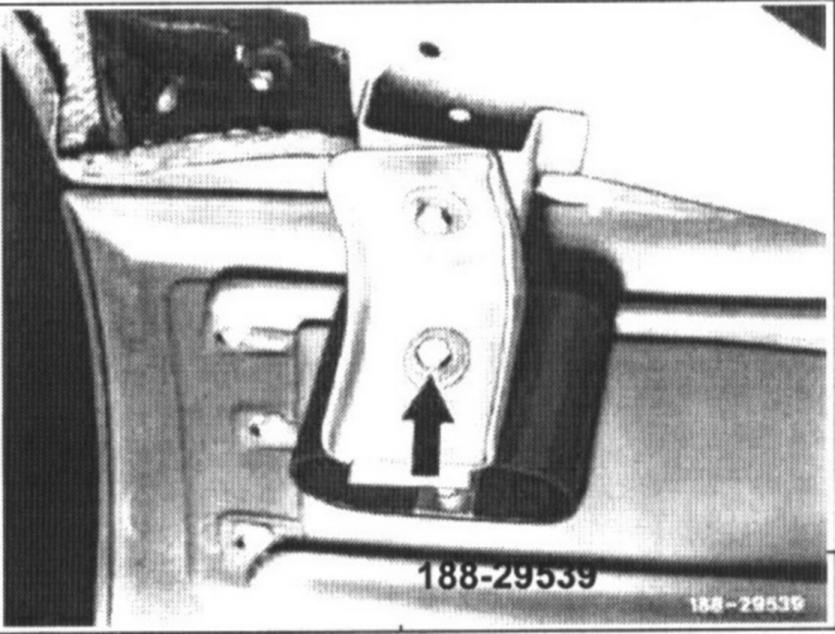

1. Unscrew screw on lateral holder left and right

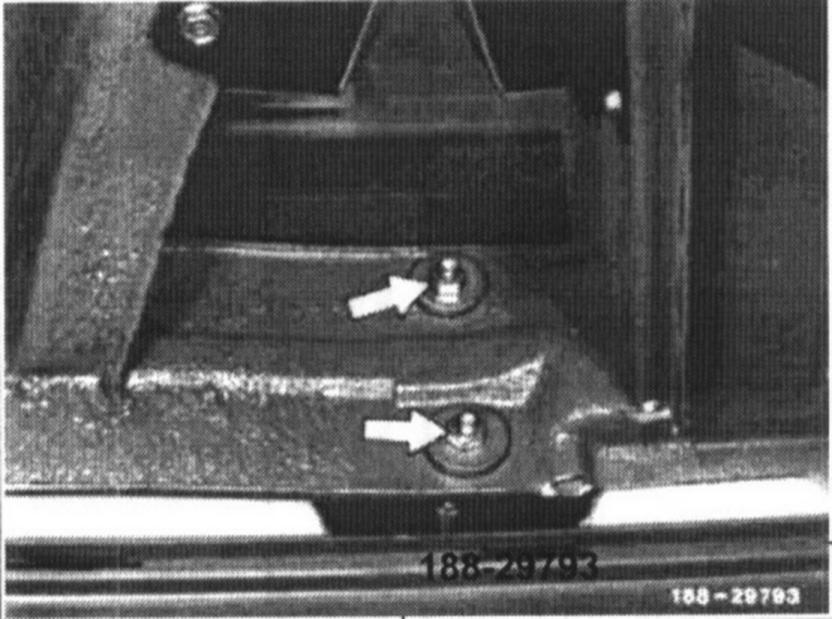

2. Unscrew both fastening nuts left and right on side member.

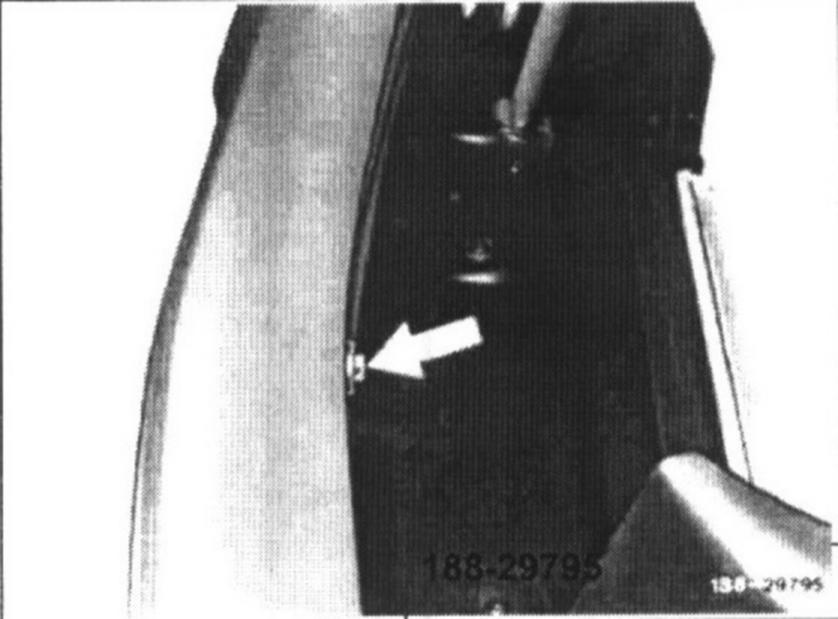

3. Remove screw in center of bumper and remove bumper in forward direction
4. For installation proceed in reverse order.
