Work Procedure

Date: January 1995

Group: 42

Number: 330

SUBJECT: MODELS 140.04/05/07
REPLACEMENT OF LEFT AND RIGHT REAR BRAKE CALIPERS

On vehicles contained in the Effective Serial Number Range List (SA 95-0113), the left and right rear brake calipers must be replaced. See SA 95-0113 for additional details.

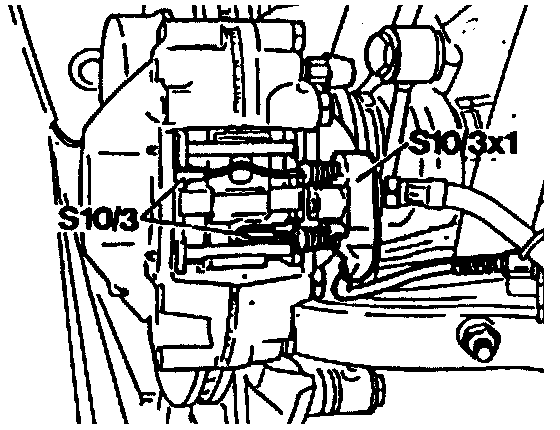

Figure 1:

1. Disconnect and remove brake pad wear sensors (S10/3, S10/4. Figure 1).

2. Remove brake pads.


Warranty Claim Submission Information

Operation:
Brake calipers, rear left & right, Replace (42 5141)
( incl. Rear wheels, R&R [40 1590] and Rear brake pads, R&R [42 2967] )

Campaign No. 95-0113
Damage Code: 42 920 05
Repair Code: 11
Time (hrs.): 1.7
Model Indicator(s): A7, A3, A4, A8

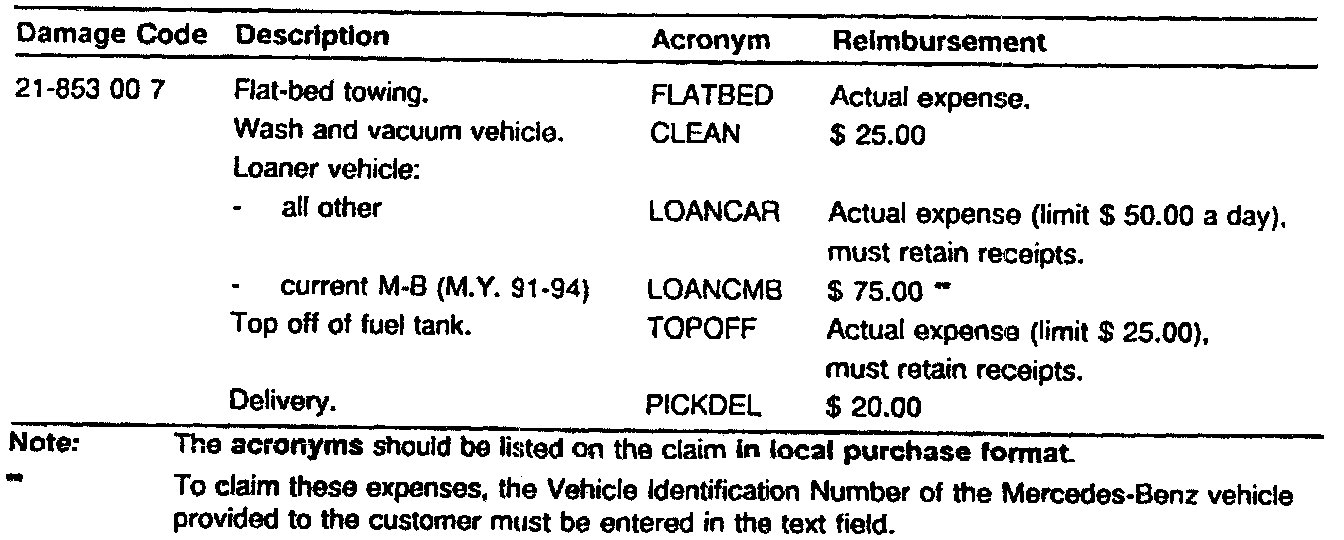

Associated Warranty Claim Submission Information

Warranty Claim Submission Information:

Note:
A separate additional claim is required for reimbursement of customer care related measures.
