Home >> Mercedes Benz >> 1992 >> 400SE (140.042) V8-4.2L (119.971) >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Control Module >> Locations

Ignition Control Module: Locations

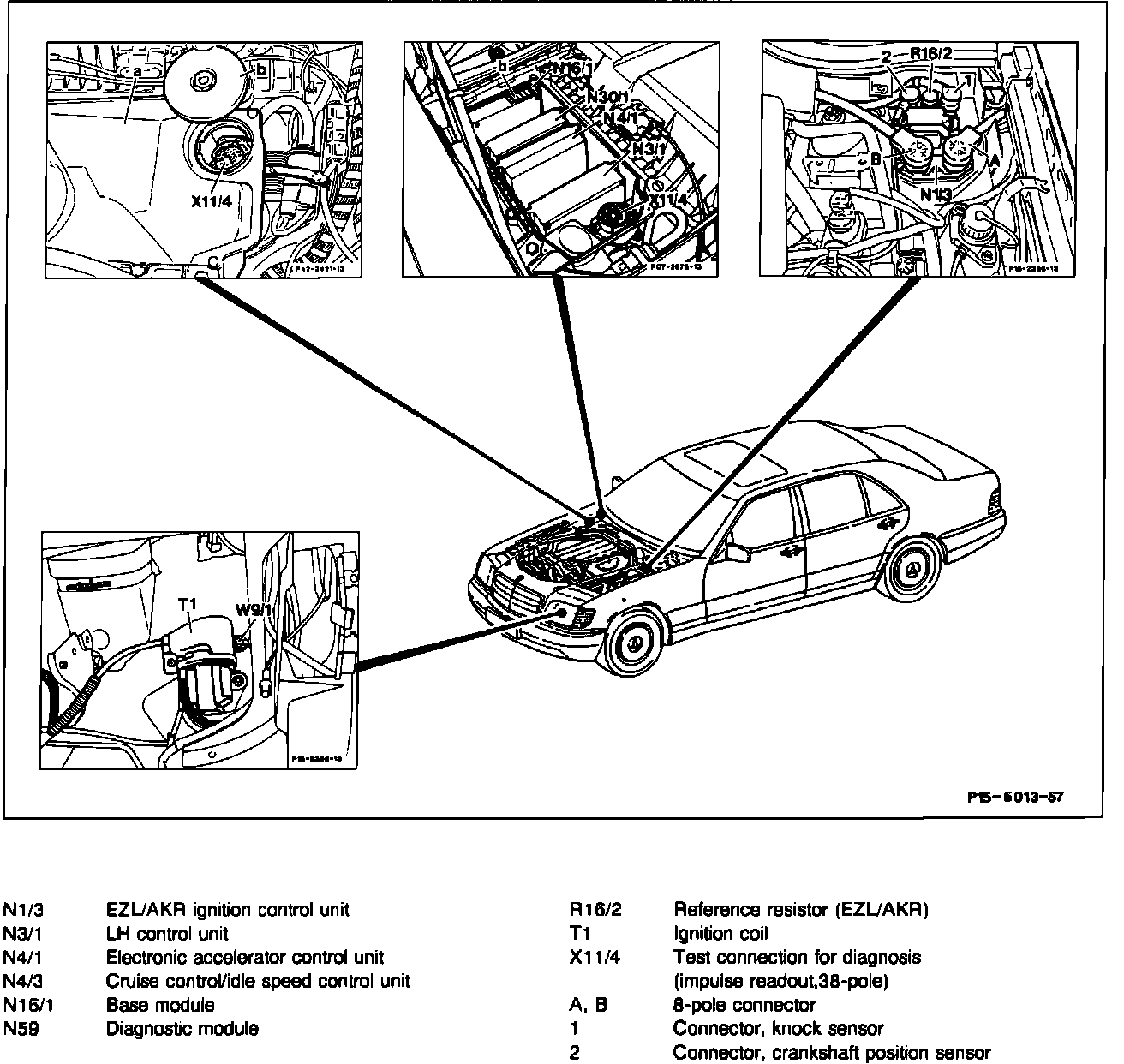

Component Locations:




EZL/AKR ignition control module N1/3
Intake manifold pressure sensor is located in the EZL/AKR ignition control module N1/3
