Distributor Ignition/Knock Sensor System (DI/KSS)
Distributor Ignition/Knock Sensor System (DI/KSS)

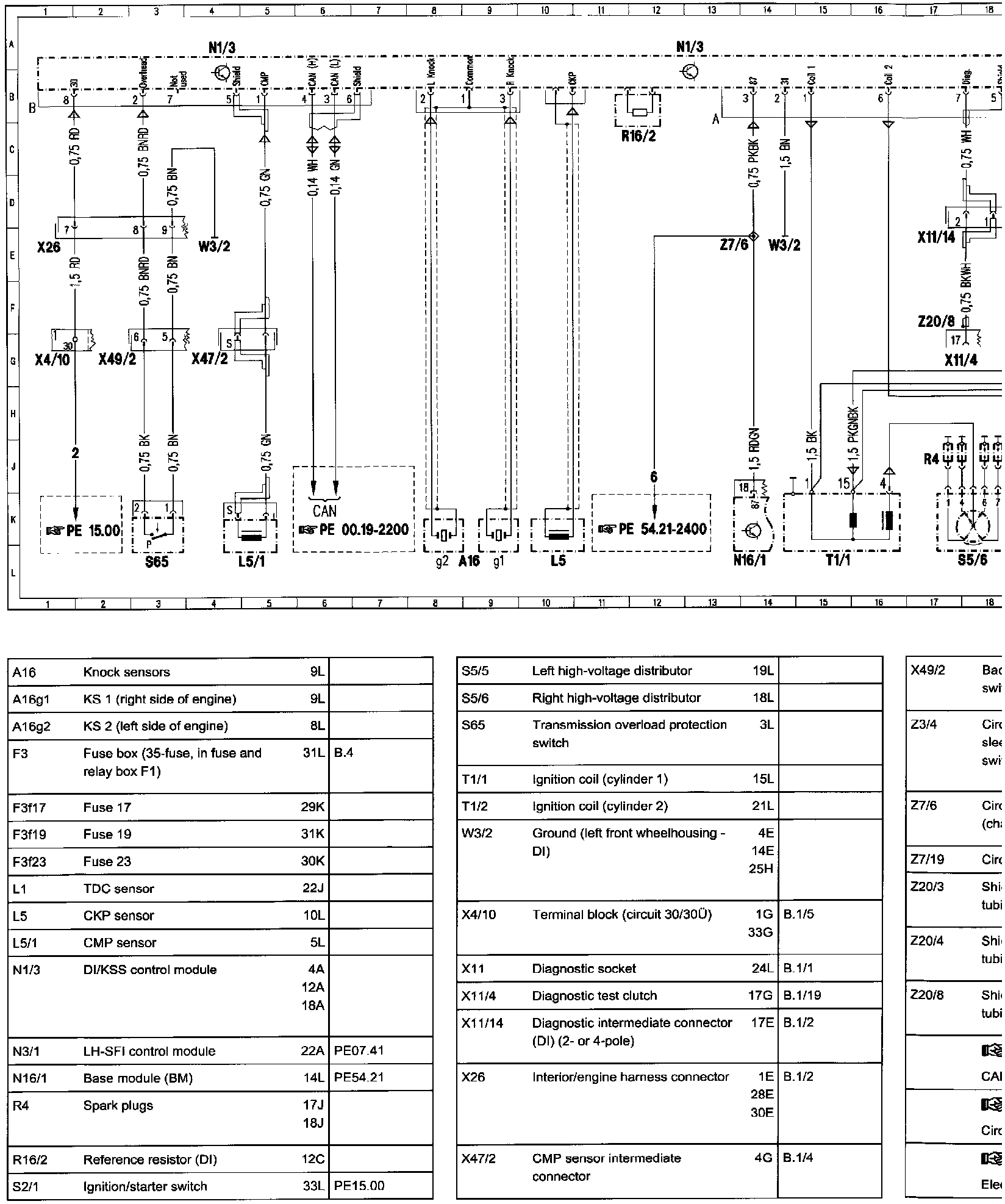

6� �D� PE15.12-U-2000-99XA - Distributor Ignition/Knock Sensor System (DI/KSS):
