Mercedes Benz
>>
1992
>>
400SE (140.042) V8-4.2L (119.971)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Central Power Supply
>>
Diagrams
>>

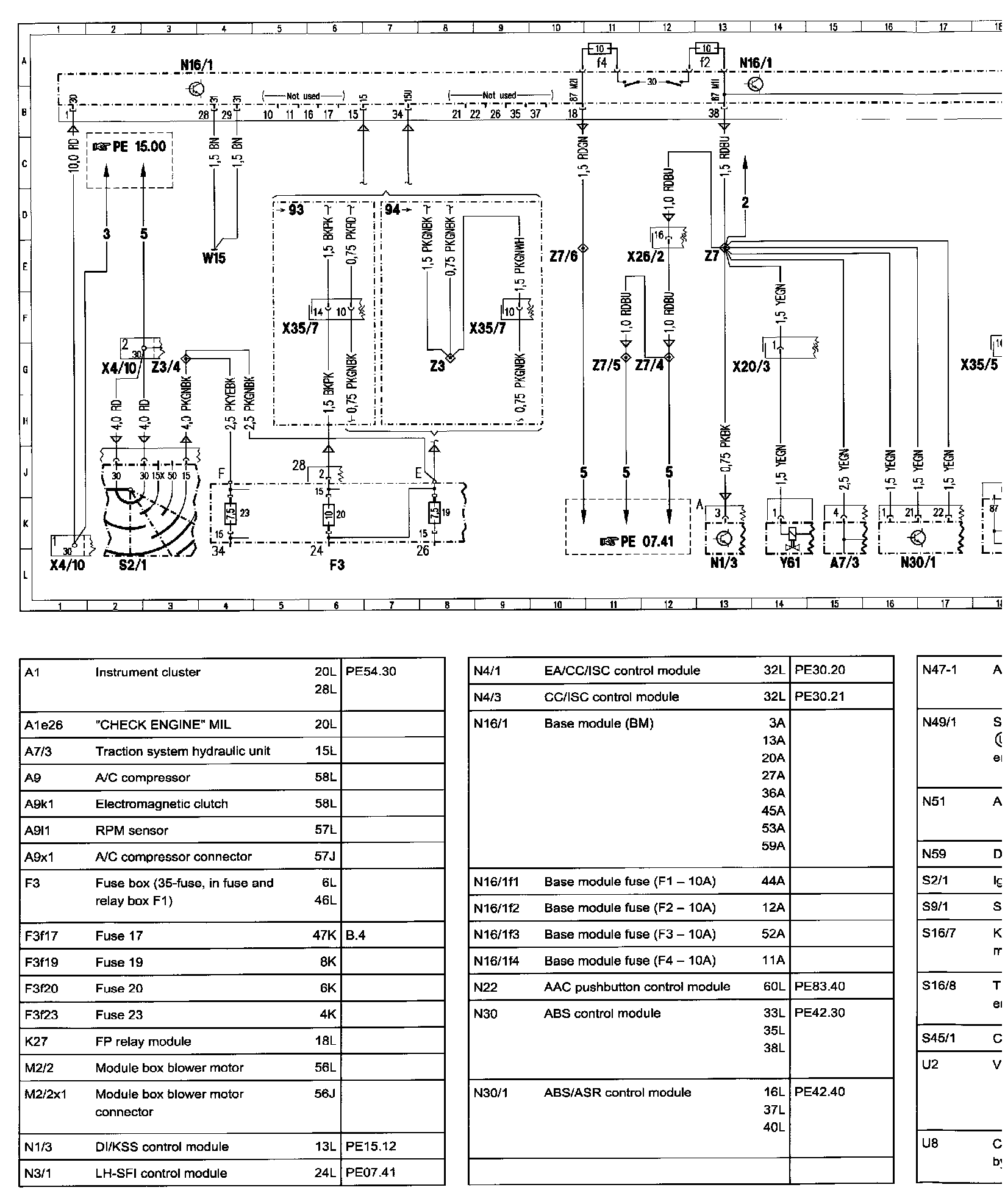

Electrical Diagrams
Electrical Diagrams
���=����PE54.21-U-2400-XB:
