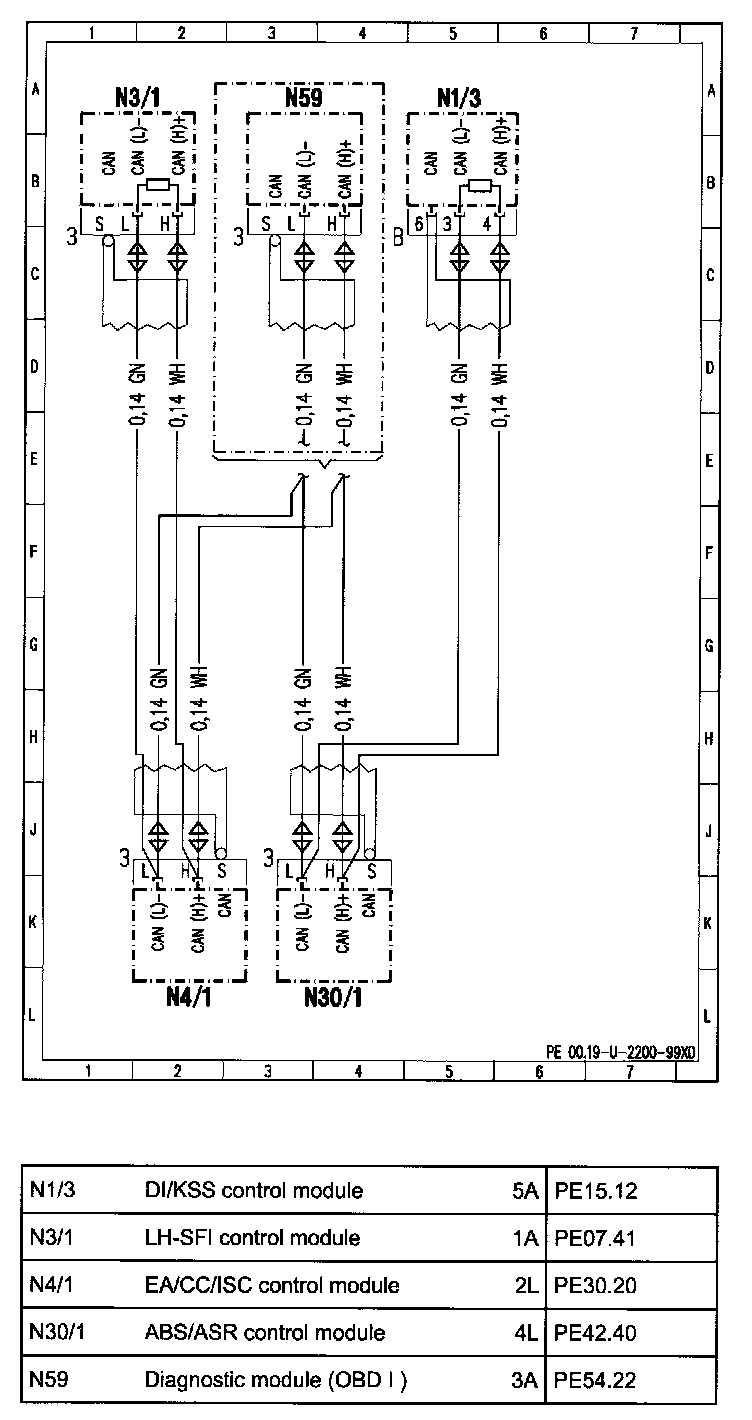

CAN Bus - Engine Compartment PE00.19-U-2200XD
CAN Bus - Engine Compartment PE00.19-U-2200XD
PE00.19-U-2200-XD - With AT 4, ASR:
