Transmission Mount: Service and Repair

- Open hood, raise to vertical position.
- Support transmission with a suitable device.

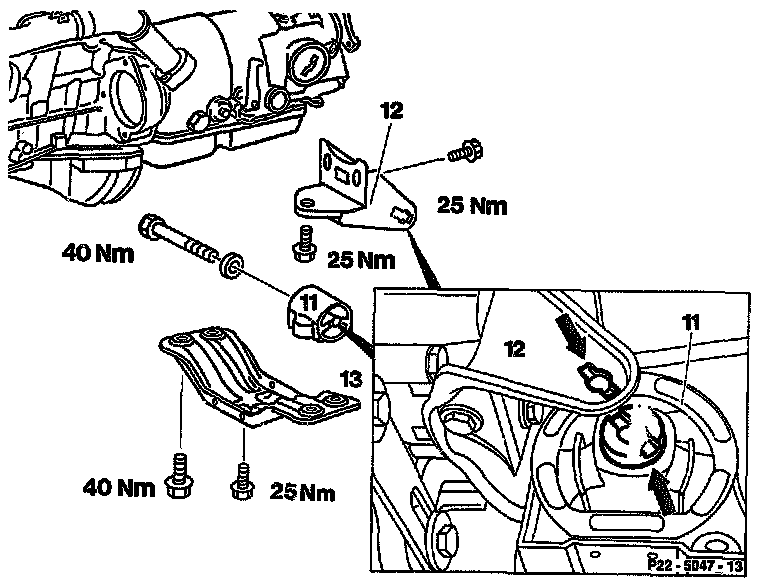

- Detach cable straps of electric cable of kickdown at engine carrier (13), attach.
- Remove engine carrier (13), install.
Tighten to:
M8: 25 Nm
M10: 40 Nm
- Remove engine mount (11), install
Tighten to: 40 Nm.

NOTE: The installation position is fixed by a slot (arrow) on the engine mount (11) and by a recess (arrow) on the mounting plate (12).
