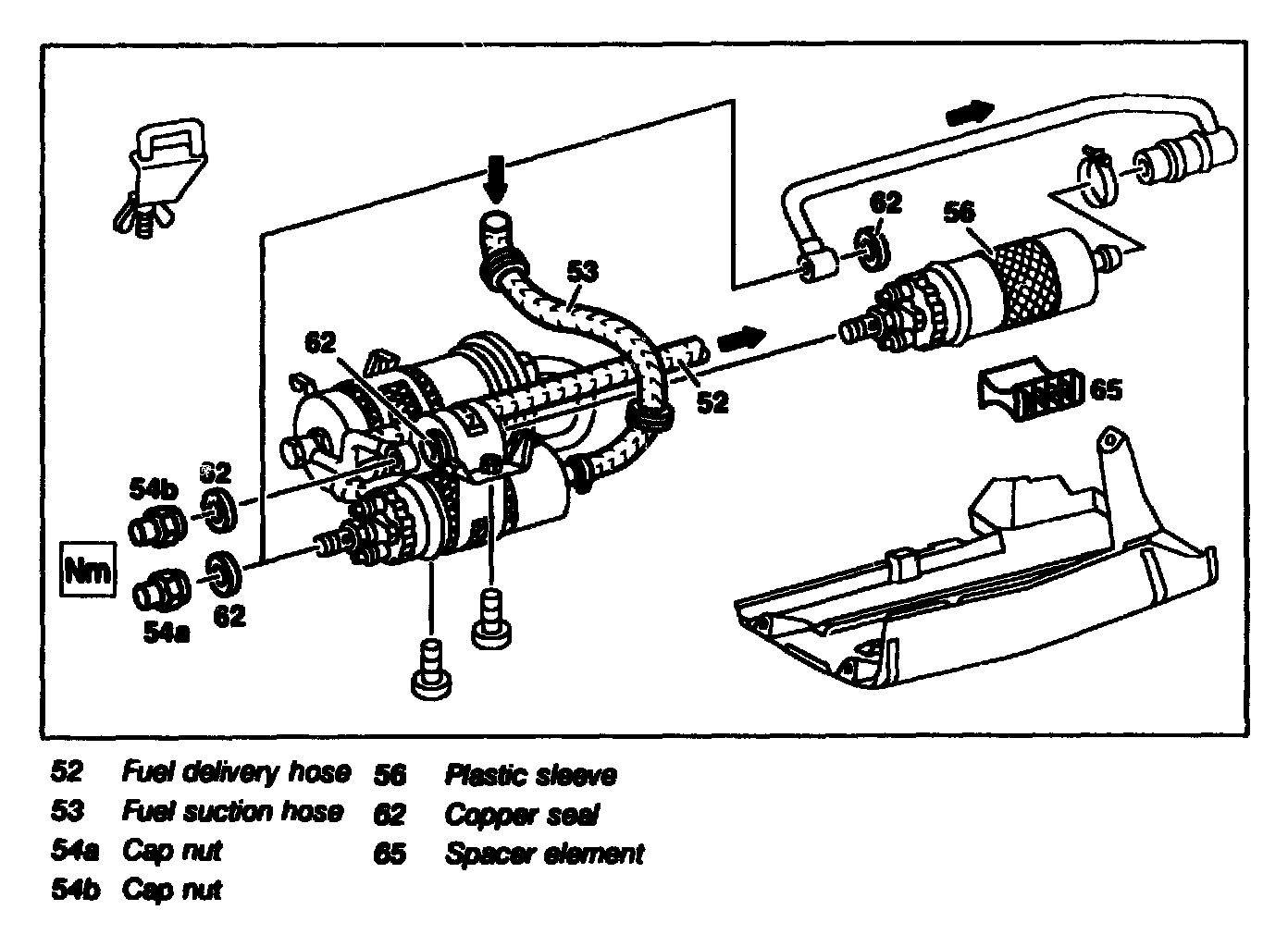

Remove/Install Fuel Pump








(Fuel pump positioning: in front of rear axle)

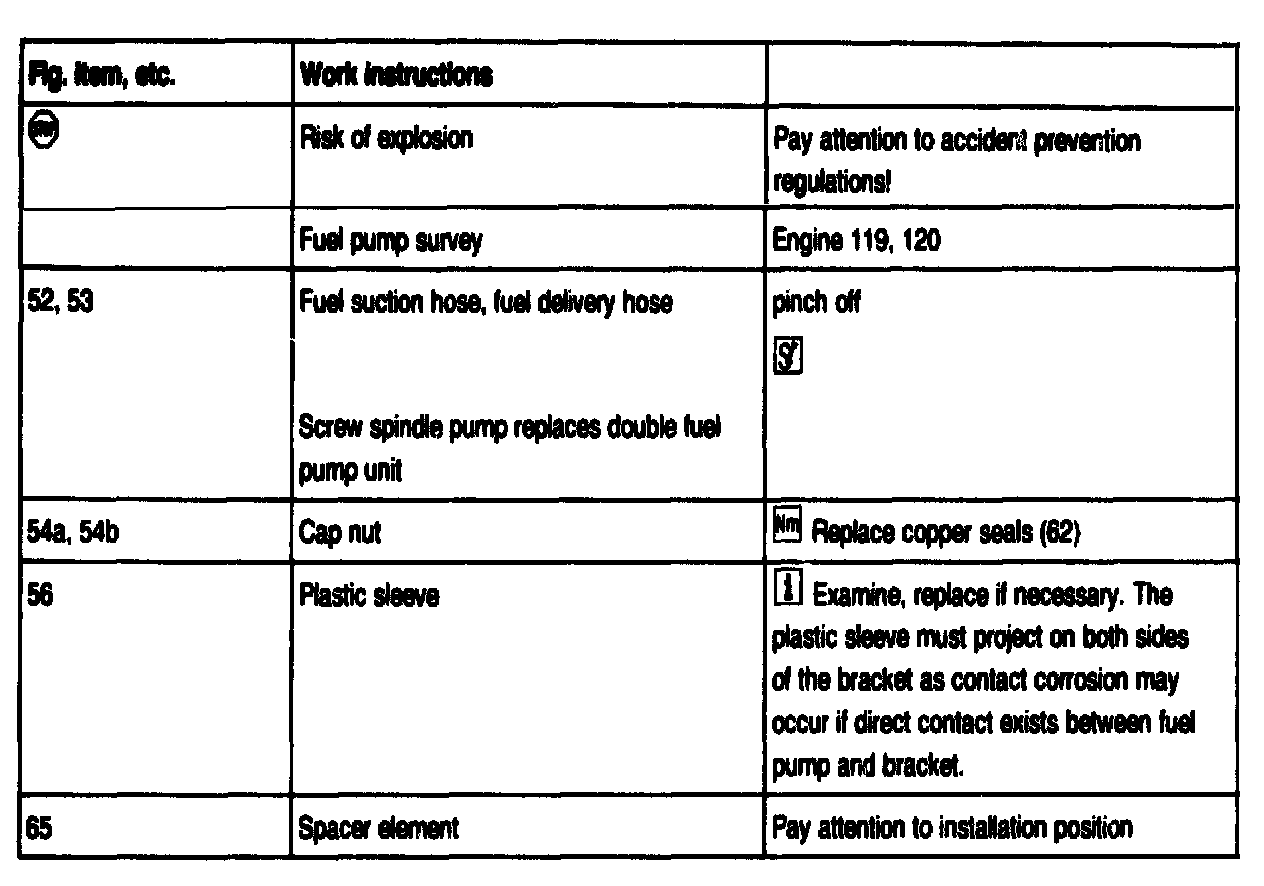

Work Instructions

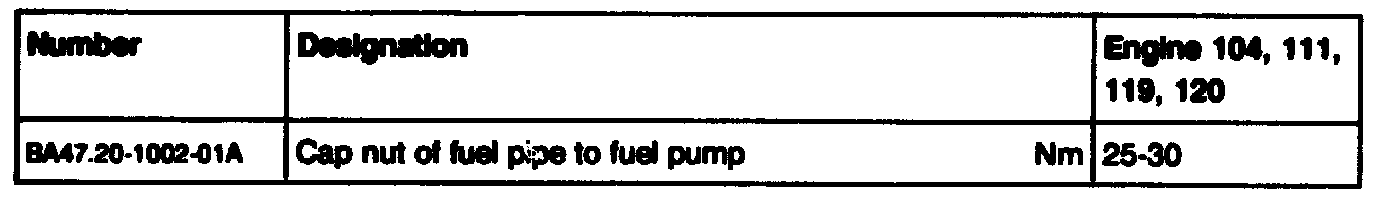

References (BA), Fuel pump

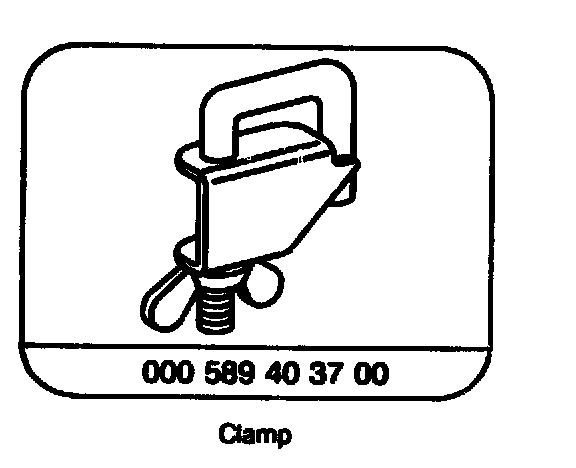

References, Special tools
