Curiosii for ever!: Car repair manuals for everyone.
Home >> Mercedes Benz >> 1992 >> 400E (124.034) V8-4.2L (119.975) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Intake Manifold >> Service and Repair >> Removing and Installing Intake Manifold

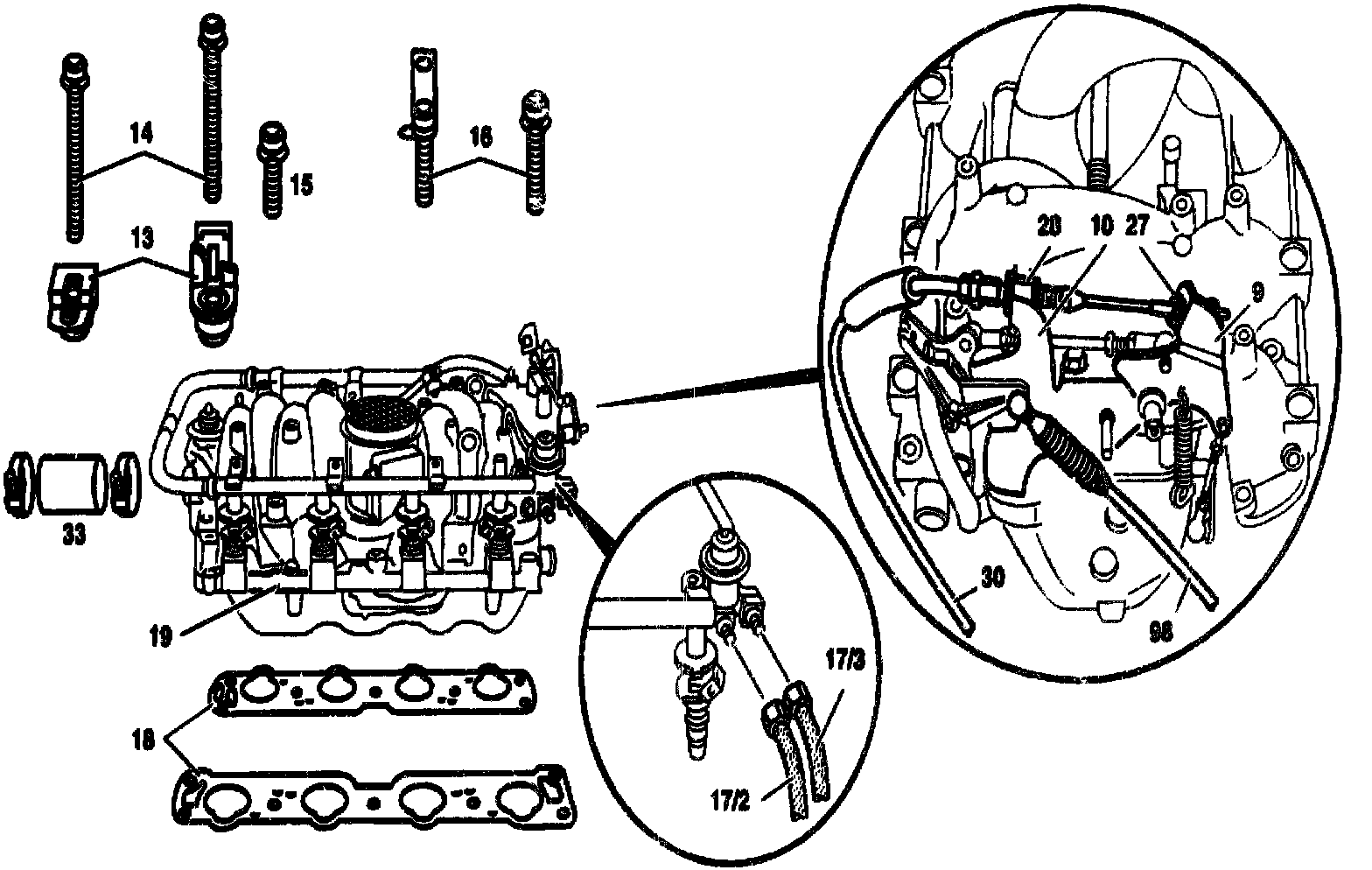

Removing and Installing Intake Manifold

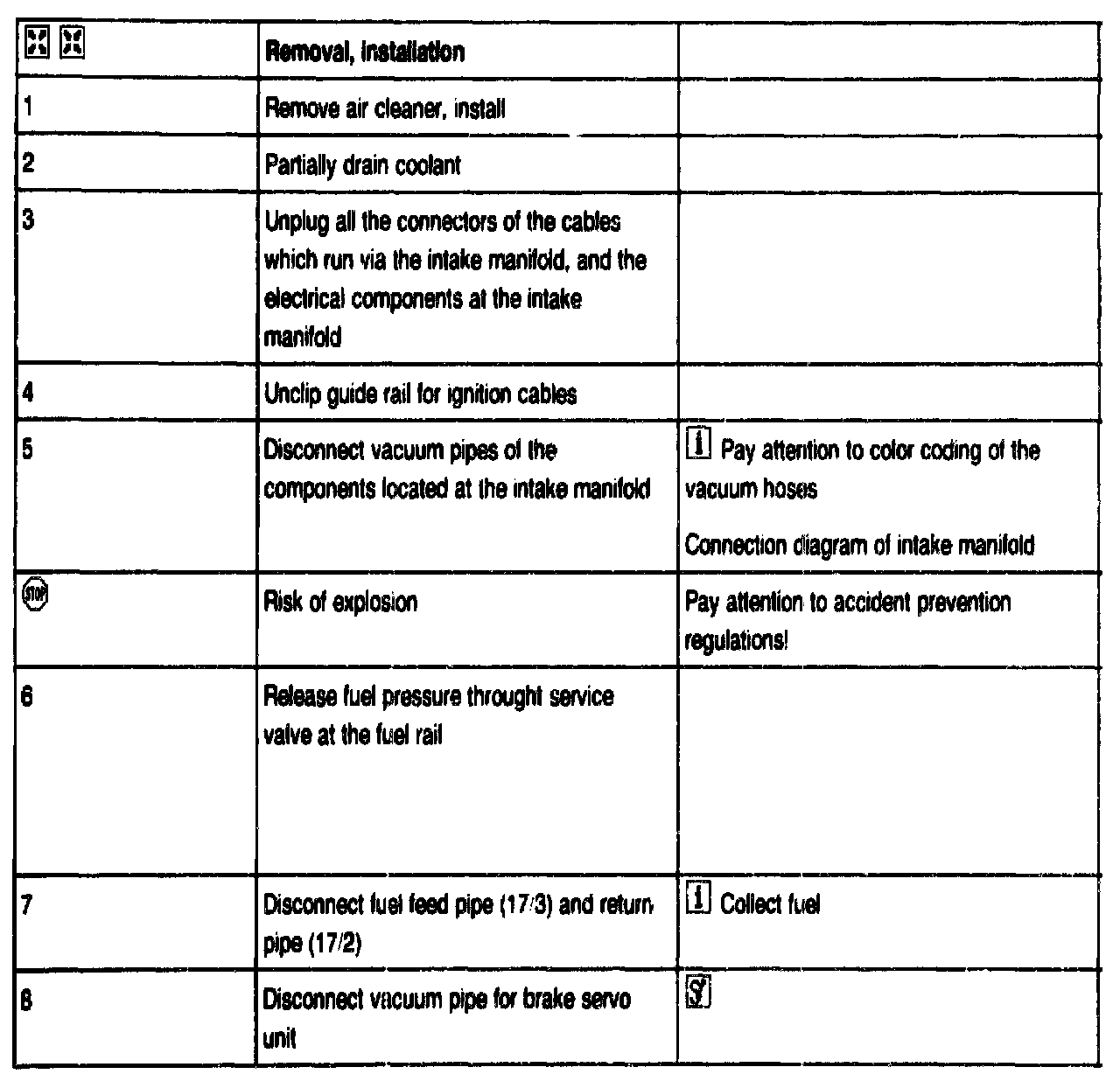

Removal, installation, Part 1 of 3

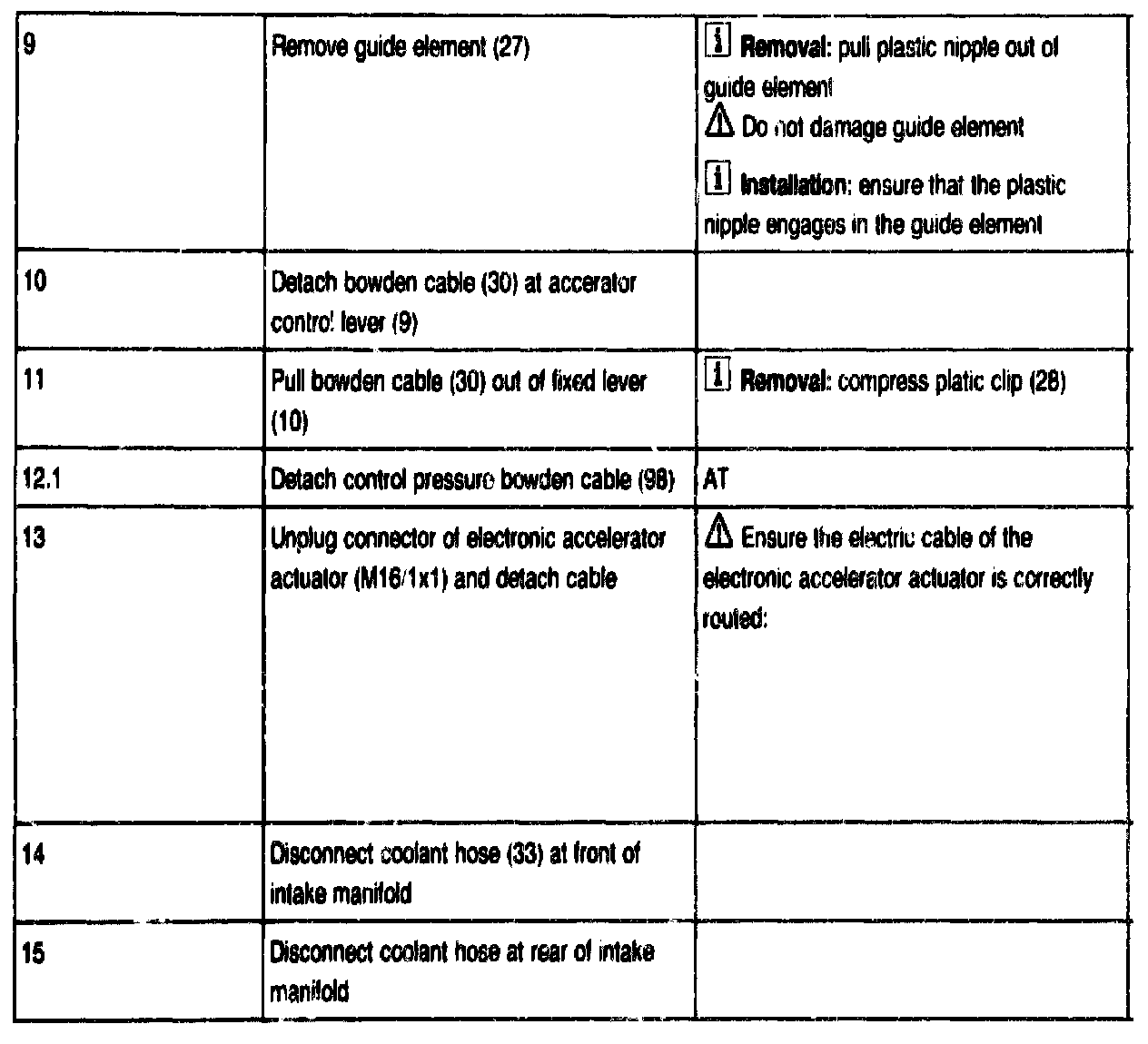

Removal, installation, Part 2 of 3

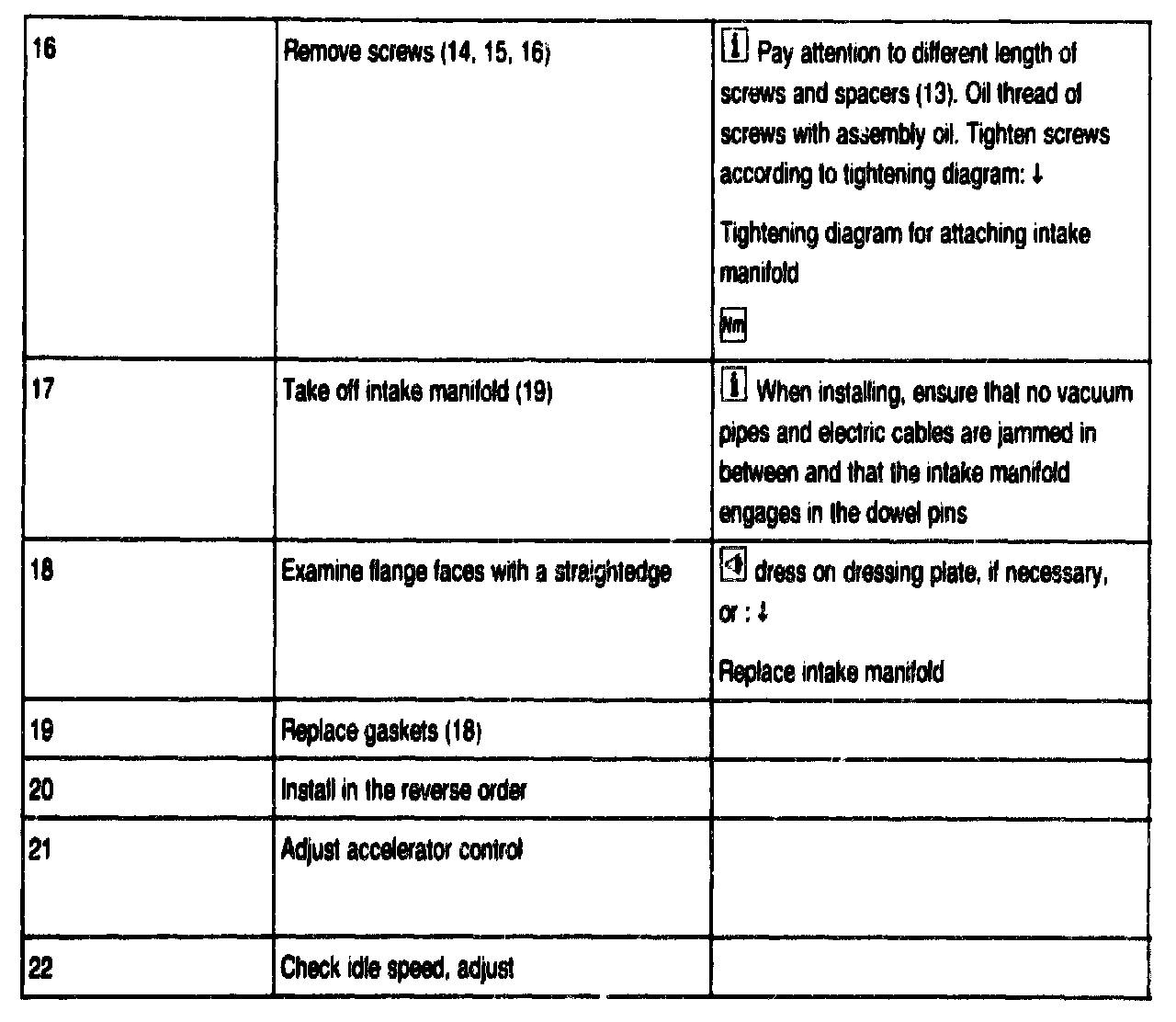

Removal, installation, Part 3 of 3

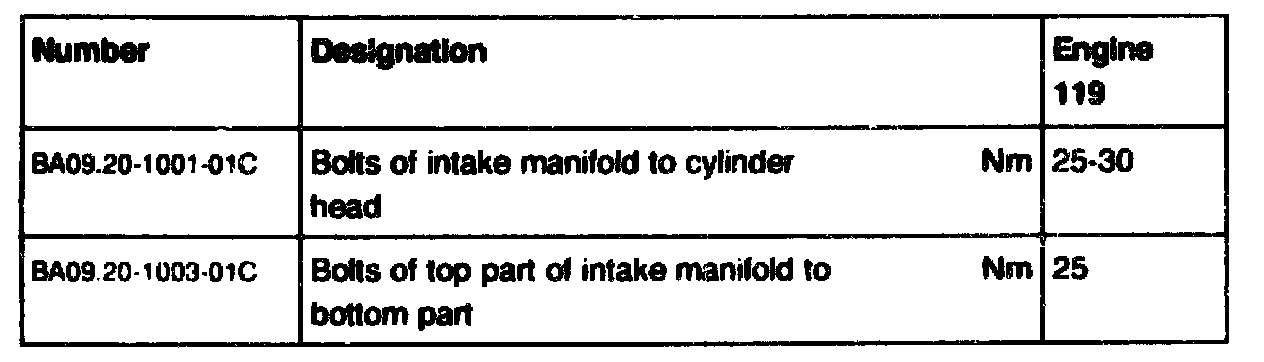

References (BA), Intake manifold

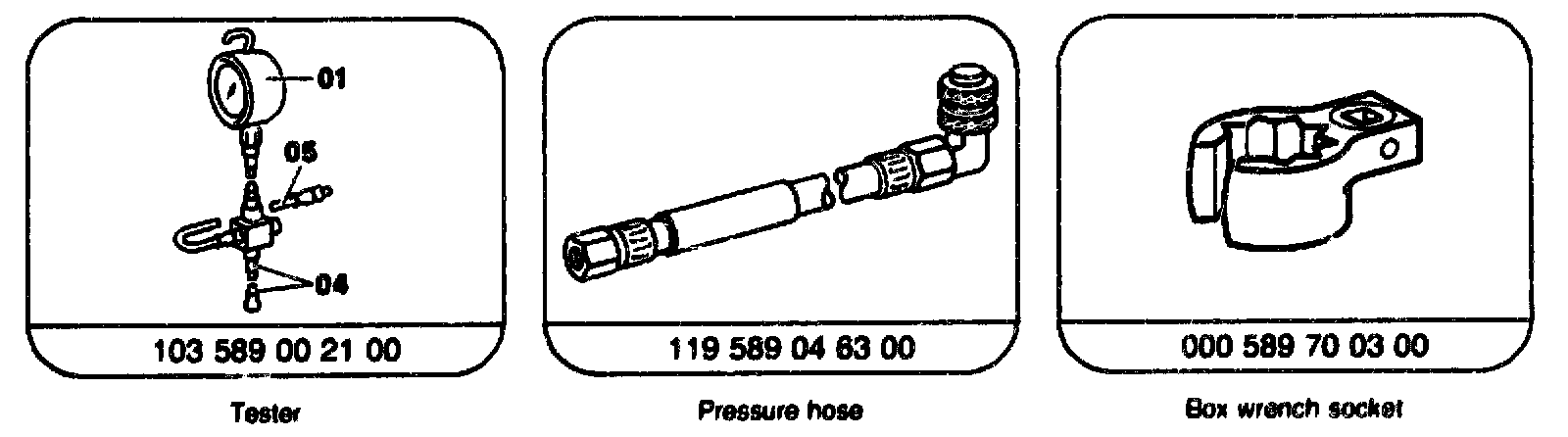

References, Special tools
